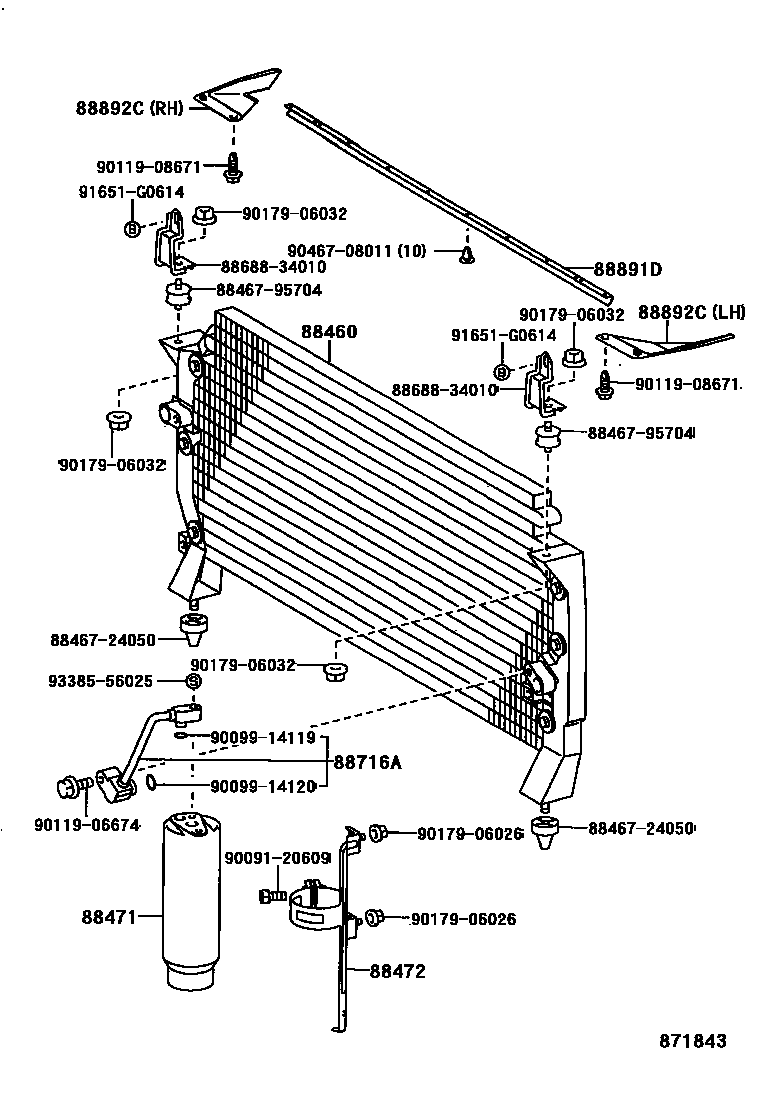

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPT 0002 1DEALER OPT 0003 1 0004 1 0005 1

88460CONDENSER ASSY, COOLER

main88460-34020iRCK10,VCK1#,2#199208

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iRCK10,VCK10,20..USA199401-199408

MAKER OPT

main88471-34010iRCK10,VCK10,20199208-199401

88472BRACKET, RECEIVER TANK, NO.1

main88472-34010iRCK10,VCK1#,2#199208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-34020iRCK10,VCK1#,2#199208

88891DPACKING D (FOR COOLER)

main53381-34010iVCK11,21..USA;RCK10,VCK10,20199208

88892CPLATE, CONDENSER, NO.1

main88892-34010iVCK10..USA199208-199408

MAKER OPTION,LH

main88892-34020iRCK10,VCK11199310-199508

RH

main88892-89114iVCK10..CND; VCK10..USA199208-199408

DEALER OPTION,LH; LH

main88892-89115iVCK10..CND; VCK10..USA199208-199408

DEALER OPTION,RH; RH

8846724050CUSHION, COOLER CONDENSER, NO.1

main88467-24050

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8868834010BRACKET, COOLER DIAPHRAGM

main88688-34010

9009120609

main90091-20609

9009914119

main90099-14119

9009914120

main90099-14120

9011906674

main90119-06674

9011908671

main90119-08671

9017906026

main90179-06026

9017906032

main90179-06032

9046708011

main90467-08011

91651G0614

main91651-G0614

9338556025

main93385-56025

19 parts on this diagram · 5 diagrams in section
