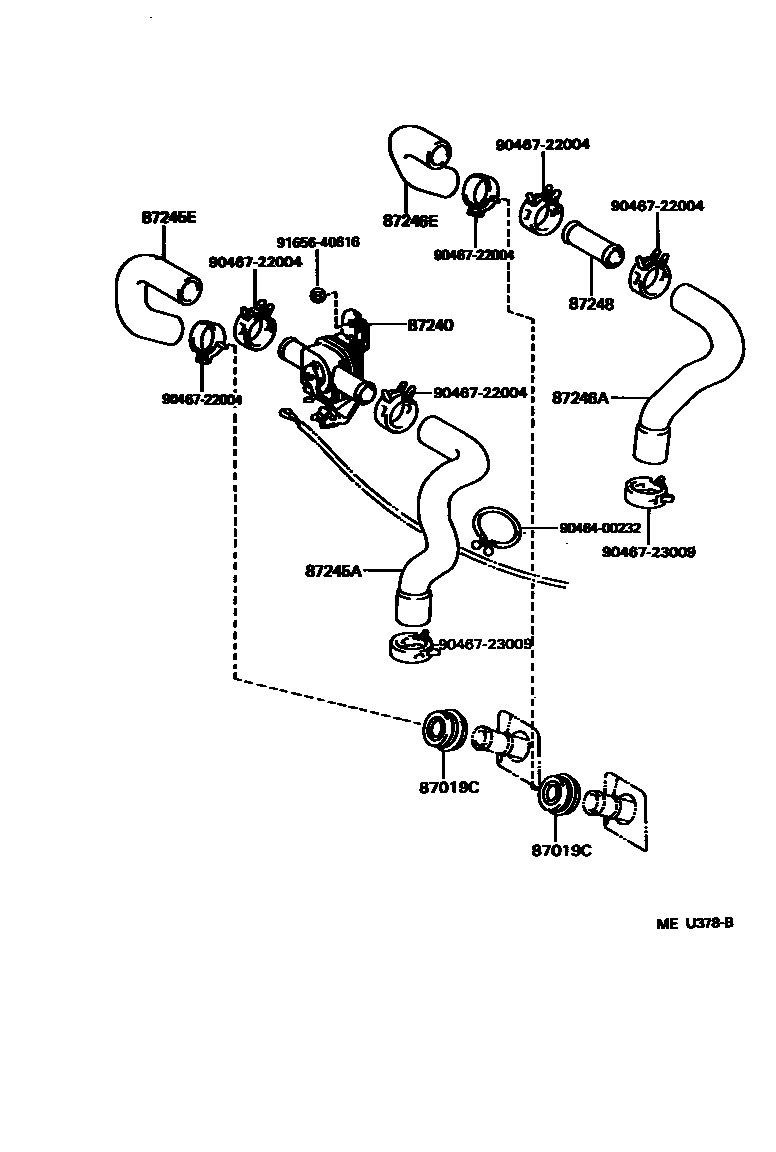

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90480-36005×2iRCK10,VCK1#,2#199208

87240VALVE ASSY, HEATER WATER

main87240-34010iRCK10,VCK1#,2#199208

87245AHOSE, HEATER WATER, INLET A

main87245-34010iVCK10,20199208-199408

main87245-34060iRCK10199310

main87245-34080iVCK11,21199408

87245EHOSE, HEATER WATER, INLET E

main87245-34040iRCK10,VCK10,20199208

main87245-34100iVCK11,21199408

87246AHOSE, HEATER WATER, OUTLET A

main87245-34020iVCK10,20199208-199408

main87245-34070iRCK10199310

main87245-34090iVCK11,21199408

87246EHOSE, HEATER WATER, OUTLET E

main87245-34030iVCK10,20199208-199408

main87245-34050iRCK10,VCK11,21199310

87248PIPE SUB-ASSY, WATER

main87248-14090iVCK10,20199208-199312

main87248-34010iRCK10,VCK11,21199310

main87265-35190iVCK10,20199312-199408

9046400232

main90464-00232

9046722004

main90467-22004

9046723009

main90467-23009

9165640616

main91656-40616

11 parts on this diagram · 3 diagrams in section
