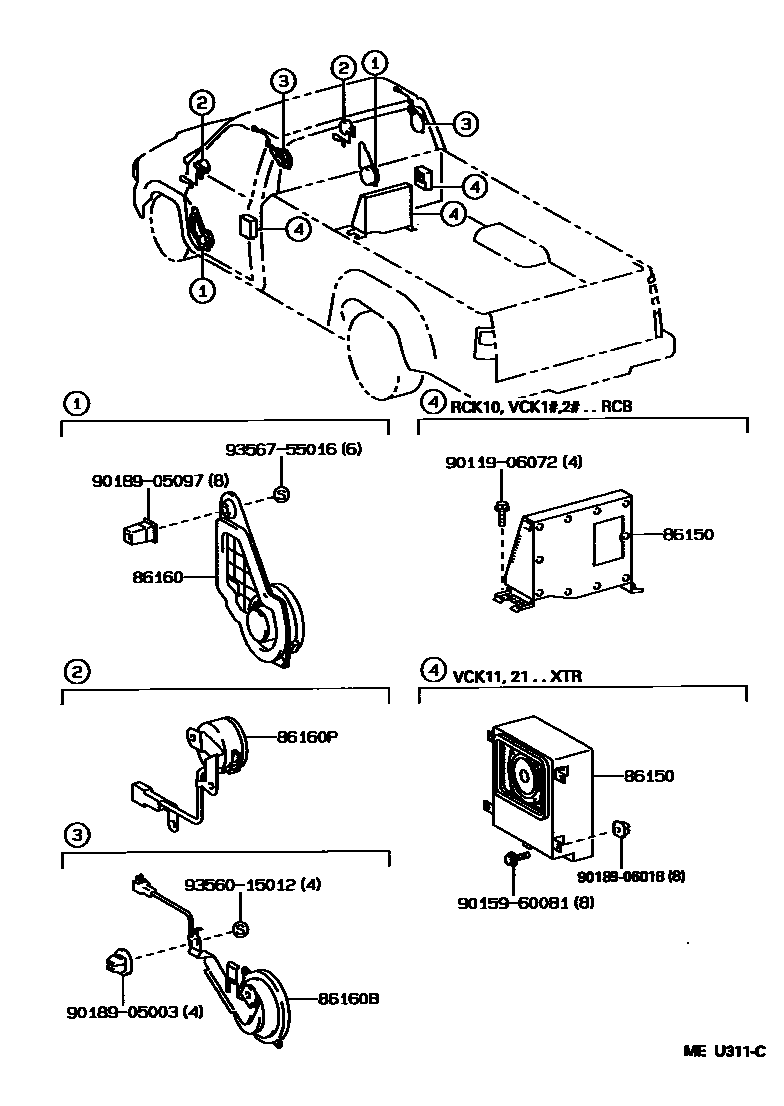

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-34010iRCK10,VCK1#,2#..RCB199208-199508

main86150-34020iVCK1#,2#..RCB..SR5199208-199508

7-SPEAKERS

main86150-34030×2iVCK11,21..XTR199410-199608

main86150-34040×2iVCK11,21..XTR199608

86160SPEAKER ASSY, FRONT NO.1

main86160-34030iRCK10,VCK1#,2#199208-199608

RH

main86160-34040iRCK10,VCK1#,2#199208-199608

LH

main86160-34070iRCK10,VCK11,21199608

RH

main86160-34080iRCK10,VCK11,21199608

LH

86160BSPEAKER ASSY, REAR

main86160-34050iVCK1#,2#..RCB..SR5199208-199508

RH

main86160-34060iVCK1#,2#..RCB..SR5199208-199508

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-34010iVCK1#,2#..SR5199208-199608

RH

main86160-34020iVCK1#,2#..SR5199208-199608

LH

main86160-34090iVCK11,21..SR5199608-199708

RH

main86160-34100iVCK11,21..XTR199708

LH

9011906072

main90119-06072

9015960081

main90159-60081

9018905003

main90189-05003

9018905097

main90189-05097

9018906018

main90189-06018

9356015012

main93560-15012

9356755016

main93567-55016

11 parts on this diagram · 1 diagram in section
