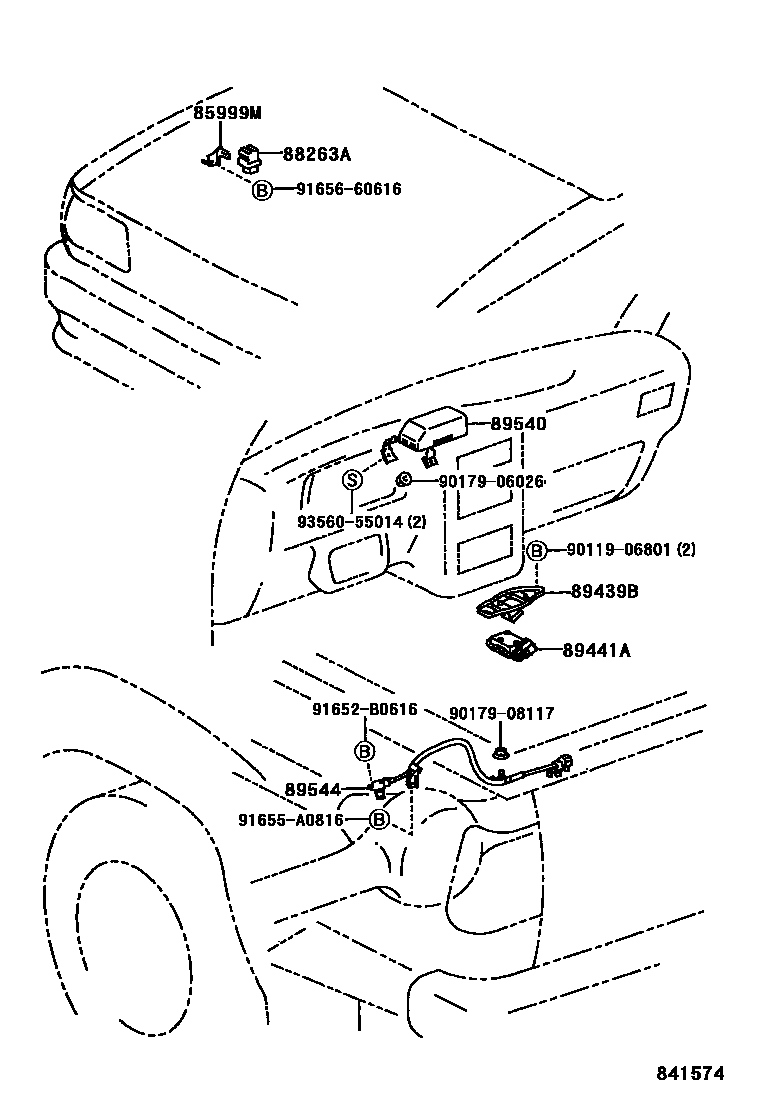

ABS & VSC

0001 1 0002 1 0003 14WD

85999MBRACKET, RELAY

main85999-34010iVCK10,20199208-199408

main85999-34030iVCK11,21199408

88263ARELAY, SKID CONTROL

main88263-12070iVCK11,21199408-199604

sub88263-12080

main88263-35070iRCK10,VCK10,20199208-199408

main88263-35090iVCK11,21199604

89439BBRACKET, SENSOR

main89439-34010iVCK10,20199208-199408

89441ASENSOR, DECELERATION

main89440-34020iVCK21199408

main89441-12020iVCK10,20199208-199408

89540COMPUTER ASSY, SKID CONTROL

main89540-34010iRCK10,VCK10,20199208-199408

main89540-34020iVCK11199408-199608

main89540-34021iVCK11199608

main89540-34030iVCK21..RCB199408-199508

sub89540-34031

main89540-34031iVCK21..RCB199508-199608

main89540-34032iVCK21..RCB199608

main89540-34040iVCK21..XTR199410-199508

sub89540-34042

main89540-34042iVCK21..XTR199508-199608

main89540-34043iVCK21..XTR199608

89544SENSOR, SKID CONTROL

main89544-34010iVCK10,20199208-199408

9011906801

main90119-06801

9017906026

main90179-06026

9017908117

main90179-08117

91652B0616

main91652-B0616

91655A0816

main91655-A0816

9165660616

main91656-60616

9356055014

main93560-55014

13 parts on this diagram · 3 diagrams in section
