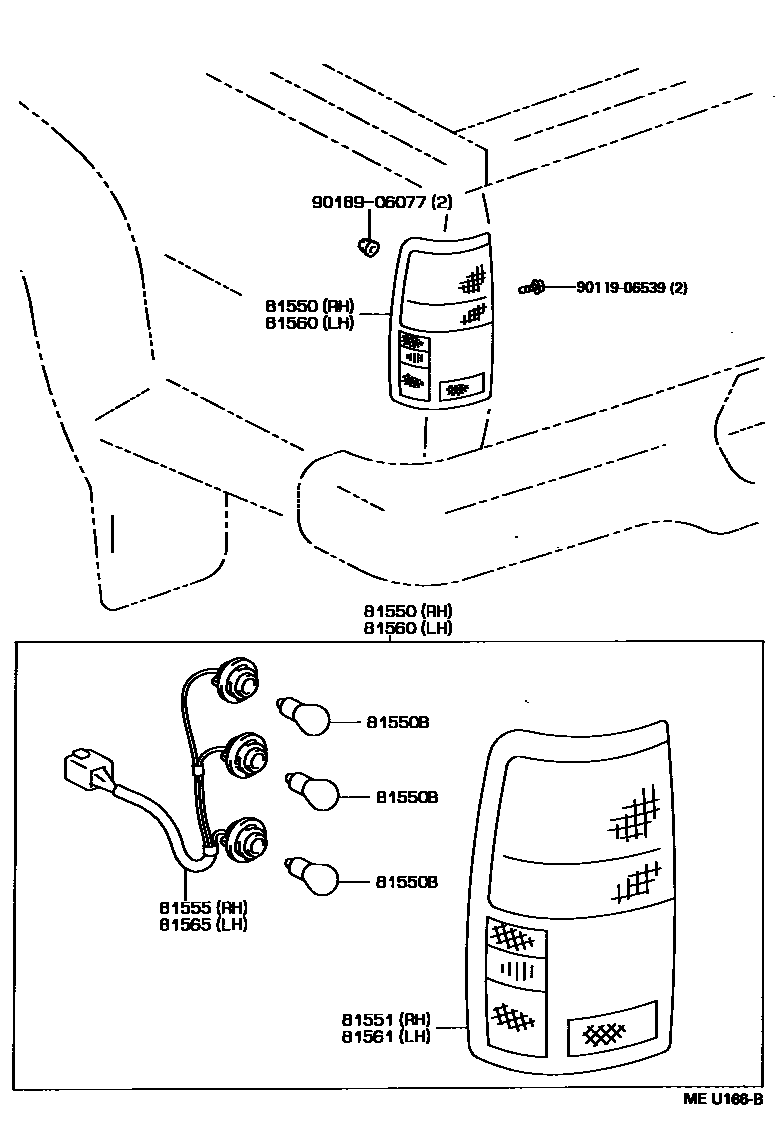

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-34010iRCK10,VCK1#,2#199208

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270×4iRCK10,VCK1#,2#199208

12V 27W

main99132-21270×2iRCK10,VCK1#,2#199208

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-34010iRCK10,VCK1#,2#199208

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-34010iRCK10,VCK1#,2#199208

81560LAMP ASSY, REAR COMBINATION, LH

main81560-34010iRCK10,VCK1#,2#199208

81561LENS, REAR COMBINATION LAMP, LH

main81561-34010iRCK10,VCK1#,2#199208

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-34010iRCK10,VCK1#,2#199208

9011906539

main90119-06539

9018906077

main90189-06077

9 parts on this diagram · 1 diagram in section
