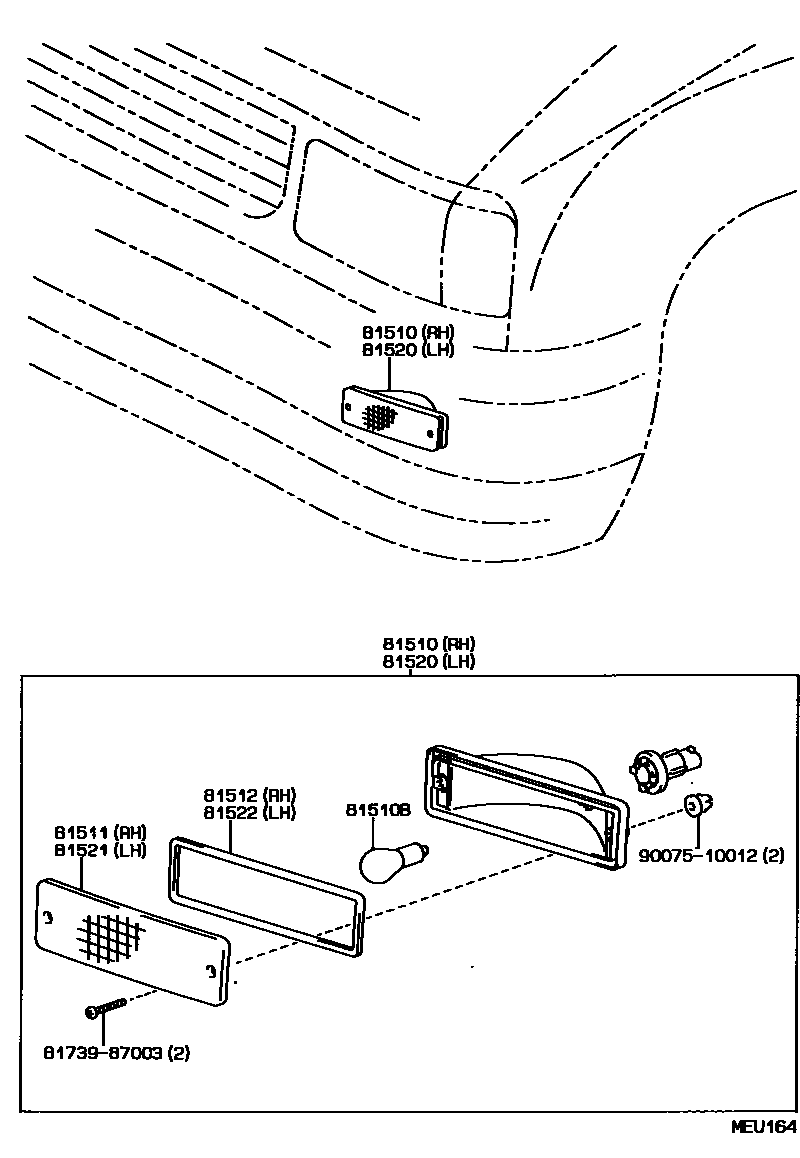

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-34010iRCK10,VCK1#,2#199208

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iRCK10,VCK1#,2#199208

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-34010iRCK10,VCK1#,2#199208

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-89133iRCK10,VCK1#,2#199208

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-34010iRCK10,VCK1#,2#199208

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-34010iRCK10,VCK1#,2#199208

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-89133iRCK10,VCK1#,2#199208

8173987003

main81739-87003

9007510012

main90075-10012

9 parts on this diagram · 1 diagram in section
