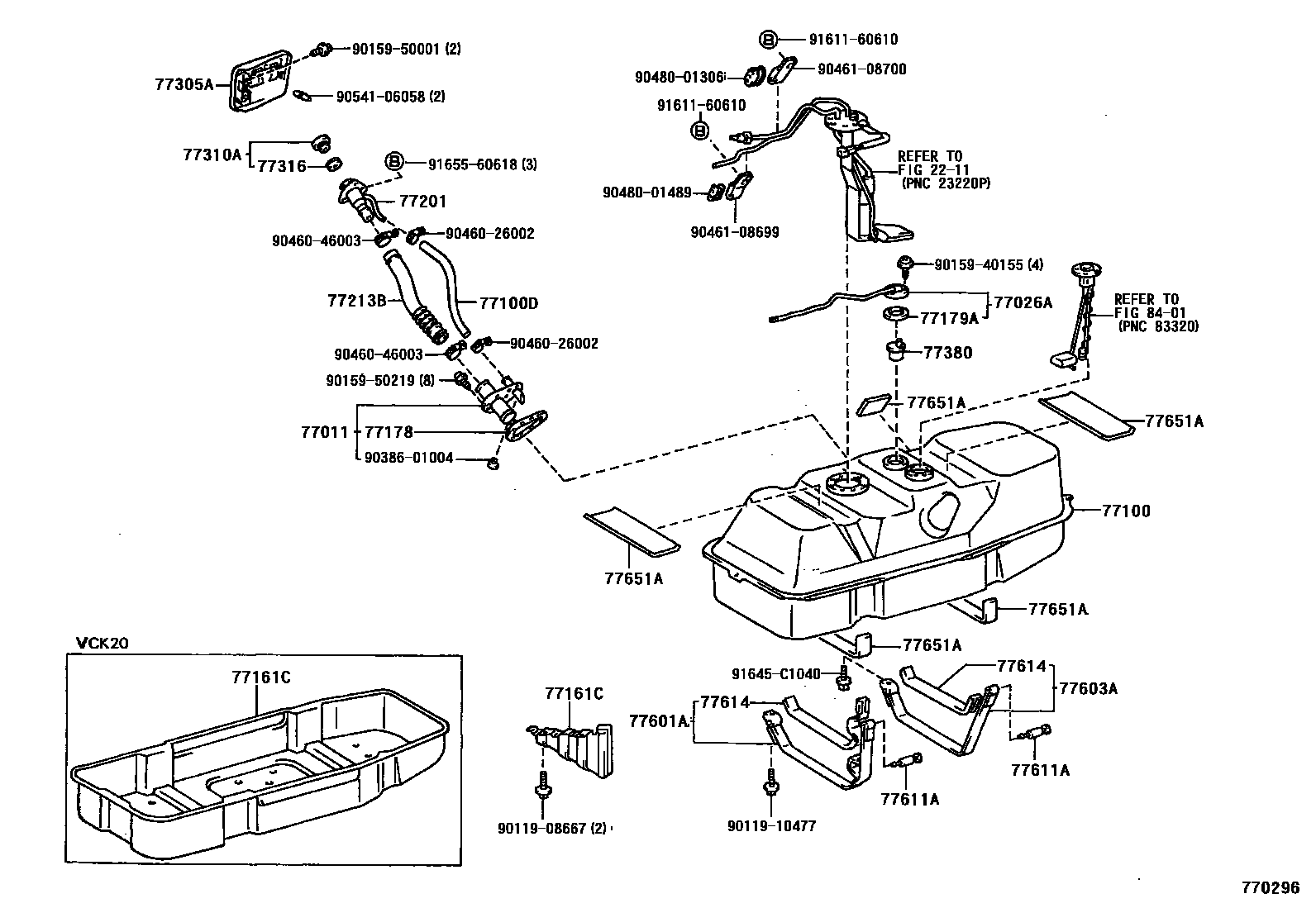

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-34010iVCK10,20199208-199408

main77011-34020iRCK10,VCK11,21199310

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-34010iVCK10,20199208-199212

main77026-34011iVCK10,20199212-199408

main77026-34020iRCK10199310-199408

main77026-34030iRCK10,VCK11,21199408-199603

main77026-34031iRCK10,VCK11,21199603

77100TANK ASSY, FUEL

main77001-34010iVCK10,20199208-199408

main77001-34020iRCK10199310-199408

main77001-34040iRCK10,VCK11,21199408-199603

main77001-34041iRCK10,VCK11,21199603-199608

main77001-34042iRCK10,VCK11,21199608

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77259-34030iRCK10,VCK11,21199608

L=270

main90445-24041iRCK10,VCK1#,2#199208-199608

L=270

77161CPROTECTOR, FUEL TANK, LOWER

main77161-34010iVCK10199208-199408

main77161-34020iRCK10,VCK11,2#199208

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-34010iRCK10,VCK1#,2#199208

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iRCK10,VCK1#,2#199208

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-34010iVCK10,20199208-199408

main77201-34020iRCK10199310-199408

main77201-34021iRCK10,VCK11,21..RCB199408-199608

main77201-34022iRCK10,VCK11,21..RCB199608

main77201-34040iVCK11,21..XTR199410-199608

main77201-34041iVCK11,21..XTR199608

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-34010iRCK10,VCK1#199208-199608

L=280

main77213-34020iVCK2#199208-199608

L=310

main77213-34030iRCK10,VCK11199608

L=301.5

main77213-34040iVCK21199608

L=284.4

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-34010iVCK10,20199208-199408

main77305-34020iRCK10199310-199406

main77305-34030iRCK10,VCK11,21..RCB199406

main77305-34040iVCK11,21..XTR199410

77310ACAP ASSY, FUEL TANK

main77310-35080iRCK10,VCK1#,2#199208-199803

main77310-48020iRCK10,VCK11,21199803

77316GASKET, FUEL TANK CAP

main77316-16010iRCK10,VCK1#,2#199208

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iRCK10,VCK1#,2#199208

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-34010iVCK10199208-199408

main77601-34020iRCK10,VCK11,2#199208

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-34010iVCK10199208-199408

main77603-34020iRCK10,VCK11,2#199208

77611APIN (FOR FUEL TANK BAND)

main77653-34010×4iRCK10,VCK1#,2#199208

77614SEAT, FUEL TANK BAND

main77681-34010iRCK10,VCK1#,2#199208

FR

main77681-34020iRCK10,VCK1#,2#199208

RR

77651ACUSHION, FUEL TANK, NO.1

main77651-34010×2iVCK10,20199208-199408

L=240

main77651-34011iRCK10,VCK11,21199805

70X385

main77651-34020×2iRCK10,VCK11,21199310

70X45

main77651-34021iRCK10,VCK11,21199805

70X370

main77651-34030iRCK10,VCK11,21199310

45X425

main77651-34040iRCK10,VCK11,21199310

45X490

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908667

main90119-08667

9011910477

main90119-10477

9015940155

main90159-40155

9015950001

main90159-50001

9015950219

main90159-50219

9038601004

main90386-01004

9046026002

main90460-26002

9046046003

main90460-46003

9046108699

main90461-08699

9046108700

main90461-08700

9048001306

main90480-01306

9048001489

main90480-01489

9054106058

main90541-06058

9161160610

main91611-60610

91645C1040

main91645-C1040

9165560618

main91655-60618
