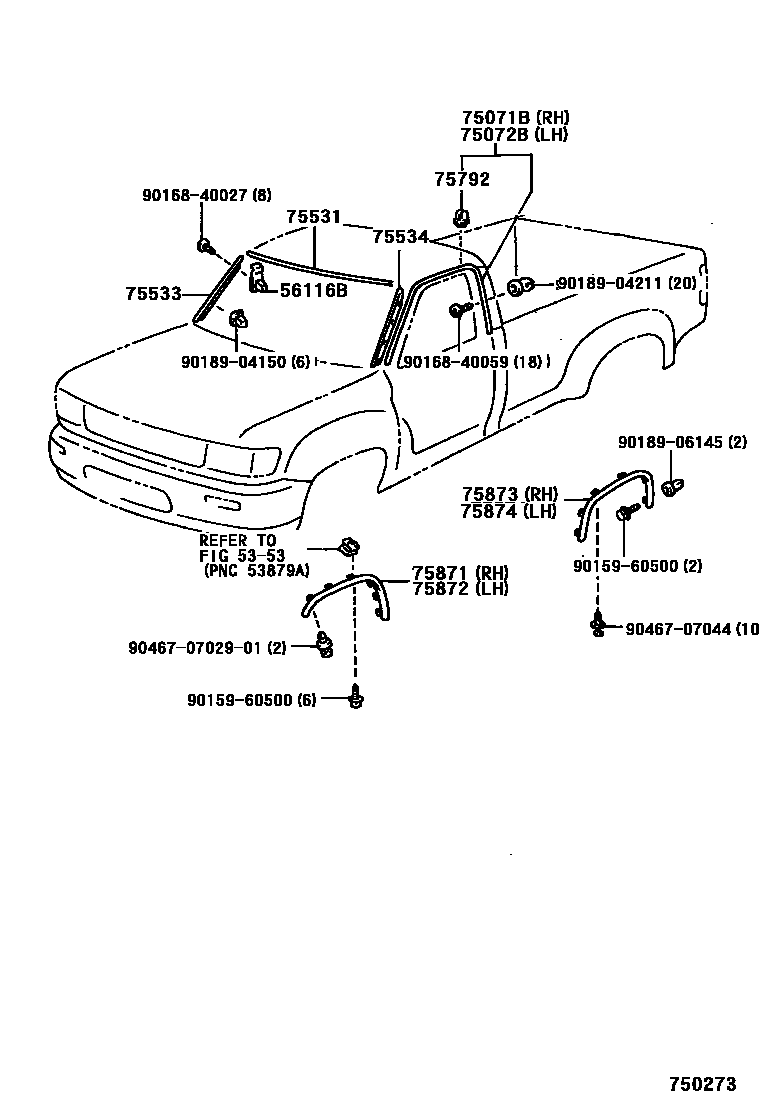

MOULDING

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

56116BSPACER, WINDSHIELD GLASS

main56116-34010×2iRCK10,VCK1#,2#199208

75071BMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE UPPER RH

main75071-34010iRCK10,VCK1#,2#199208

75072BMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE UPPER LH

main75072-34010iRCK10,VCK1#,2#199208

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-34010iRCK10,VCK10,20199308-199312

main75531-34011iRCK10,VCK1#,2#199312-199501

main75531-34012iRCK10,VCK11,21199501

main75531-34020iVCK10,20..SR5; VCK10,20..STD199208-199308

W(PLATING)

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-34010iRCK10,VCK1#,2#199308

main75533-34020iVCK10,20..SR5; VCK10,20..STD199208-199308

W(PLATING)

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-34010iVCK10,20..STD199208-199308

main75534-34020iVCK10,20..SR5; VCK10,20..STD199208-199308

W(PLATING)

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-34010×2iRCK10,VCK1#,2#199208

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-34010iVCK1#..SR5..USA; VCK2#..SR5;VCK10..SR5..CND199208-199608

W(PLATING)

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-34010iVCK1#..SR5..USA; VCK2#..SR5;VCK10..SR5..CND199208-199608

W(PLATING)

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-34010iVCK1#,2#..SR5199208-199608

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-34010iVCK1#,2#..SR5199208-199608

9015960500

main90159-60500

9016840027

main90168-40027

9016840059

main90168-40059

9018904150

main90189-04150

9018904211

main90189-04211

9018906145

main90189-06145

904670702901

main90467-0702901

9046707044

main90467-07044

20 parts on this diagram · 1 diagram in section
