BATTERY CARRIER

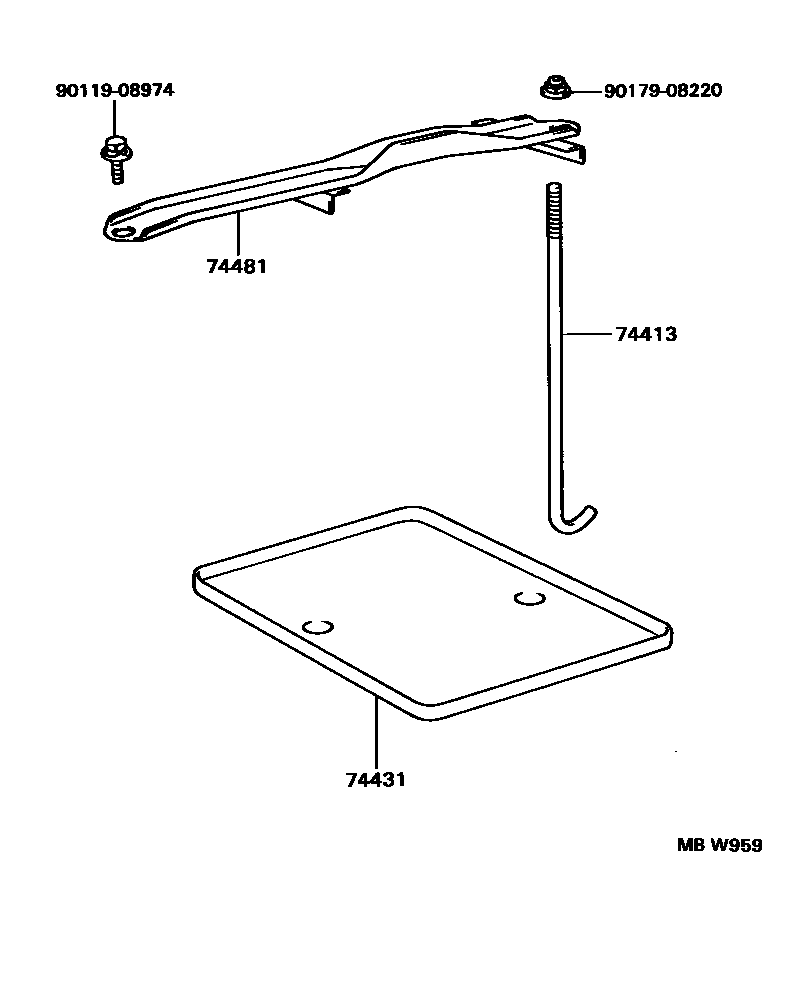

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-35040i199208-199403

main74451-35050i199403

74431TRAY, BATTERY

main74431-03010i199508

main74431-14030i199208-199408

COLD AREA

main74431-89107i199208-199408

74481CLAMP, BATTERY HOLD DOWN

main74404-34010i199208

9011908974

main90119-08974

9017908220

main90179-08220

5 parts on this diagram · 1 diagram in section
