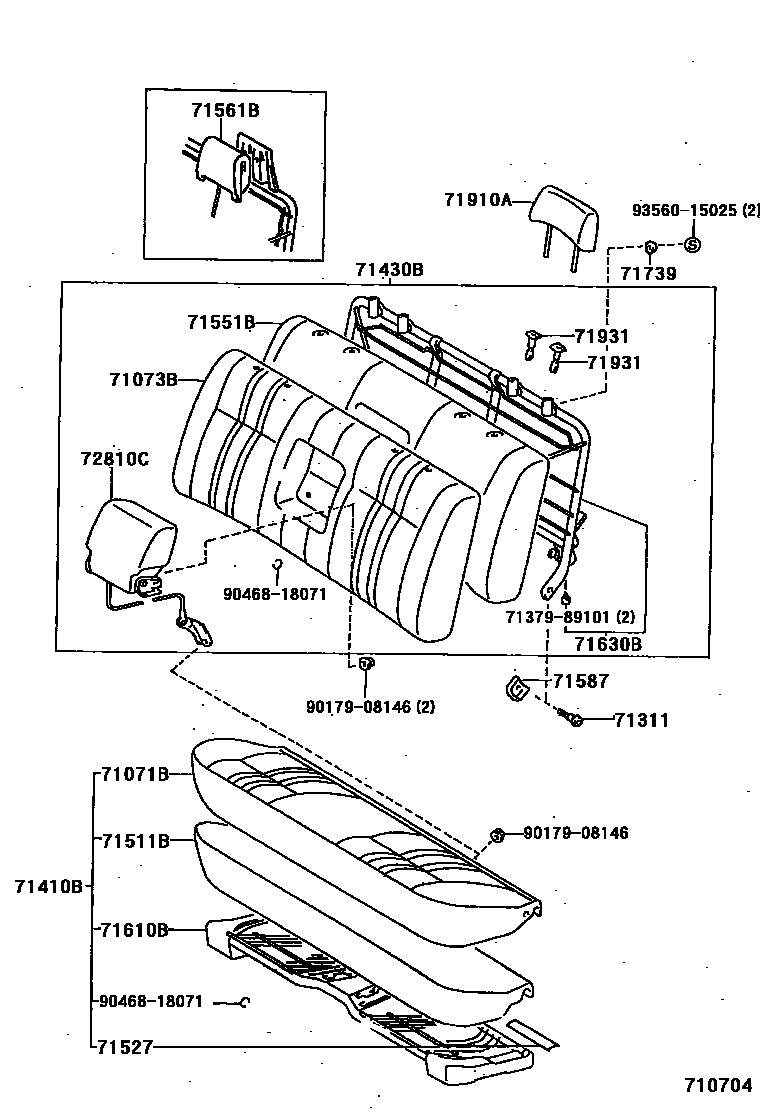

SEAT & SEAT TRACK

0001 1BENCH SEAT 0002 1SPLIT SEAT 0003 1SEPARATE SEAT 0004 1 0005 1SEPARATE SEAT 0006 1REAR JUMP SEAT

71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71071-34010-B0iRCK10,VCK1#,2#..RCB..ATM..(DLX,STD)199208-199608

GRAY,TRIM1#

main71071-34010-B1iRCK10,VCK11,21..RCB..ATM199608

MOON MIST,TRIM1#

main71071-34010-E0iVCK10,20..ATM..STD199208-199408

OAK,TRIM4#

main71071-34010-J0iVCK10,20..ATM..STD199208-199408

BLUE,TRIM8#

main71071-34020-B0iRCK10,VCK10..MTM..STD199208-199408

GRAY,TRIM1#

main71071-34020-E0iRCK10,VCK10..MTM..STD199208-199408

OAK,TRIM4#

main71071-34020-J0iRCK10,VCK10..MTM..STD199208-199408

BLUE,TRIM8#

main71071-34030-B0iVCK20..MTM..STD199208-199408

GRAY,TRIM1#

main71071-34030-B1iRCK10,VCK11,21..RCB..MTM199608

MOON MIST,TRIM1#

main71071-34030-E0iVCK20..MTM..STD199208-199408

OAK,TRIM4#

main71071-34030-J0iVCK20..MTM..STD199208-199408

BLUE,TRIM8#

main71071-34040-B0iVCK10,20..ATM..STD199208-199408

W(ARMREST),GRAY,TRIM1#

main71071-34040-E0iVCK10,20..ATM..STD199208-199408

W(ARMREST),OAK,TRIM4#

main71071-34040-J0iVCK10,20..ATM..STD199208-199408

W(ARMREST),BLUE,TRIM8#

main71071-34050-B0iRCK10,VCK10..MTM..STD199208-199408

W(ARMREST),GRAY,TRIM1#

main71071-34050-E0iRCK10,VCK10..MTM..STD199208-199408

W(ARMREST),OAK,TRIM4#

main71071-34050-J0iRCK10,VCK10..MTM..STD199208-199408

W(ARMREST),BLUE,TRIM8#

main71071-34060-B0iVCK20..MTM..STD199208-199408

W(ARMREST),GRAY,TRIM1#

main71071-34060-E0iVCK20..MTM..STD199208-199408

W(ARMREST),OAK,TRIM4#

main71071-34060-J0iVCK20..MTM..STD199208-199408

W(ARMREST),BLUE,TRIM8#

main71071-34080-B0iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408-199608

W(ARMREST),GRAY,TRIM1#

main71071-34080-E0iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408-199608

W(ARMREST),OAK,TRIM4#

main71071-34080-J0iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408-199608

W(ARMREST),BLUE,TRIM8#

main71071-34090-B0iRCK10,VCK11,21..RCB..MTM..(DLX,STD)199408-199608

W(ARMREST),GRAY,TRIM1#

main71071-34090-E0iRCK10,VCK11,21..RCB..MTM..(DLX,STD)199408-199608

W(ARMREST),OAK,TRIM4#

main71071-34090-J0iRCK10,VCK11,21..RCB..MTM..(DLX,STD)199408-199608

W(ARMREST),BLUE,TRIM8#

main71071-34130-B0iRCK10,VCK11,21..RCB..ATM199608

W(ARMREST),MOON MIST,TRIM1#

main71071-34130-E0iRCK10,VCK11,21..RCB..ATM199608

W(ARMREST),OAK,TRIM4#

main71071-34150-B0iRCK10,VCK11,21..RCB..MTM199608

W(ARMREST),MOON MIST,TRIM1#

main71071-34150-E0iRCK10,VCK11,21..RCB..MTM199608

W(ARMREST),OAK,TRIM4#

71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)

main71073-34010-B0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

main71073-34010-B1iRCK10,VCK11,21..RCB199608

MOON MIST,TRIM1#

main71073-34010-E0iRCK10,VCK10,20..STD199208-199408

OAK,TRIM4#

main71073-34010-J0iRCK10,VCK10,20..STD199208-199408

BLUE,TRIM8#

main71073-34020-B0iVCK10,20..STD199208-199310

W(ARMREST),GRAY,TRIM1#

main71073-34020-E0iVCK10,20..STD199208-199310

W(ARMREST),OAK,TRIM4#

main71073-34020-J0iVCK10,20..STD199208-199310

W(ARMREST),BLUE,TRIM8#

main71073-34040-B0iRCK10,VCK11,21..RCB..(DLX,STD)199408-199608

W(ARMREST),GRAY,TRIM1#

main71073-34040-E0iRCK10,VCK11,21..RCB..(DLX,STD)199408-199608

W(ARMREST),OAK,TRIM4#

main71073-34040-J0iRCK10,VCK11,21..RCB..(DLX,STD)199408-199608

W(ARMREST),BLUE,TRIM8#

main71073-34050-B0iRCK10,VCK10,20..STD199310-199408

W(ARMREST),GRAY,TRIM1#

main71073-34050-E0iRCK10,VCK10,20..STD199310-199408

W(ARMREST),OAK,TRIM4#

main71073-34050-J0iRCK10,VCK10,20..STD199310-199408

W(ARMREST),BLUE,TRIM8#

main71073-34100-B0iRCK10,VCK11,21..RCB199608

W(ARMREST),MOON MIST,TRIM1#

main71073-34100-E0iRCK10,VCK11,21..RCB199608

W(ARMREST),OAK,TRIM4#

71311PIN, FRONT SEAT HINGE

main71311-34010×2iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)

main71410-34010-B0iRCK10,VCK11,21..RCB..ATM199608

MOON MIST,TRIM1#

main71410-34030-B0iRCK10,VCK11,21..RCB..MTM199608

MOON MIST,TRIM1#

main71410-34170-B0iRCK10,VCK11,21..RCB..ATM199608

W(CENTER ARMREST),MOON MIST,TRIM1#

main71410-34170-E0iRCK10,VCK11,21..RCB..ATM199608

W(CENTER ARMREST),OAK,TRIM4#

main71410-34180-B0iRCK10,VCK11,21..RCB..MTM199608

W(CENTER ARMREST),MOON MIST,TRIM1#

main71410-34180-E0iRCK10,VCK11,21..RCB..MTM199608

W(CENTER ARMREST),OAK,TRIM4#

71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)

main71430-34010-B0iRCK10,VCK11,21..RCB199608

MOON MIST,TRIM1#

main71430-34110-B0iRCK10,VCK11,21..RCB..ATM199608

W(CENTER ARMREST),MOON MIST,TRIM1#

main71430-34110-E0iRCK10,VCK11,21..RCB..ATM199608

W(CENTER ARMREST),OAK,TRIM4#

main71430-34120-B0iRCK10,VCK11,21..RCB..MTM199608

W(CENTER ARMREST),MOON MIST,TRIM1#

main71430-34120-E0iRCK10,VCK11,21..RCB..MTM199608

W(CENTER ARMREST),OAK,TRIM4#

71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71511-34010iRCK10,VCK1#,2#..RCB..ATM..(DLX,STD)199208

main71511-34020iRCK10,VCK10..MTM..STD199208-199408

main71511-34030iRCK10,VCK11,21..RCB..MTM..(DLX,STD)199408

71527TAPE, FRONT SEAT CUSHION SILENCER

main71527-34010×2iVCK11,21..SR5199702

SPORT SEAT

71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)

main71551-34010iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

main71551-34020iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

W(ARMREST)

71561BPAD, FRONT SEATBACK, UPPER

main71561-35030×2iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-60080iVCK11,21..SR5199702

main71587-89103×2iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71610-34010iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408

main71610-34020iVCK20..MTM..STD199208-199408

71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)

main71630-34020iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

W(ARMREST)

main71630-34030iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

71739CUSHION, SEAT SUPPORT

main71739-89111×2iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

main71739-89113×2iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

W(ARMREST)

71910AHEADREST ASSY, FRONT SEAT

main71910-34010-B0×2iRCK10,VCK10,20..STD199208-199408

GRAY,TRIM1#

main71910-34010-E0×2iRCK10,VCK10,20..STD199208-199408

OAK,TRIM4#

main71910-34010-J0×2iRCK10,VCK10,20..STD199208-199408

BLUE,TRIM8#

main71910-34020-B1×2iVCK10,20..SR5199208-199408

GRAY,TRIM1#

main71910-34020-E1×2iVCK10,20..SR5199208-199408

OAK,TRIM4#

main71910-34020-J1×2iVCK10,20..SR5199208-199408

BLUE,TRIM8#

main71910-34030-B0×2iRCK10,VCK11,21..DLX,STD199408-199512

GRAY,TRIM1#

main71910-34030-E0×2iRCK10,VCK11,21..DLX,STD199408-199512

OAK,TRIM4#

main71910-34030-J0iRCK10,VCK11,21..DLX,STD199512-199608

BLUE,TRIM8#,DRIVER SIDE

main71910-34040-B0×2iVCK11,21..SR5199408-199512

GRAY,TRIM1#

main71910-34040-E0iVCK11,21..SR5199512-199608

OAK,TRIM4#,DRIVER SIDE

main71910-34040-J0×2iVCK11,21..SR5199408-199512

BLUE,TRIM8#

main71910-34050-B0iRCK10,VCK11,21..DLX,STD199512-199608

GRAY,TRIM1#,PASSENGER SIDE

main71910-34050-E0iRCK10,VCK11,21..DLX,STD199512-199608

OAK,TRIM4#,PASSENGER SIDE

main71910-34050-J0iRCK10,VCK11,21..DLX,STD199512-199608

BLUE,TRIM8#,PASSENGER SIDE

main71910-34060-B0iVCK11,21..SR5199512-199608

GRAY,TRIM1#,PASSENER SIDE

main71910-34060-E0iVCK11,21..SR5199512-199608

OAK,TRIM4#,PASSENER SIDE

main71910-34060-J0iVCK11,21..SR5199512-199608

BLUE,TRIM8#,PASSENER SIDE

main71910-34070-B0×2iRCK10,VCK11,21..DLX,STD199708

MOON MIST,TRIM1#

main71910-34070-E0×2iRCK10,VCK11,21..DLX,STD199708

OAK,TRIM4#

main71910-34080-B0×2iVCK11,21..SR5199708

MOON MIST,TRIM1#

main71910-34080-E0iVCK11,21..SR5199608-199708

OAK,TRIM4#

main71910-34090-B0iVCK11,21..SR5199608-199708

MOON MIST,TRIM1#,PASSENGER SIDE

main71910-34090-E0iVCK11,21..SR5199608-199708

OAK,TRIM4#,PASSENGER SIDE

main71910-34100-B0×2iVCK11,21..SR5199708

SPORTS SEAT,MOON MIST,TRIM1#

main71910-34100-E0×2iVCK11,21..SR5199708

SPORTS SEAT,OAK,TRIM4#

main71910-34110-B0iVCK11,21..SR5199608-199708

SPORTS SEAT,MOON MIST,TRIM1#,PASSENGER SIDE

main71910-34110-E0iVCK11,21..SR5199608-199708

SPORTS SEAT,OAK,TRIM4#,PASSENGER SIDE

main71910-34120-B0iRCK10,VCK11,21..DLX,STD199608-199708

MOON MIST,TRIM1#,PASSENGER SIDE

main71910-34120-E0iRCK10,VCK11,21..DLX,STD199608-199708

OAK,TRIM4#,PASSENGER SIDE

71931SUPPORT, FRONT SEAT HEADREST

main71930-12070-E8×2iRCK10,VCK1#,2#199208

W(LOCK),OAK,TRIM4#

sub71930-10070

main71930-12070-J6×2iRCK10,VCK1#,2#199208-199608

W(LOCK),BLUE,TRIM8#

sub71930-10070

main71930-12070-P2×2iRCK10,VCK1#,2#199208-199608

W(LOCK),GRAY,TRIM1#

sub71930-10070

main71930-12070-P6×2iRCK10,VCK11,21199608

W(LOCK),BLUE GRAY,TRIM1#

sub71930-10070

main71931-12040-E8×2iRCK10,VCK1#,2#199208

W/O(LOCK),OAK,TRIM4#

sub71931-10020

main71931-12040-J6×2iRCK10,VCK1#,2#199208-199608

W/O(LOCK),BLUE,TRIM8#

sub71931-10020

main71931-12040-P2×2iRCK10,VCK1#,2#199208-199608

W/O(LOCK),GRAY,TRIM1#

sub71931-10020

main71931-12040-P6×2iRCK10,VCK11,21199608

W/O(LOCK),BLUE GRAY,TRIM1#

sub71931-10020

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-34010-B1iVCK10,20..STD;RCK10,VCK11,21..RCB..MTM..(DLX,STD)199208-199608

GRAY,TRIM1#

main72810-34010-E1iVCK10,20..STD;RCK10,VCK11,21..RCB..MTM..(DLX,STD)199208-199608

OAK,TRIM4#

main72810-34010-J1iVCK10,20..STD;RCK10,VCK11,21..RCB..MTM..(DLX,STD)199208-199608

BLUE,TRIM8#

main72810-34020-B1iVCK10,20..SR5199208-199408

GRAY,TRIM1#

main72810-34020-E1iVCK10,20..SR5199208-199408

OAK,TRIM4#

main72810-34020-J1iVCK10,20..SR5199208-199408

BLUE,TRIM8#

main72810-34030-B0iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408-199608

GRAY,TRIM1#

main72810-34030-E0iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408-199608

OAK,TRIM4#

main72810-34030-J0iRCK10,VCK11,21..RCB..ATM..(DLX,STD)199408-199608

BLUE,TRIM8#

main72810-34040-B0iVCK11,21..ATM..SR5199408-199608

GRAY,TRIM1#

main72810-34040-E0iVCK11,21..ATM..SR5199408-199608

OAK,TRIM4#

main72810-34040-J0iVCK11,21..ATM..SR5199408-199608

BLUE,TRIM8#

main72810-34060-B0iVCK11,21..XTR..ATM..DLX199410-199608

GRAY,TRIM1#

main72810-34060-E0iVCK11,21..XTR..ATM..DLX199410-199608

OAK,TRIM4#

main72810-34060-J0iVCK11,21..XTR..ATM..DLX199410-199608

BLUE,TRIM8#

main72810-34080-B0iVCK11,21..MTM..SR5199408-199608

GRAY,TRIM1#

main72810-34080-E0iVCK11,21..MTM..SR5199408-199608

OAK,TRIM4#

main72810-34080-J0iVCK11,21..MTM..SR5199408-199608

BLUE,TRIM8#

main72810-34090-B0iVCK11,21..XTR..MTM..DLX199410-199608

GRAY,TRIM1#

main72810-34090-E0iVCK11,21..XTR..MTM..DLX199410-199608

OAK,TRIM4#

main72810-34090-J0iVCK11,21..XTR..MTM..DLX199410-199608

BLUE,TRIM8#

main72810-34100-B0iRCK10,VCK11,21..RCB..MTM199608

MOON MIST,TRIM1#

main72810-34100-E0iRCK10,VCK11,21..RCB..MTM199608

OAK,TRIM4#

main72810-34110-B0iRCK10,VCK11,21..RCB..ATM199608

MOON MIST,TRIM1#

main72810-34110-E0iRCK10,VCK11,21..RCB..ATM199608

OAK,TRIM4#

main72810-34120-B0iVCK11,21..ATM..SR5199608

MOON MIST,TRIM1#

main72810-34120-E0iVCK11,21..ATM..SR5199608

OAK,TRIM4#

main72810-34130-B0iVCK11,21..MTM..SR5199608

MOON MIST,TRIM1#

main72810-34130-E0iVCK11,21..MTM..SR5199608

OAK,TRIM4#

main72810-34140-B0iVCK11,21..XTR..ATM..DLX199608

MOON MIST,TRIM1#

main72810-34140-E0iVCK11,21..XTR..ATM..DLX199608

OAK,TRIM4#

main72810-34150-B0iVCK11,21..XTR..MTM..DLX199608

MOON MIST,TRIM1#

main72810-34150-E0iVCK11,21..XTR..MTM..DLX199608

OAK,TRIM4#

7137989101PIN, REAR SEATBACK CONTROL LEVER

main71379-89101

9017908146

main90179-08146

9046818071

main90468-18071

9356015025

main93560-15025

20 parts on this diagram · 6 diagrams in section
