REAR BODY MOUNTING

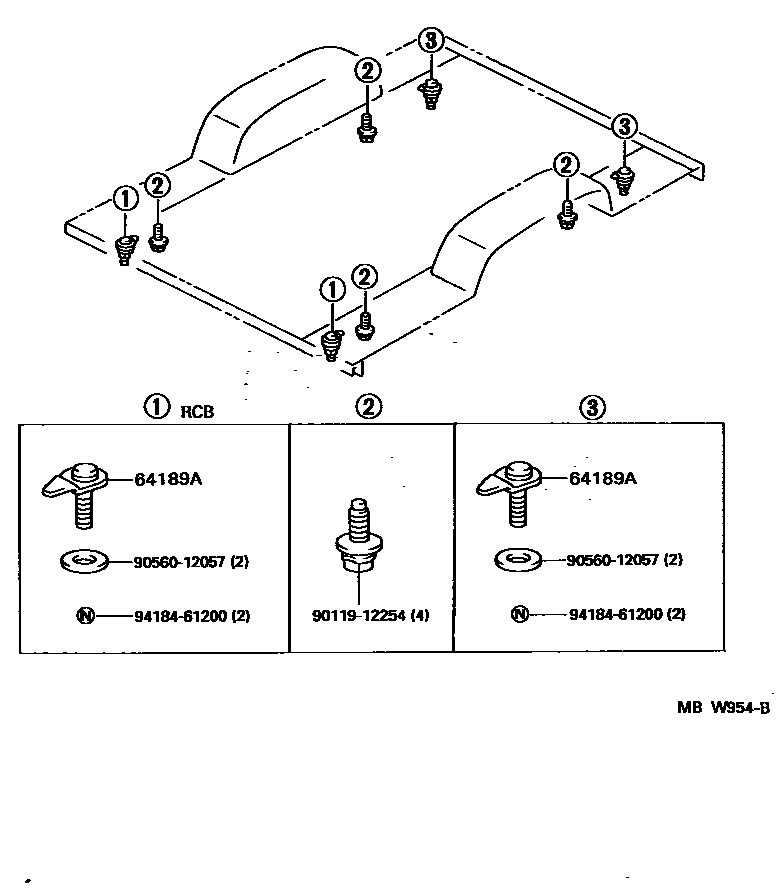

Parts diagram

64189ABOLT, REAR BODY MOUNTING

main64189-35010×4i199208

9011912254

main90119-12254

9056012057

main90560-12057

9418461200

main94184-61200

4 parts on this diagram · 1 diagram in section
