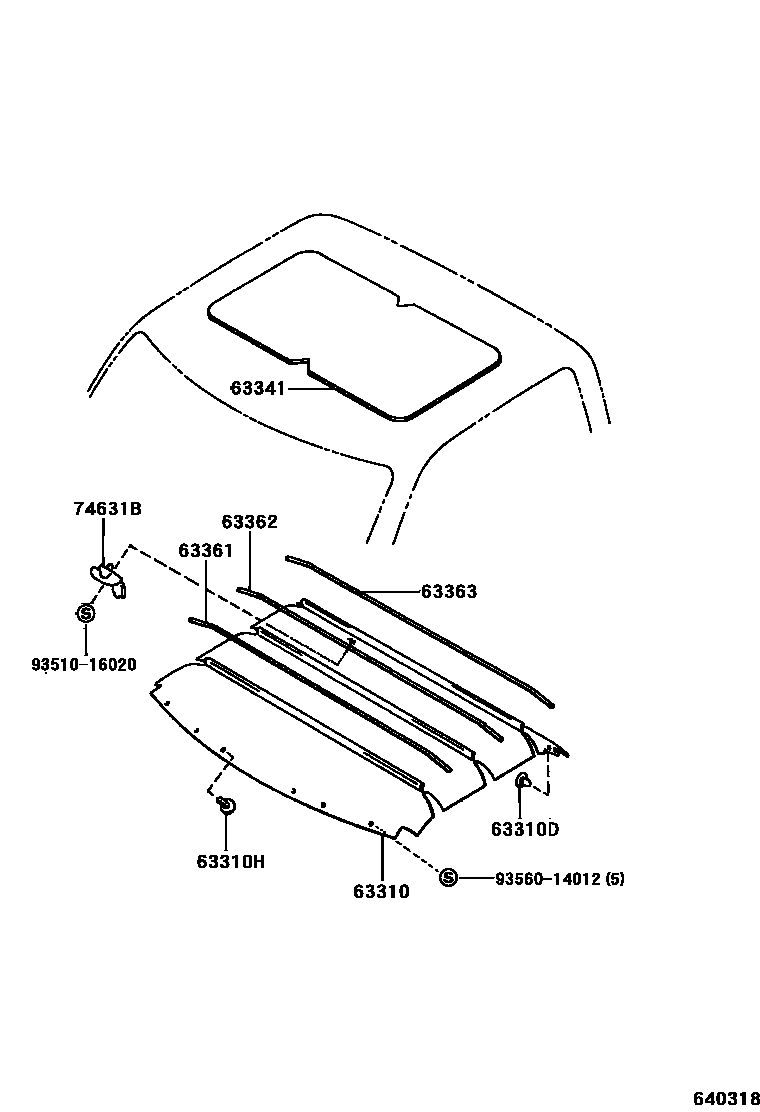

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-34010-B0iRCK10,VCK1#,2#..RCB199208-199608

GRAY,TRIM1#

main63310-34010-B1iRCK10,VCK11,21..RCB199608

MD.MOON MIST,TRIM1#

main63310-34010-E0iRCK10,VCK1#,2#..RCB199208

OAK,TRIM4#

main63310-34010-J0iRCK10,VCK1#,2#..RCB199208-199608

BLUE,TRIM8#

main63310-34020-B0iVCK11,21..XTR199410-199608

GRAY,TRIM1#

main63310-34020-B1iVCK11,21..XTR199608

MD. MOON MIST,TRIM1#

main63310-34020-E0iVCK11,21..XTR199410

OAK,TRIM4#

main63310-34020-J0iVCK11,21..XTR199410-199608

BLUE,TRIM8#

63310DCLIP, ROOF HEADLINING

main90467-08122×4iRCK10,VCK1#,2#..RCB199208

63310HCLIP(FOR ROOF HEADLINING)

main90467-05014-01iRCK10,VCK1#,2#..RCB199208-199608

BLACK,TRIM1#,4#,8#

63341PAD, ROOF SILENCER, NO.1

main63341-34010iRCK10,VCK1#,2#199208-199410

main63341-34030iRCK10,VCK11,21199410

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-34010iRCK10,VCK1#,2#..RCB199208

main63361-34040iVCK11,21..XTR199410

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-34010iVCK11,21..XTR199410

main63361-34020iRCK10,VCK1#,2#..RCB199208

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-34030iRCK10,VCK1#,2#..RCB199208

main63361-34050iVCK11,21..XTR199410

74631BHOOK, COAT

main74631-32010-B1iRCK10,VCK1#,2#..RCB199208-199608

GRAY,TRIM1#

main74631-32010-B3iRCK10,VCK11,21..RCB199608

MD.MOON MIST,TRIM1#

main74631-32010-E1iRCK10,VCK1#,2#..RCB199208

OAK,TRIM4#

main74631-32010-J1iRCK10,VCK1#,2#..RCB199208-199608

BLUE,TRIM8#

9351016020

main93510-16020

9356014012

main93560-14012

10 parts on this diagram · 2 diagrams in section
