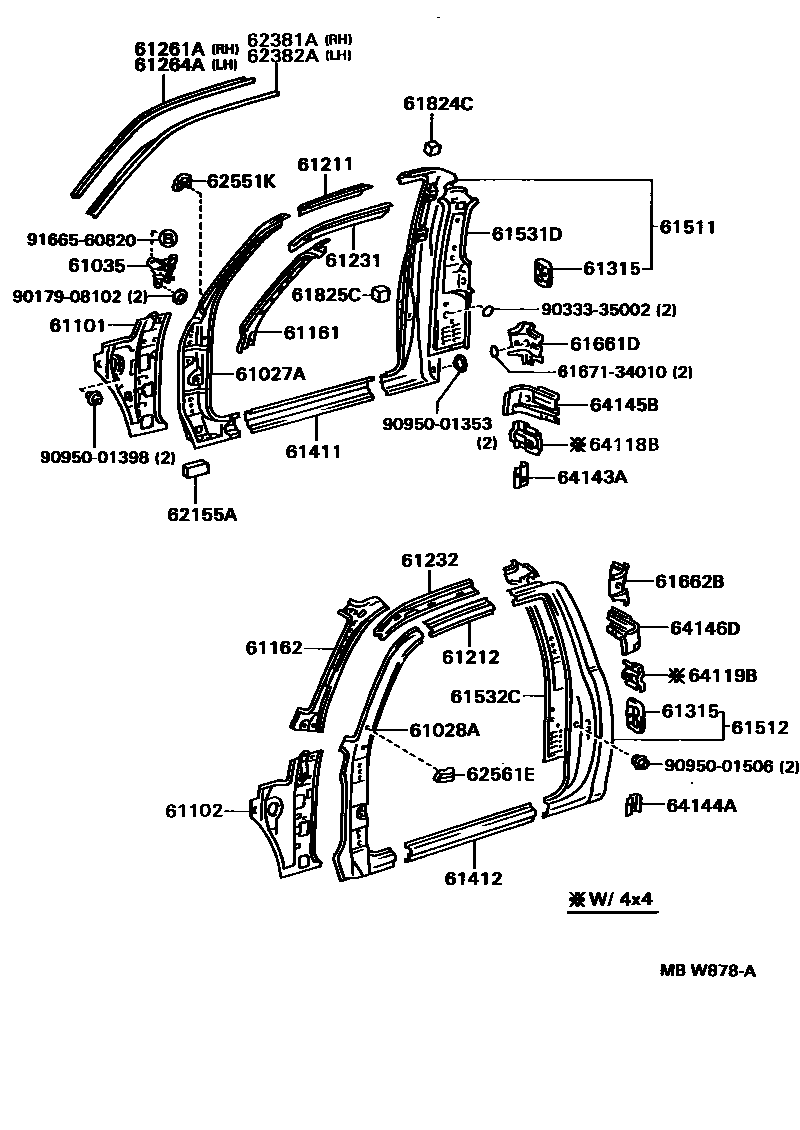

SIDE MEMBER
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61531DPANEL, CAB REAR PILLAR, INNER RH
61532CPANEL, CAB REAR PILLAR, INSIDE LH
61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH
61824PLATE, NOISE CONTROL, NO.1
sub61824-12130
61824CPAD, NOISE SHUTTER, NO.1
sub61824-12110
61825CPAD, NOISE SHUTTER, NO.2
62155APAD, COWL SIDE LOWER SILENCER
sub61824-12110
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
62551KPAD, PILLAR, NO.1 RH
62561EPAD, PILLAR, NO.1 LH
64118BREINFORCEMENT, CAB BACK SIDE, RH
64119BREINFORCEMENT, CAB BACK SIDE, LH
64143AREINFORCEMENT, BACK CORNER PANEL, RH
64144AREINFORCEMENT, BACK CORNER PANEL, LH
64145BREINFORCEMENT, REAR FLOOR, REAR
64146DGUSSET, CAB BACK PANEL, LH
6167134010BRACKET, REAR SEATBACK HINGE, RH
main61671-34010
9017908102
main90179-08102
9033335002
main90333-35002
9095001353
main90950-01353
9095001398
main90950-01398
9095001506
main90950-01506
9166560820
main91665-60820
43 parts on this diagram · 2 diagrams in section
