FLOOR MAT & SILENCER PAD

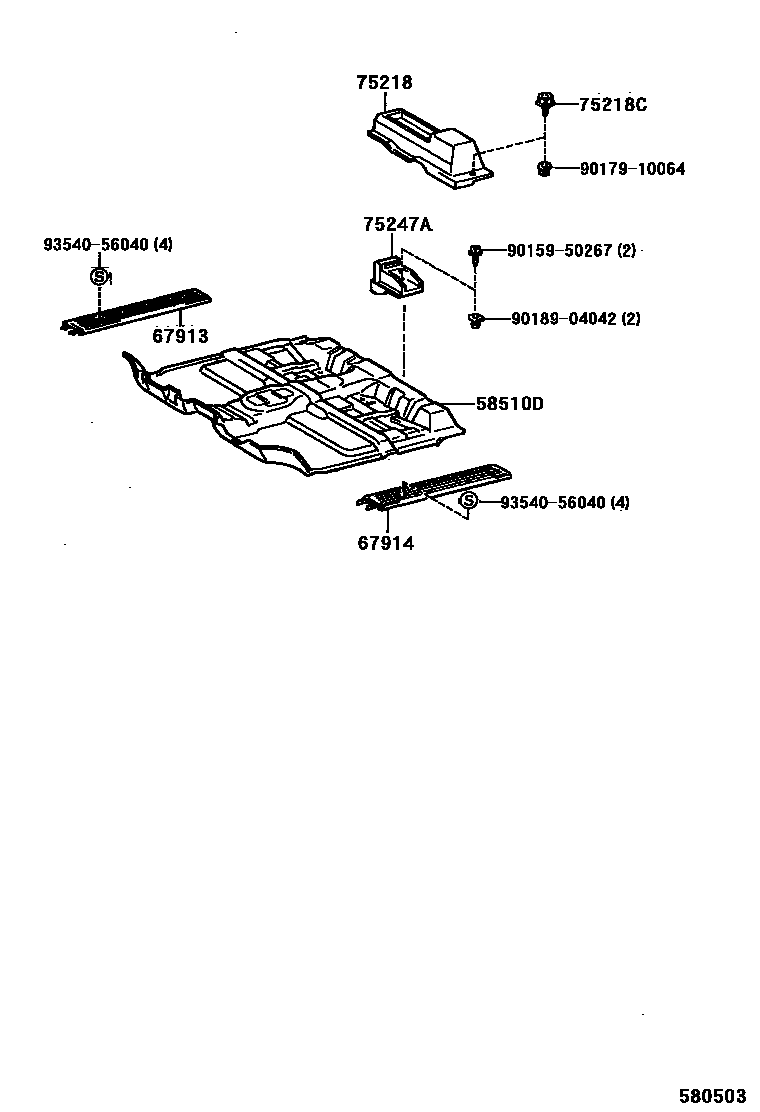

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-34010-B1i199208-199308
GRAY,TRIM1#
main58510-34010-E1i199208-199308
OAK,TRIM4#
main58510-34010-J1i199208-199308
BLUE,TRIM8#
main58510-34020-B0i199208-199308
GRAY,TRIM1#
main58510-34020-E0i199208-199308
OAK,TRIM4#
main58510-34020-J0i199208-199308
BLUE,TRIM8#
main58510-34030-B0i199208-199308
GRAY,TRIM1#
main58510-34030-E0i199208-199308
OAK,TRIM4#
main58510-34030-J0i199208-199308
BLUE,TRIM8#
main58510-34040-B0i199208-199308
GRAY,TRIM1#
main58510-34040-E0i199208-199308
OAK,TRIM4#
main58510-34040-J0i199208-199308
BLUE,TRIM8#
main58510-34060-B0i199208-199308
GRAY,TRIM1#
main58510-34060-E0i199208-199308
OAK,TRIM4#
main58510-34060-J0i199208-199308
BLUE,TRIM8#
main58510-34100-B0i199208-199308
GRAY,TRIM1#
main58510-34100-E0i199208-199308
OAK,TRIM4#
main58510-34100-J0i199208-199308
BLUE,TRIM8#
main58510-34110-B0i199208-199308
GRAY,TRIM1#
main58510-34110-E0i199208-199308
OAK,TRIM4#
main58510-34110-J0i199208-199308
BLUE,TRIM8#
main58510-34150-B0i199308-199408
GRAY,TRIM1#
main58510-34150-E0i199308-199408
OAK,TRIM4#
main58510-34150-J0i199308-199408
BLUE,TRIM8#
main58510-34160-B0i199308-199408
GRAY,TRIM1#
main58510-34160-E0i199308-199408
OAK,TRIM4#
main58510-34160-J0i199308-199408
BLUE,TRIM8#
main58510-34170-B0i199308-199408
GRAY,TRIM1#
main58510-34170-E0i199308-199408
OAK,TRIM4#
main58510-34170-J0i199308-199408
BLUE,TRIM8#
main58510-34180-B0i199308-199408
GRAY,TRIM1#
main58510-34180-E0i199308-199408
OAK,TRIM4#
main58510-34180-J0i199308-199408
BLUE,TRIM8#
main58510-34190-B0i199308-199408
GRAY,TRIM1#
main58510-34190-E0i199308-199408
OAK,TRIM4#
main58510-34190-J0i199308-199408
BLUE,TRIM8#
main58510-34200-B0i199308-199408
GRAY,TRIM1#
main58510-34200-E0i199308-199408
OAK,TRIM4#
main58510-34200-J0i199308-199408
BLUE,TRIM8#
main58510-34210-B0i199308-199408
GRAY,TRIM1#
main58510-34210-E0i199308-199408
OAK,TRIM4#
main58510-34210-J0i199308-199408
BLUE,TRIM8#
main58510-34250-B0i199408-199508
GRAY,TRIM1#
main58510-34250-E0i199408-199508
OAK,TRIM4#
main58510-34250-J0i199408-199508
BLUE,TRIM8#
main58510-34260-B0i199408-199508
GRAY,TRIM1#
main58510-34260-E0i199408-199508
OAK,TRIM4#
main58510-34260-J0i199408-199508
BLUE,TRIM8#
main58510-34270-B0i199408-199508
GRAY,TRIM1#
main58510-34270-E0i199408-199508
OAK,TRIM4#
main58510-34270-J0i199408-199508
BLUE,TRIM8#
main58510-34280-B0i199408-199508
GRAY,TRIM1#
main58510-34280-E0i199408-199508
OAK,TRIM4#
main58510-34280-J0i199408-199508
BLUE,TRIM8#
main58510-34290-B0i199408-199508
GRAY,TRIM1#
main58510-34290-E0i199408-199508
OAK,TRIM4#
main58510-34290-J0i199408-199508
BLUE,TRIM8#
main58510-34300-B0i199408-199508
GRAY,TRIM1#
main58510-34300-E0i199408-199508
OAK,TRIM4#
main58510-34300-J0i199408-199508
BLUE,TRIM8#
main58510-34310-B0i199408-199508
GRAY,TRIM1#
main58510-34310-E0i199408-199508
OAK,TRIM4#
main58510-34310-J0i199408-199508
BLUE,TRIM8#
main58510-34320-B0i199408-199508
GRAY,TRIM1#
main58510-34320-E0i199408-199508
OAK,TRIM4#
main58510-34320-J0i199408-199508
BLUE,TRIM8#
main58510-34330-B0i199410-199608
GRAY,TRIM1#
main58510-34330-E0i199410-199608
OAK,TRIM4#
main58510-34330-J0i199410-199608
BLUE,TRIM8#
main58510-34340-B1i199410-199608
CUT PILE,GRAY,TRIM1#
main58510-34340-E1i199410-199608
CUT PILE,OAK,TRIM4#
main58510-34340-J1i199410-199608
CUT PILE,BLUE,TRIM8#
main58510-34350-B0i199410-199608
GRAY,TRIM1#
main58510-34350-E0i199410-199608
OAK,TRIM4#
main58510-34350-J0i199410-199608
BLUE,TRIM8#
main58510-34360-B0i199410-199608
CUT PILE,GRAY,TRIM1#; GRAY,TRIM1#
main58510-34360-E0i199410-199608
CUT PILE,OAK,TRIM4#; OAK,TRIM4#
main58510-34360-J0i199410-199608
BLUE,TRIM8#; CUT PILE,BLUE,TRIM8#
main58510-34370-B0i199410-199608
GRAY,TRIM1#
main58510-34370-E0i199410-199608
OAK,TRIM4#
main58510-34370-J0i199410-199608
BLUE,TRIM8#
main58510-34380-B1i199410-199608
CUT PILE,GRAY,TRIM1#
main58510-34380-E1i199410-199608
CUT PILE,OAK,TRIM4#
main58510-34380-J1i199410-199608
CUT PILE,BLUE,TRIM8#
main58510-34390-B0i199410-199608
GRAY,TRIM1#
main58510-34390-E0i199410-199608
OAK,TRIM4#
main58510-34390-J0i199410-199608
BLUE,TRIM8#
main58510-34400-B0i199410-199608
CUT PILE,GRAY,TRIM1#; GRAY,TRIM1#
main58510-34400-E0i199410-199608
CUT PILE,OAK,TRIM4#; OAK,TRIM4#
main58510-34400-J0i199410-199608
BLUE,TRIM8#; CUT PILE,BLUE,TRIM8#
main58510-34410-B0i199410-199608
GRAY,TRIM1#
main58510-34410-E0i199410-199608
OAK,TRIM4#
main58510-34410-J0i199410-199608
BLUE,TRIM8#
main58510-34420-B0i199508-199608
GRAY,TRIM1#
main58510-34420-B3i199608
MOON MIST,TRIM1#
main58510-34420-E0i199508
OAK,TRIM4#
main58510-34420-J0i199508-199608
BLUE,TRIM8#
main58510-34430-B0i199508-199608
GRAY,TRIM1#
main58510-34430-B2i199608
MOON MIST,TRIM1#
main58510-34430-E0i199508
OAK,TRIM4#
main58510-34430-J0i199508-199608
BLUE,TRIM8#
main58510-34440-B0i199508-199608
GRAY,TRIM1#
main58510-34440-B2i199608
MOON MIST,TRIM1#
main58510-34440-E0i199508
OAK,TRIM4#
main58510-34440-J0i199508-199608
BLUE,TRIM8#
main58510-34450-B0i199508-199608
GRAY,TRIM1#
main58510-34450-B2i199608
MOON MIST,TRIM1#
main58510-34450-E0i199508
OAK,TRIM4#
main58510-34450-J0i199508-199608
BLUE,TRIM8#
main58510-34460-B0i199508-199608
GRAY,TRIM1#
main58510-34460-B2i199608
MOON MIST,TRIM1#
main58510-34460-E0i199508
OAK,TRIM4#
main58510-34460-J0i199508-199608
BLUE,TRIM8#
main58510-34470-B0i199608
CUT PILE,MOON MIST,TRIM1#
main58510-34470-E0i199608
CUT PILE,OAK,TRIM4#
main58510-34480-B0i199608
CUT PILE,MOON MIST,TRIM1#; MOON MIST,TRIM1#
main58510-34480-E0i199608
CUT PILE,OAK,TRIM4#; OAK,TRIM4#
main58510-34490-B0i199608
CUT PILE,MOON MIST,TRIM1#
main58510-34490-E0i199608
CUT PILE,OAK,TRIM4#
main58510-34500-B0i199608
CUT PILE,MOON MIST,TRIM1#; MOON MIST,TRIM1#
main58510-34500-E0i199608
CUT PILE,OAK,TRIM4#; OAK,TRIM4#
main58510-34510-B0i199608
MOON MIST,TRIM1#
main58510-34510-E0i199608
OAK,TRIM4#
main58510-34520-B0i199608
W(SPORTS SEAT),MOON MIST,TRIM1#
main58510-34520-E0i199608
W(SPORTS SEAT),OAK,TRIM4#
main58510-34530-B0i199608
W(SPORTS SEAT),MOON MIST,TRIM1#
main58510-34530-E0i199608
W(SPORTS SEAT),OAK,TRIM4#
main58510-34540-B0i199608
W(SPORTS SEAT),MOON MIST,TRIM1#
main58510-34540-E0i199608
W(SPORTS SEAT),OAK,TRIM4#
main58510-34550-B0i199608
MOON MIST,TRIM1#
main58510-34550-E0i199608
OAK,TRIM4#
main58510-34560-B0i199608
MOON MIST,TRIM1#
main58510-34560-E0i199608
OAK,TRIM4#
main58510-34570-B0i199608
MOON MIST,TRIM1#
main58510-34570-E0i199608
OAK,TRIM4#
main58510-34580-B0i199608
MOON MIST,TRIM1#
main58510-34580-E0i199608
OAK,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-34010-B0i199208-199608
GRAY,TRIM1#
main67913-34010-B1i199608-199708
MD. MOON MIST,TRIM1#
main67913-34010-E0i199208-199708
OAK,TRIM4#
main67913-34010-J0i199208-199608
BLUE,TRIM8#
main67913-34020-B0i199708
MD.MOON MIST,TRIM1#
main67913-34020-E0i199708
OAK,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-34010-B0i199208-199608
GRAY,TRIM1#
main67914-34010-B1i199608-199708
MD. MOON MIST,TRIM1#
main67914-34010-E0i199208-199708
OAK,TRIM4#
main67914-34010-J0i199208-199608
BLUE,TRIM8#
main67914-34020-B0i199708
MD.MOON MIST,TRIM1#
main67914-34020-E0i199708
OAK,TRIM4#
75218LID, TOOL BOX
main75218-34010-B0i199208-199308
GRAY,TRIM1#
main75218-34010-E0i199208-199308
OAK,TRIM4#
main75218-34010-J0i199208-199308
BLUE,TRIM8#
main75218-34020-B0i199308-199408
GRAY,TRIM1#
main75218-34020-E0i199308-199408
OAK,TRIM4#
main75218-34020-J0i199308-199408
BLUE,TRIM8#
main75218-34030-C0i199408-199508
BLACK,TRIM1#,4#,8#
75218CBOLT, TOOL BOX LID
main90107-10001-B0i199208-199408
GRAY,TRIM1#
main90107-10001-C0i199408-199508
BLACK,TRIM1#,4#,8#
main90107-10001-E0i199208-199408
OAK,TRIM4#
main90107-10001-J0i199208-199408
BLUE,TRIM8#
75247ASUPPORT, TOOL BOX
main75247-34010-B0i199208-199308
GRAY,TRIM1#
main75247-34010-C0i199408-199508
BLACK,TRIM1#,4#,8#
main75247-34010-E0i199208-199308
OAK,TRIM4#
main75247-34010-J0i199208-199308
BLUE,TRIM8#
main75247-34020-B0i199308-199408
GRAY,TRIM1#
main75247-34020-E0i199308-199408
OAK,TRIM4#
main75247-34020-J0i199308-199408
BLUE,TRIM8#
9015950267
main90159-50267
9017910064
main90179-10064
9018904042
main90189-04042
9354056040
main93540-56040

10 parts on this diagram · 3 diagrams in section
