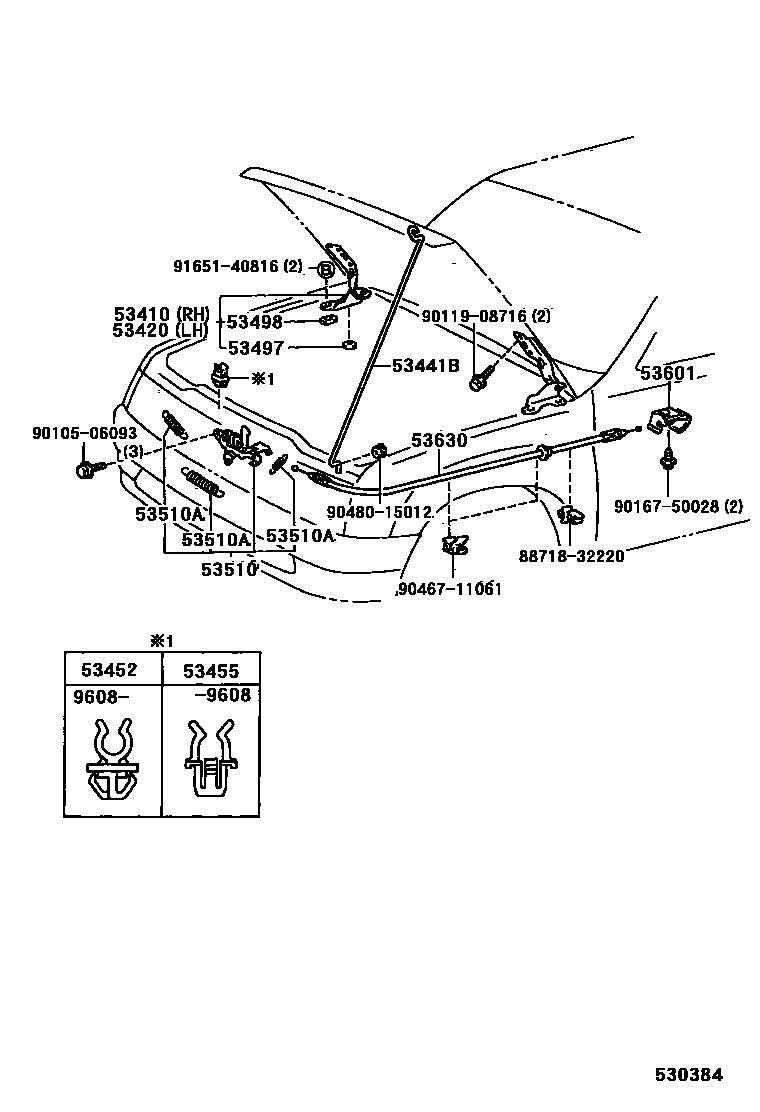

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-34010iRCK10,VCK1#,2#199208

53420HINGE ASSY, HOOD, LH

main53420-34010iRCK10,VCK1#,2#199208

53441BSUPPORT, HOOD

main53441-34010iRCK10,VCK1#,2#199208

53452HOLDER, HOOD STAY

main53452-90351iRCK10,VCK11,21199608

53455CLAMP, HOOD SUPPORT ROD

main53455-12080iRCK10,VCK1#,2#199208-199608

53497PAD, HOOD HINGE, NO.1

main53497-50010×2iRCK10,VCK1#,2#199208

53498PAD, HOOD HINGE, NO.2

main53498-50010×2iRCK10,VCK1#,2#199208

53510LOCK ASSY, HOOD

main53510-34010iRCK10,VCK1#,2#199208

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iRCK10,VCK1#,2#199208

WD=0.9,CW=20.75,RH

main90506-09055iRCK10,VCK1#,2#199208

WD=0.9,CW=21,LH

main90507-20029iRCK10,VCK1#,2#199208

WD=2.1,CW=17,CTR

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-89103-B0iRCK10,VCK1#,2#199208-199608

MEDIUM GRAY,TRIM1#

main53601-89103-B1iRCK10,VCK11,21199608

MOON MIST,TRIM1#

main53601-89103-E2iRCK10,VCK1#,2#199208

OAK,TRIM4#

main53601-89103-J0iRCK10,VCK1#,2#199208-199608

MEDIUM BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-34010iRCK10,VCK1#,2#199208

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9010506093

main90105-06093

9011908716

main90119-08716

9016750028

main90167-50028

9046711061

main90467-11061

9048015012

main90480-15012

9165140816

main91651-40816

18 parts on this diagram · 1 diagram in section
