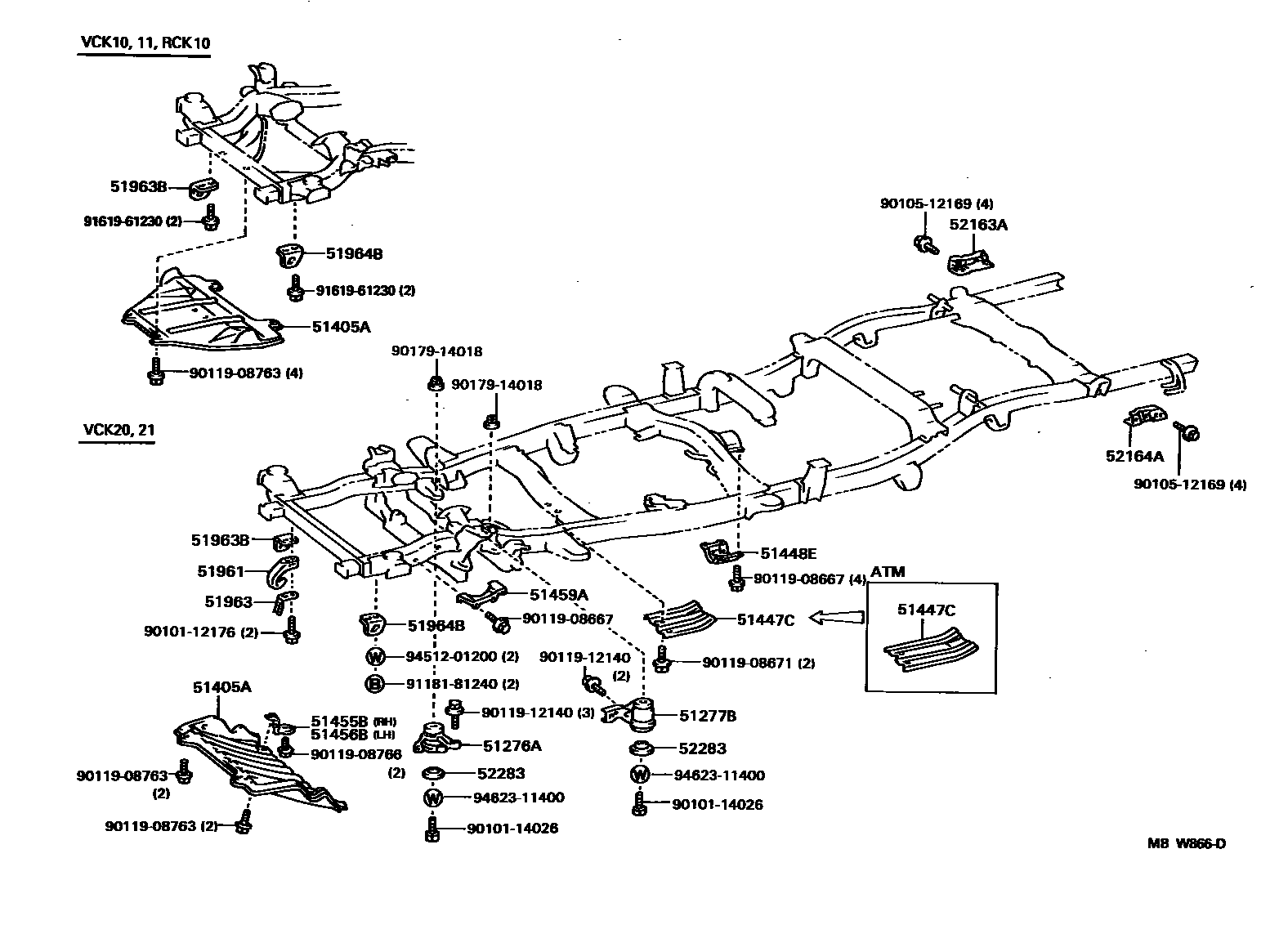

SUSPENSION CROSSMEMBER & UNDER COVER
51277BBRACKET ASSY, DIFFERENTIAL SUPPORT, LH
51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1
51447CPROTECTOR, TRANSFER CASE
OFFROAD PACKAGE OR OFFROAD PACKAGE & POWER PACKAGE
OFFROAD PACKAGE OR OFFROAD PACKAGE & POWER PACKAGE
OFFROAD PACKAGE; OFFROAD PACKAGE OR OFFROAD PACKAGE & POWER PACKAGE
OFFROAD PACKAGE; OFFROAD PACKAGE OR OFFROAD PACKAGE & POWER PACKAGE
51448ECOVER, ENGINE SIDE UNDER, RH NO.2
51455BBRACKET, ENGINE UNDER COVER, REAR RH
51456BBRACKET, ENGINE UNDER COVER, REAR LH
51459ABRACKET ENGINE UNDER COVER AIR GUIDE, LH
51961HOOK, NO.1
51963STOPPER, HOOK WIRE
51963BHOOK, TRANSPORT, FRONT RH
51964BHOOK, TRANSPORT, FRONT LH
52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
9010112176
main90101-12176
9010114026
main90101-14026
9010512169
main90105-12169
9011908667
main90119-08667
9011908671
main90119-08671
9011908763
main90119-08763
9011908766
main90119-08766
9011912140
main90119-12140
9017914018
main90179-14018
9118181240
main91181-81240
9161961230
main91619-61230
9451201200
main94512-01200
9462311400
main94623-11400
28 parts on this diagram · 1 diagram in section
