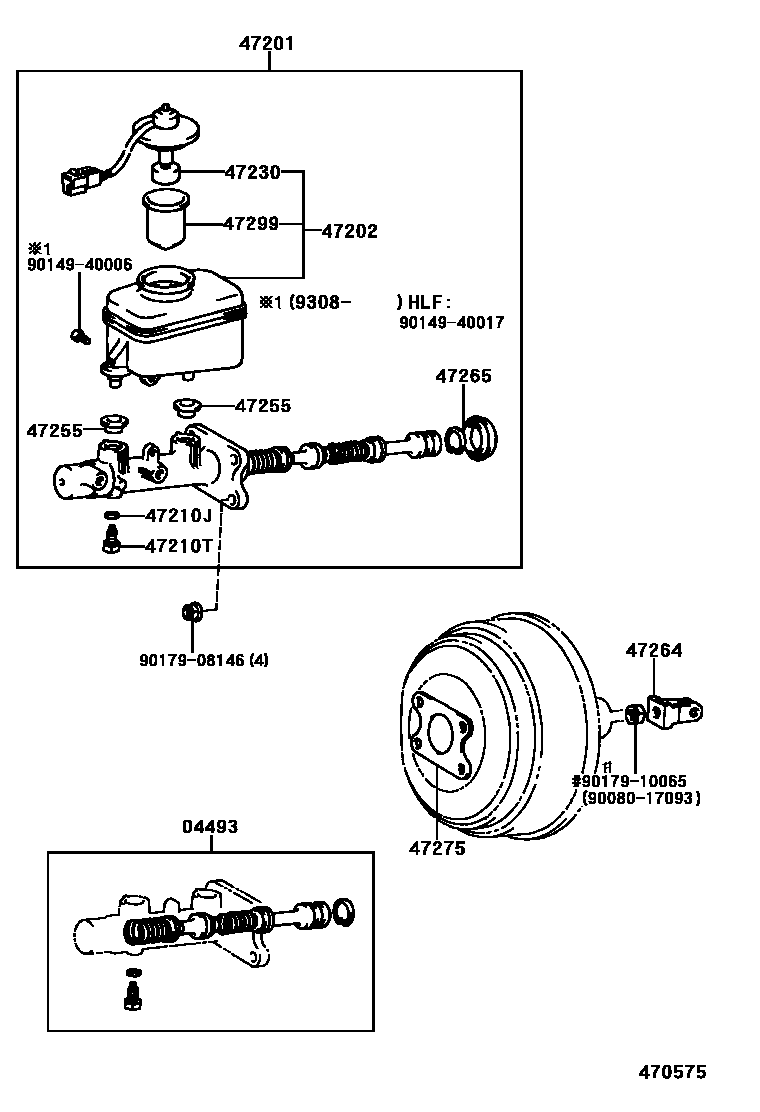

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-04020iRCK10,VCK11,21..HLF199608

main04493-34010iVCK11,21199408

W(ABS)

main04493-35330iRCK10,VCK11,21..HLF199504-199608

main04493-60210iRCK10,VCK1#,2#..HLF199208-199504

sub04493-60280

main04493-60240iVCK1#..10T199208

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-04020iRCK10,VCK10,20..HLF199308-199408

main47201-0W010iRCK10,VCK11,21..HLF199408

main47201-34020iVCK10..10T199208-199308

main47201-34030iVCK10..10T199308-199408

main47201-34031iVCK11..10T199408

main47201-34040iVCK11,21199408

W(ABS)

main47201-3D020iVCK10,20..HLF199208-199308

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-34010iVCK10..10T199308-199408

main47202-34020iVCK11,21..HLF199408-199511

W(ABS)

sub47220-35010

main47202-35240iVCK10,20199208-199308

main47220-04010iRCK10,VCK10,20..HLF199308-199408

main47220-0W010iRCK10,VCK11,21..HLF199408

main47220-35010iVCK11..10T199511

W(ABS)

sub47220-60080

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iVCK11,21199805

W(ABS)

main90430-06002iRCK10,VCK1#,2#..HLF199308

main90430-06104iVCK11,21..HLF199408-199805

W(ABS)

main90430-06104iVCK1#..10T199208-199308

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iVCK11,21..HLF199504

W(ABS)

main90109-06077iRCK10,VCK1#,2#199208-199504

main90109-06123iRCK10,VCK11,21..HLF199504

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-04010iRCK10,VCK11,21..HLF199504

main47230-12040iVCK11..10T199504

W(ABS)

main47230-12040iRCK10,VCK11,21199408-199504

main47230-24010iRCK10,VCK10,20199308-199408

sub47230-47090

main84460-35050iVCK10,20199208-199308

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iVCK11,21..HLF199408

W(ABS)

main47255-16010iVCK10,20199208-199308

main47255-20010iRCK10,VCK1#,2#..HLF199308

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iRCK10,VCK1#,2#199208

47265BOOT, MASTER CYLINDER

main47265-20050iVCK10,20..HLF199208-199308

main47265-20080iRCK10,VCK1#,2#..HLF199308-199504

main47265-22030iVCK1#..10T199208-199504

main47265-22030iVCK11,21..HLF199408-199504

W(ABS)

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iRCK10,VCK1#,2#199208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iVCK11,21..HLF199408

W(ABS)

main47299-24010iVCK1#..10T199308

main47299-32010iVCK10,20199208-199308

main47299-35010iRCK10,VCK1#,2#..HLF199308

sub47299-52010

9008017093

main90080-17093

9014940006

main90149-40006

9014940017

main90149-40017

9017908146

main90179-08146

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
