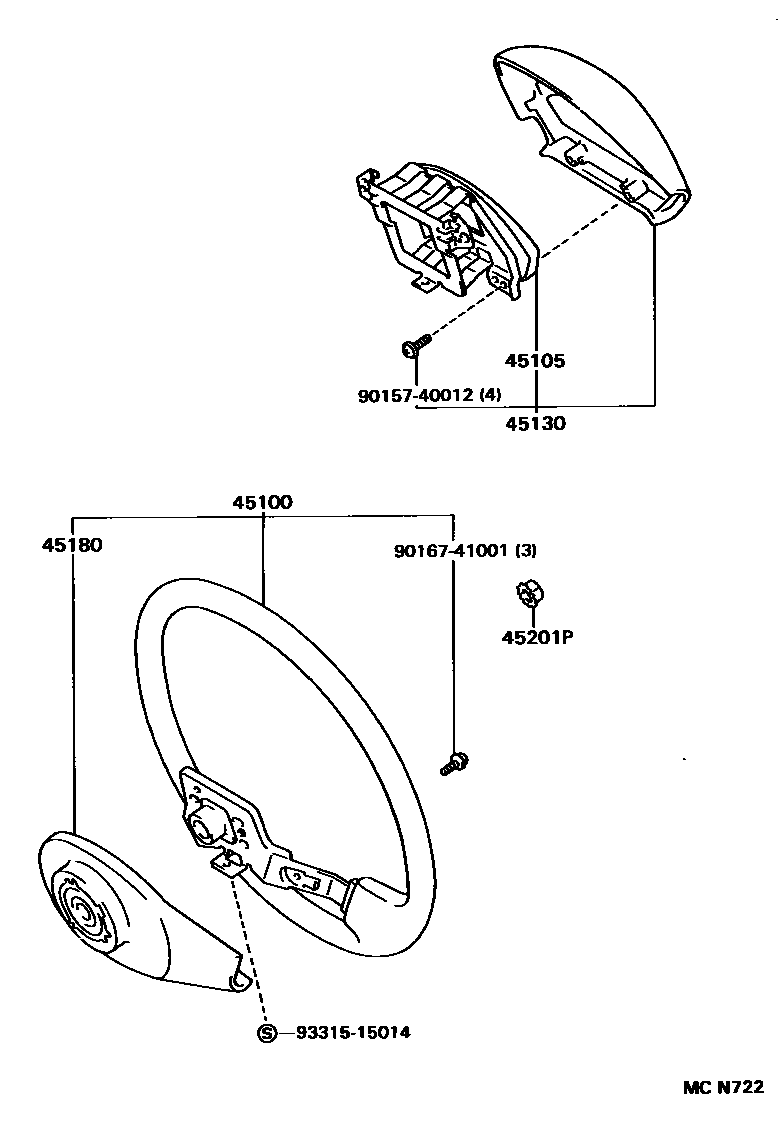

STEERING WHEEL

0001 12-SPOKE 0002 13-SPOKE 0003 13-SPOKE,W(CRUISE CONTROL) 0004 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-04010-B0iVCK10,20..STD199212-199308

2SPOKE,POLYPROPYLENE,MEDIUM GRAY,TRIM1#,(L)

main45100-04010-E0iVCK10,20..STD..CND199308-199408

2SPOKE,POLYPROPYLENE,OAK,TRIM4#,(L)

main45100-04010-J0iVCK10,20..STD..CND199308-199408

2SPOKE,POLYPROPYLENE,MEDIUM BLUE,TRIM8#,(L)

main45100-30630-B1iVCK10,20..SR5..USA199308-199309

4-SPOKE,LEATHER,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-30630-E1iVCK10,20..SR5..USA199308-199309

4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#

main45100-30630-J0iVCK10,20..SR5..USA199308-199309

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-30640-B1iVCK10,20..STD..USA199308-199309

4-SPOKE,URETHANE,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-30640-E1iVCK10,20..STD..USA199308-199309

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-30640-J0iVCK10,20..STD..USA199308-199309

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-34010-B0iVCK10,20..USA199308-199309

4-SPOKE,URETHANE,GRAY,TRIM1#

main45100-34010-E0iVCK10,20..USA199308-199309

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-34010-J0iVCK10,20..USA199308-199309

4-SPOKE,URETHANE,BLUE,TRIM8#

main45100-34011-B0iVCK11,21;RCK10,VCK10,20..USA199309-199508

4-SPOKE,URETHANE,GRAY,TRIM1#

main45100-34011-E0iVCK11,21;RCK10,VCK10,20..USA199309-199508

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-34011-J0iVCK11,21;RCK10,VCK10,20..USA199309-199508

4-SPOKE,URETHANE,BLUE,TRIM8#

main45100-34012-B0iRCK10,VCK11,21199508-199608

4-SPOKE,URETHANE,GRAY,TRIM1#

main45100-34012-B1iRCK10,VCK11,21199608

4-SPOKE,URETHANE,MOON MIST,TRIM1#

main45100-34012-E0iRCK10,VCK11,21199508

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-34012-J0iRCK10,VCK11,21199508-199608

4-SPOKE,URETHANE,BLUE,TRIM8#

main45100-34020-B0iVCK10,20..STD..USA;RCK10,VCK11,21..DLX,STD199309-199508

4-SPOKE,URETHANE,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-34020-E0iVCK10,20..STD..USA;RCK10,VCK11,21..DLX,STD199309-199508

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-34020-J0iVCK10,20..STD..USA;RCK10,VCK11,21..DLX,STD199309-199508

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-34021-B0iVCK11,21..DLX199508-199608

4-SPOKE,URETHANE,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-34021-B1iVCK11,21..DLX199608

4-SPOKE,URETHANE,W(CRUISE CONTROL),MOON MIST,TRIM1#

main45100-34021-E0iVCK11,21..DLX199508

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-34021-J0iVCK11,21..DLX199508-199608

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-34030-B0iVCK10,20..SR5..USA199309-199408

4-SPOKE,LEATHER,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-34030-E1iVCK10,20..SR5..USA199309-199408

4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#

main45100-34030-J0iVCK10,20..SR5..USA199309-199408

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-34031-B0iVCK11,21..SR5199408-199508

4-SPOKE,LEATHER,W(CRUISE CONTROL),GARY,TRIM1#

main45100-34031-E1iVCK11,21..SR5199408-199508

4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#

main45100-34031-J0iVCK11,21..SR5199408-199508

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-34032-B0iVCK11,21..SR5199508-199608

4-SPOKE,LEATHER,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-34032-B1iVCK11,21..SR5199608

4-SPOKE,LEATHER,W(CRUISE CONTROL),MOON MIST,TRIM1#

main45100-34032-E1iVCK11,21..SR5199508

4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#

main45100-34032-J0iVCK11,21..SR5199508-199608

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-35281-B0iVCK10,20..SR5..CND199308-199408

3-SPOKE,URETHANE,MEDIUM GRAY,TRIM1#

main45100-35281-E2iVCK10,20..SR5199208-199308

3-SPOKE,URETHANE,OAK,TRIM4#

main45100-35281-J0iVCK10,20..SR5199208-199308

3-SPOKE,URETHANE,MEDIUM BLUE,TRIM8#

main45100-35320-B0iVCK10,20..STD..CND199308-199408

3-SPOKE,URETHANE,W(CRUISE CONTROL),MEDIUM GRAY,TRIM1#

main45100-35320-E1iVCK10,20..STD199208-199308

3-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-35320-J0iVCK10,20..STD199208-199308

3-SPOKE,URETHANE,W(CRUISE CONTROL),MEDIUM BLUE,TRIM8#

main45100-35340-B0iVCK10,20..STD199208-199308

2SPOKE,POLYPROPYLENE,MEDIUM GRAY,TRIM1#

main45100-35340-E0iVCK10,20..STD199208-199308

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

main45100-35340-J0iVCK10,20..STD199208-199308

2SPOKE,POLYPROPYLENE,MEDIUM BLUE,TRIM8#

main45100-35370-B1iVCK10,20..SR5199208-199308

3-SPOKE,LEATHER,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-35370-E1iVCK10,20..SR5199208-199308

3-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#

main45100-35370-J1iVCK10,20..SR5199208-199308

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLUE,TRIM8#

main45100-35371-B0iVCK10,20..SR5..CND199308-199408

3-SPOKE,URETHANE,W(CRUISE CONTROL),GRAY,TRIM1#

main45100-35371-E1iVCK10,20..SR5..CND199308-199408

3-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

main45100-35371-J1iVCK10,20..SR5..CND199308-199408

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLUE,TRIM8#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-04010iVCK10,20..STD199212-199308

(L)

main45105-26090iVCK10,20..USA199308-199309

main45105-30210iVCK10,20..USA199308-199309

W(CRUISE CONTROL)

main45105-34010iVCK11,21;RCK10,VCK10,20..USA199309-199508

main45105-34011iRCK10,VCK11,21199508

main45105-34020iVCK11,21;RCK10,VCK10,20..USA199309-199508

W(CRUISE CONTROL)

main45105-34021iVCK11,21199508

W(CRUISE CONTROL)

main45105-35060iVCK10,20..STD..CND199308-199408

main45105-35070iVCK10,20..SR5..CND; VCK10,20..STD..CND199308-199408

W(CRUISE CONTROL)

45130BUTTON ASSY, HORN

main45130-04010-B0iVCK10,20..STD..CND199308-199408

MEDIUM GRAY,TRIM1#

main45130-04010-E0iVCK10,20..STD..CND199308-199408

OAK,TRIM4#

main45130-04010-J0iVCK10,20..STD199212-199308

MEDIUM BLUE,TRIM8#

main45130-34011-B0iVCK11,21;RCK10,VCK10,20..USA199308-199508

GRAY,TRIM1#

main45130-34011-E0iVCK11,21;RCK10,VCK10,20..USA199308-199508

OAK,TRIM4#

main45130-34011-J0iVCK11,21;RCK10,VCK10,20..USA199308-199508

BLUE,TRIM8#

main45130-34020-B0iRCK10,VCK11,21199508-199608

GRAY,TRIM1#

main45130-34020-E0iRCK10,VCK11,21199508-199608

OAK,TRIM4#

main45130-34020-J0iRCK10,VCK11,21199508-199608

BLUE,TRIM8#

main45130-34030-B0iRCK10,VCK11,21199608-199708

MOON MIST,TRIM1#

main45130-34030-E0iRCK10,VCK11,21199608-199708

OAK,TRIM4#

main45130-34031-B0iRCK10,VCK11,21199708-199807

MOON MIST,TRIM1#

main45130-34031-E0iRCK10,VCK11,21199708-199807

OAK,TRIM4#

main45130-35252-B0iVCK10,20..SR5..CND; VCK10,20..STD..CND199308-199408

MEDIUM GRAY,TRIM1#; W(CRUISE CONTROL),MEDIUM GRAY,TRIM1#

main45130-35252-E1iVCK10,20..SR5..CND; VCK10,20..STD..CND199308-199408

OAK,TRIM4#; W(CRUISE CONTROL),OAK,TRIM4#

main45130-35252-J0iVCK10,20..SR5; VCK10,20..STD199208-199308

MEDIUM BLUE,TRIM8#; W(CRUISE CONTROL),MEDIUM BLUE,TRIM8#

main45130-35270-B0iVCK10,20..STD199208-199212

MEDIUM GRAY,TRIM1#

main45130-35270-E0iVCK10,20..STD199208-199212

OAK,TRIM4#

main45130-35270-J0iVCK10,20..STD199208-199212

MEDIUM BLUE,TRIM8#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-04010-B0iVCK10,20..STD199212-199308

MEDIUM GRAY,TRIM1#

main45180-04010-E0iVCK10,20..STD..CND199308-199408

OAK,TRIM4#,(L)

main45180-04010-J0iVCK10,20..STD..CND199308-199408

MEDIUM BLUE,TRIM8#

main45180-35051-B0iVCK10,20..SR5..CND199308-199408

MEDIUM GRAY,TRIM1#

main45180-35051-E2iVCK10,20..SR5..CND199308-199408

OAK,TRIM4#

main45180-35051-J0iVCK10,20..SR5199208-199308

MEDIUM BLUE,TRIM8#

main45180-35060-B0iVCK10,20..STD199208-199308

GRAY,TRIM1#

main45180-35060-E0iVCK10,20..STD199208-199308

OAK,TRIM4#

main45180-35060-J0iVCK10,20..STD199208-199308

BLUE,TRIM8#

main45184-35050-B0iVCK10,20..CND199308-199408

W(CRUISE CONTROL),MEDIUM GRAY,TRIM1#

main45184-35050-E1iVCK10,20199208-199308

W(CRUISE CONTROL),OAK,TRIM4#

main45184-35050-J0iVCK10,20199208-199308

W(CRUISE CONTROL),MEDIUM BLUE,TRIM8#

45201PNUT, STEERING WHEEL SET

main90179-12071iRCK10,VCK1#,2#199306

main90179-12086iVCK10,20199208-199306

9015740012

main90157-40012

9016741001

main90167-41001

9331515014

main93315-15014

8 parts on this diagram · 4 diagrams in section
