POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1ANTI-LOCK BRAKING SYSTEM 0005 1 0006 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1605V-BELT

→ Go to FIG 16-05

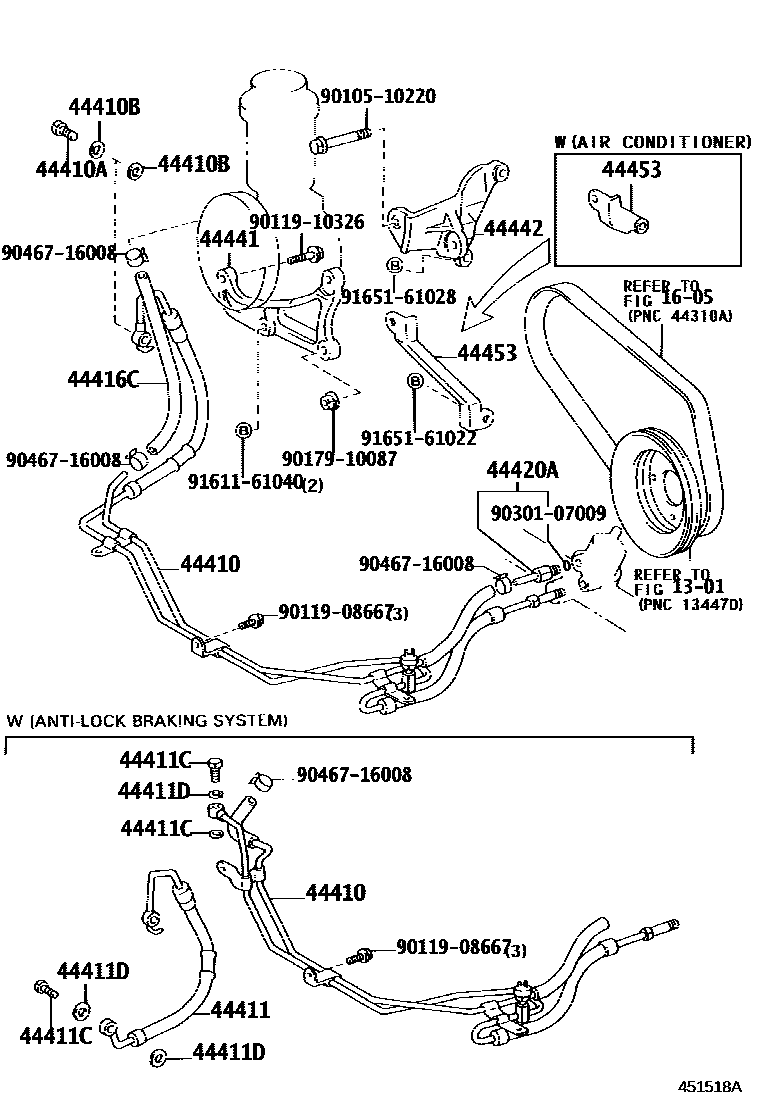

44410TUBE ASSY, PRESSURE FEED

main44410-34010iVCK10..STD199208-199408

main44410-34020iVCK10..SR5; VCK10..STD199208-199408

W(*66)

main44410-34030iVCK20..STD199208-199408

main44410-34040iVCK20..SR5; VCK20..STD199208-199408

W(*66)

main44410-34050iRCK10199310

main44410-34080iVCK11199408-199708

main44410-34090iVCK21199408-199708

main44410-34100iVCK11199708

main44410-34110iVCK21199708

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iVCK10,20199208-199408

main90401-16014iVCK11,21199408

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242×2iRCK10,VCK1#,2#199208

44411HOSE, PRESSURE FEED

main44411-34010iVCK10199208-199408

main44411-34020iVCK20199208-199408

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16009×2iVCK10,20199208-199408

main90401-16014iRCK10199310

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242×4iVCK10,20199208-199408

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-34010iVCK2#199208

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18093iVCK10..STD199208-199408

main90445-18126iVCK11,21199408

main90445-18145iVCK20..STD199208-199408

main90447-18045iVCK10..SR5; VCK10..STD199208-199408

W(*66)

main90447-18046iVCK20..SR5; VCK20..STD199208-199408

W(*66)

44420ATUBE ASSY, RETURN

main44420-17010iRCK10,VCK1#199208

44441BRACKET, PUMP, FRONT

main44441-35020iVCK10,20199208-199408

44442BRACKET, PUMP, REAR

main44442-35010iVCK10,20199208-199408

44453STAY, PUMP, FRONT

main44453-35010iVCK10,20199208-199408

main44453-35040iVCK10,20199208-199408

W(AIR CONDITIONER)

9010510220

main90105-10220

9011908667

main90119-08667

9011910326

main90119-10326

9017910087

main90179-10087

9030107009

main90301-07009

9046716008

main90467-16008

9161161040

main91611-61040

9165161022

main91651-61022

9165161028

main91651-61028
