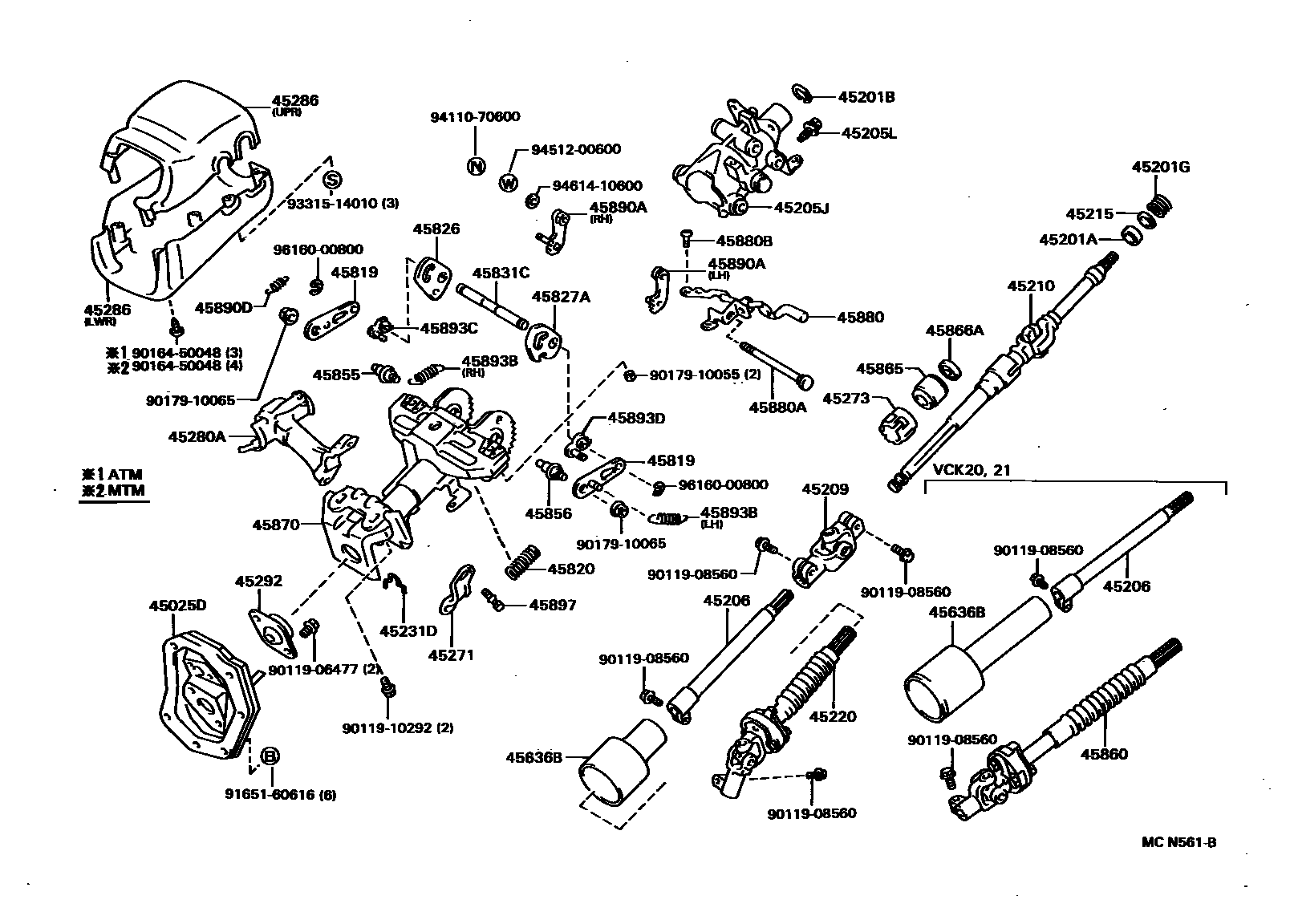

STEERING COLUMN & SHAFT

0001 1TILT STEERING 0002 1RIGRD STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-34010iRCK10,VCK1#..MTM199208

main45025-34020iRCK10,VCK1#..ATM199208

main45025-34030iVCK2#..MTM199208

main45025-34040iVCK2#..ATM199208

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18010iVCK10,20199208-199306

sub90363-18005

main90363-18011iVCK10,20199306-199310

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iVCK10,20..ATM..STD;VCK10,20..MTM..STD..CND199308-199310

T=1.20

main90520-17042iVCK10,20199208-199308

T=1.20,LWR

main90520-17042iVCK10..SR5..CND;VCK20..ATM..SR5;VCK10..ATM..SR5..USA;VCK20..MTM..SR5..CND199308-199310

T=1.20,W(TILT STEERING)

main90520-17269iRCK10,VCK1#,2#..DLX,STD199208-199310

T=1.20,UPR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iVCK10,20..ATM;VCK10,20..MTM..CND199208-199310

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-34010iVCK10,20..CND199208-199408

main45205-34020iVCK11,21;RCK10,VCK10,20..USA199308-199310

45205LSCREW(FOR STEERING COLUMN TUBE)

main91665-40616iVCK10,20199208-199310

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-34010iRCK10,VCK1#199208

main45206-34020iVCK2#199208

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-35030iVCK10,20199208-199310

45210SHAFT ASSY, STEERING MAIN

main45210-35160iVCK10,20..STD199208-199310

main45210-35170iRCK10,VCK1#,2#..DLX,STD199208-199310

W(COLLAPSIBLE TILT STEERING)

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iVCK10,20199208-199310

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-34010iRCK10,VCK1#199208-199506

sub45220-34011

main45220-34011iRCK10,VCK11199506

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iVCK10,20199208-199310

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iVCK10,20..STD199208-199310

main45271-12060iVCK10..SR5..CND;VCK20..ATM..SR5;VCK10..ATM..SR5..USA;VCK20..MTM..SR5..CND199208-199310

W(COLLAPSIBLE TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iRCK10,VCK1#,2#199208-199310

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-34010iRCK10,VCK1#,2#..MTM..(DLX,STD)199208-199310

main45280-34020iRCK10,VCK1#,2#..ATM..(DLX,STD)199208

main45280-34030iVCK10,20..MTM..STD199208-199310

W(COLLAPSIBLE TILT STEERING)

main45280-34040iVCK1#,2#..ATM..SR5199208

W(COLLAPSIBLE TILT STEERING)

45286COVER, STEERING COLUMN

main45286-34010-B0iVCK10,20..MTM..STD199208-199408

GRAY,TRIM1#,UPR

sub45286-34010

main45286-34010-E0iVCK10,20..MTM..STD199208-199408

OAK,TRIM4#,UPR

sub45286-34010

main45286-34010-J0iVCK10,20..MTM..STD..CND199208-199408

BLUE,TRIM8#,UPR

sub45286-34010

main45286-34020-B0iVCK10,20..ATM..STD..CND199208-199408

GRAY,TRIM1#,UPR

sub45286-34020

main45286-34020-E0iVCK10,20..ATM..STD..CND199208-199408

OAK,TRIM4#,UPR

sub45286-34020

main45286-34020-J0iVCK10,20..ATM..STD..CND199208-199408

BLUE,TRIM8#,UPR

sub45286-34020

main45286-34030-B0iVCK10,20..MTM..STD..CND199208-199408

GRAY,TRIM1#,UPR

sub45286-34030

main45286-34030-B0iVCK10,20..MTM..SR5199208-199408

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR

sub45286-34030

main45286-34030-E0iVCK10,20..MTM..STD..CND199208-199408

OAK,TRIM4#,UPR

sub45286-34030

main45286-34030-E0iVCK10,20..MTM..STD..CND199208-199408

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,UPR

sub45286-34030

main45286-34030-J0iVCK10,20..MTM..STD199208-199408

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR

sub45286-34030

main45286-34030-J0iVCK10,20..MTM..SR5199208-199408

BLUE,TRIM8#,UPR

sub45286-34030

main45286-34040-B0iVCK10,20..ATM..SR5199208-199408

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR

sub45286-34040

main45286-34040-B0iVCK10,20..ATM..STD199208-199408

GRAY,TRIM1#,UPR

sub45286-34040

main45286-34040-E0iVCK10,20..ATM..SR5..CND199208-199408

OAK,TRIM4#,UPR

sub45286-34040

main45286-34040-E0iVCK10,20..ATM..STD..CND199208-199408

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,UPR

sub45286-34040

main45286-34040-J0iVCK10,20..ATM..SR5199208-199408

BLUE,TRIM8#,UPR

sub45286-34040

main45286-34040-J0iVCK10,20..ATM..STD199208-199408

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR

sub45286-34040

main45286-34050-B0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

GRAY,TRIM1#,UPR

sub45286-34050

main45286-34050-B1iRCK10,VCK11,21..MTM..(DLX,STD)199608

MOON MIST,TRIM1#,UPR

sub45286-34050

main45286-34050-E0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310

OAK,TRIM4#,UPR

sub45286-34050

main45286-34050-J0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

BLUE,TRIM8#,UPR

sub45286-34050

main45286-34060-B0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

GRAY,TRIM1#,UPR

sub45286-34060

main45286-34060-B1iRCK10,VCK11,21..ATM..(DLX,STD)199608

MOON MIST,TRIM1#,UPR

sub45286-34060

main45286-34060-E0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

OAK,TRIM4#,UPR

sub45286-34060

main45286-34060-J0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

BLUE,TRIM8#,UPR

sub45286-34060

main45286-34070-B0iVCK21..MTM..SR5;VCK1#,20..MTM..SR5..USA199310-199608

GRAY,TRIM1#,UPR

sub45286-34070

main45286-34070-B0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR

sub45286-34070

main45286-34070-B1iRCK10,VCK11,21..MTM..(DLX,STD)199608

W(COLLAPSIBLE TILT STEERING),MOON MIST,TRIM1#,UPR

sub45286-34070

main45286-34070-B1iVCK11,21..MTM..SR5199608

MOON MIST,TRIM1#,UPR

sub45286-34070

main45286-34070-E0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310

OAK,TRIM4#,UPR

sub45286-34070

main45286-34070-E0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,UPR

sub45286-34070

main45286-34070-J0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR

sub45286-34070

main45286-34070-J0iVCK21..MTM..SR5;VCK1#,20..MTM..SR5..USA199310-199608

BLUE,TRIM8#,UPR

sub45286-34070

main45286-34080-B0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPR

sub45286-34080

main45286-34080-B0iVCK21..ATM..SR5;VCK1#,20..ATM..SR5..USA199308-199608

GRAY,TRIM1#,UPR

sub45286-34080

main45286-34080-B1iRCK10,VCK11,21..ATM..(DLX,STD)199608

W(COLLAPSIBLE TILT STEERING),MOON MIST,TRIM1#,UPR

sub45286-34080

main45286-34080-B1iVCK11,21..ATM..SR5199608

MOON MIST,TRIM1#,UPR

sub45286-34080

main45286-34080-E0iVCK21..ATM..SR5;VCK1#,20..ATM..SR5..USA199308

OAK,TRIM4#,UPR

sub45286-34080

main45286-34080-E0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,UPR

sub45286-34080

main45286-34080-J0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

BLUE,TRIM8#,UPR

sub45286-34080

main45286-34080-J0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPR

sub45286-34080

main45287-34010-B0iVCK10,20..MTM..STD199208-199408

GRAY,TRIM1#,LWR

sub45287-34010

main45287-34010-E0iVCK10,20..MTM..STD..CND199208-199408

OAK,TRIM4#,LWR

sub45287-34010

main45287-34010-J0iVCK10,20..MTM..STD..CND199208-199408

BLUE,TRIM8#,LWR

sub45287-34010

main45287-34020-B0iVCK10,20..ATM..STD..CND199208-199408

GRAY,TRIM1#,LWR

sub45287-34020

main45287-34020-E0iVCK10,20..ATM..STD..CND199208-199408

OAK,TRIM4#,LWR

sub45287-34020

main45287-34020-J0iVCK10,20..ATM..STD199208-199408

BLUE,TRIM8#,LWR

sub45287-34020

main45287-34030-B0iVCK10,20..MTM..SR5199208-199408

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR

sub45287-34030

main45287-34030-B0iVCK10,20..MTM..STD..CND199208-199408

GRAY,TRIM1#,LWR

sub45287-34030

main45287-34030-E0iVCK10,20..MTM..STD..CND199208-199408

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,LWR

sub45287-34030

main45287-34030-E0iVCK10,20..MTM..STD..CND199208-199408

OAK,TRIM4#,LWR

sub45287-34030

main45287-34030-J0iVCK10,20..MTM..SR5..CND199208-199408

BLUE,TRIM8#,LWR

sub45287-34030

main45287-34030-J0iVCK10,20..MTM..SR5199208-199408

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR

sub45287-34030

main45287-34040-B0iVCK10,20..ATM..STD..CND199208-199408

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR

sub45287-34040

main45287-34040-B0iVCK10,20..ATM..SR5199208-199408

GRAY,TRIM1#,LWR

sub45287-34040

main45287-34040-E0iVCK10,20..ATM..SR5199208-199408

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,LWR

sub45287-34040

main45287-34040-E0iVCK10,20..ATM..SR5199208-199408

OAK,TRIM4#,LWR

sub45287-34040

main45287-34040-J0iVCK10,20..ATM..STD199208-199408

BLUE,TRIM8#,LWR

sub45287-34040

main45287-34040-J0iVCK10,20..ATM..STD199208-199408

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR

sub45287-34040

main45287-34050-B0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

GRAY,TRIM1#,LWR

sub45287-34050

main45287-34050-B1iRCK10,VCK11,21..MTM..(DLX,STD)199608

MOON MIST,TRIM1#,LWR

sub45287-34050

main45287-34050-E0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310

OAK,TRIM4#,LWR

sub45287-34050

main45287-34050-J0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

BLUE,TRIM8#,LWR

sub45287-34050

main45287-34060-B0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

GRAY,TRIM1#,LWR

sub45287-34060

main45287-34060-B1iRCK10,VCK11,21..ATM..(DLX,STD)199608

MOON MIST,TRIM1#,LWR

sub45287-34060

main45287-34060-E0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

OAK,TRIM4#,LWR

sub45287-34060

main45287-34060-J0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

BLUE,TRIM8#,LWR

sub45287-34060

main45287-34070-B0iVCK21..MTM..SR5;VCK1#,20..MTM..SR5..USA199310-199608

GRAY,TRIM1#,LWR

sub45287-34070

main45287-34070-B0iVCK21..MTM..SR5;VCK1#,20..MTM..SR5..USA199310-199608

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR

sub45287-34070

main45287-34070-B1iRCK10,VCK11,21..MTM..(DLX,STD)199608

MOON MIST,TRIM1#,LWR

sub45287-34070

main45287-34070-B1iVCK11,21..MTM..SR5199608

W(COLLAPSIBLE TILT STEERING),MOON MIST,TRIM1#,LWR

sub45287-34070

main45287-34070-E0iVCK21..MTM..SR5;VCK1#,20..MTM..SR5..USA199310

OAK,TRIM4#,LWR

sub45287-34070

main45287-34070-E0iVCK21..MTM..SR5;VCK1#,20..MTM..SR5..USA199310

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,LWR

sub45287-34070

main45287-34070-J0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

BLUE,TRIM8#,LWR

sub45287-34070

main45287-34070-J0iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310-199608

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR

sub45287-34070

main45287-34080-B0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308-199608

GRAY,TRIM1#,LWR

sub45287-34080

main45287-34080-B0iVCK21..ATM..SR5;VCK1#,20..ATM..SR5..USA199308-199608

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LWR

sub45287-34080

main45287-34080-B1iRCK10,VCK11,21..ATM..(DLX,STD)199608

W(COLLAPSIBLE TILT STEERING),MOON MIST,TRIM1#,LWR

sub45287-34080

main45287-34080-B1iRCK10,VCK11,21..ATM..(DLX,STD)199608

MOON MIST,TRIM1#,LWR

sub45287-34080

main45287-34080-E0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

W(COLLAPSIBLE TILT STEERING),OAK,TRIM4#,LWR

sub45287-34080

main45287-34080-E0iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

OAK,TRIM4#,LWR

sub45287-34080

main45287-34080-J0iVCK11,21..ATM..SR5199408-199608

BLUE,TRIM8#,LWR

sub45287-34080

main45287-34080-J0iVCK11,21..ATM..SR5199408-199608

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LWR

sub45287-34080

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35050iRCK10,VCK1#,2#199208

45636BPROTECTOR, INTERMEDIATE LINK JOINT

main45636-34010iRCK10,VCK1#199208

main45636-35040iVCK2#199208

45819RETAINER, TILT LEVER

main45819-22040iVCK10,20199208-199302

main45819-22060iVCK10,20..CND199302-199310

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-32030iVCK11,21;RCK10,VCK10,20..USA199310

main45820-35010iVCK10,20..CND199208-199408

45826LEVER, STEERING TILT

main45826-22050iVCK10,20199208-199310

45827ALEVER, STEERING TILT SUB

main45827-22030iRCK10,VCK1#,2#199208-199310

45831CSHAFT, TILT LEVER LOCK

main45831-22020iVCK10,20..CND199208-199310

45855BOLT, TILT STEERING, NO.1

main45856-22010iVCK10,20199208-199310

OD=9.989-9.998

45856BOLT, TILT STEERING, NO.2

main45856-22010iVCK10,20..CND199208-199310

OD=9.989-9.998

45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45860-35150iVCK2#199208

sub45860-35151

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iVCK10,20199208-199306

sub45865-12060

main45865-12060iRCK10,VCK1#,2#199306-199310

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iVCK10,20199208-199310

45870TUBE ASSY, STEERING COLUMN

main45870-34010iVCK10,20..MTM..STD199208-199408

main45870-34020iVCK10,20..ATM..STD..CND199208-199408

main45870-34030iVCK10,20..MTM..STD199208-199408

W(COLLAPSIBLE TILT STEERING)

main45870-34040iVCK10,20..ATM..SR5199208-199408

W(COLLAPSIBLE TILT STEERING)

main45870-34050iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310

main45870-34060iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

main45870-34070iVCK11,21..MTM..(DLX,STD);RCK10,VCK10,20..MTM..STD..USA199310

W(COLLAPSIBLE TILT STEERING)

main45870-34080iVCK11,21..ATM..DLX;RCK10,VCK10,20..ATM..STD..USA199308

W(COLLAPSIBLE TILT STEERING)

45880LEVER ASSY, STEERING TILT

main45880-35010iVCK10,20199208-199310

45880ABOLT(FOR STEERING TILT LEVER)

main90109-06162iVCK10,20..CND199208-199310

45880BSCREW(FOR STEERING TILT LEVER)

main93385-15010iVCK10,20199208-199310

45890APAWL ASSY, TILT STEERING

main45890-22090iVCK10,20..CND199208-199310

LH

main45890-34010iVCK10,20..CND199208-199310

RH

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-07003iRCK10,VCK1#,2#199208-199310

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-08010iRCK10,VCK1#,2#199208-199310

LH

main90507-12035iRCK10,VCK1#,2#199208-199310

RH

45893CSTOPPER, STEERING PAWL, RH

main45893-22030iVCK10,20..CND199208-199601

MARK 1

main45893-22040iVCK10,20..CND199208-199601

MARK 2

main45893-22050iVCK10,20199208-199601

MARK 3

main45893-22060iVCK10,20199208-199601

MARK 4

main45893-22070iRCK10,VCK1#,2#199208-199601

MARK 5

main45893-24010iRCK10,VCK11,21199601

MARK 1

main45893-24020iRCK10,VCK11,21199601

MARK 2

main45893-24030iRCK10,VCK11,21199601

MARK 3

main45893-24040iRCK10,VCK11,21199601

MARK 4

main45893-24050iRCK10,VCK11,21199601

MARK 5

main45893-24060iRCK10,VCK11,21199601

MARK 6

main45893-24070iRCK10,VCK11,21199601

MARK 7

45893DSTOPPER, STEERING PAWL, LH

main45893-20260iRCK10,VCK11,21199601

MARK A

main45893-20270iRCK10,VCK11,21199601

MARK B

main45893-20280iRCK10,VCK11,21199601

MARK C

main45893-20290iRCK10,VCK11,21199601

MARK D

main45893-20300iRCK10,VCK11,21199601

MARK E

main45893-20310iRCK10,VCK11,21199601

MARK F

main45893-20320iRCK10,VCK11,21199601

MARK G

main45893-22080iVCK10,20..CND199208-199601

MARK A

main45893-22090iRCK10,VCK1#,2#199208-199601

MARK B

main45893-22100iVCK10,20199208-199601

MARK C

main45893-22110iRCK10,VCK1#,2#199208-199601

MARK D

main45893-22120iVCK10,20199208-199601

MARK E

45897BOLT, STEERING LOCK SET

main45897-12020iVCK10,20199208-199310

9011906477

main90119-06477

9011908560

main90119-08560

9011910292

main90119-10292

9016450048

main90164-50048

9017910055

main90179-10055

9017910065

main90179-10065

9165160616

main91651-60616

9331514010

main93315-14010

9411070600

main94110-70600

9451200600

main94512-00600

9461410600

main94614-10600

9616000800

main96160-00800

50 parts on this diagram · 2 diagrams in section
