FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-35021×2iVCK2#199208-199606

main04438-35022×2iVCK21199606

sub04428-35010

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35011×2iVCK2#199208-199606

main04438-35012×2iVCK21199606

sub04438-35070

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-35010iVCK2#199208-199508

main43403-35020iVCK21199508

sub43403-26010

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-35010iVCK2#199208-199508

main43403-35020iVCK21199508

sub43403-26010

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-34010iVCK2#199208-199606

main43430-34011iVCK21199606

sub43430-34012

main43430-34020iVCK21199408-199606

W(*66)

main43430-34021iVCK21199606

W(*66)

sub43430-34022

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iVCK2#199208

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-34010iVCK2#199208-199606

main43430-34011iVCK21199606

sub43430-34012

main43430-34020iVCK21199408-199606

W(*66)

main43430-34021iVCK21199606

W(*66)

sub43430-34022

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iVCK2#199208

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iVCK2#199208

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iVCK2#199208

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iVCK2#199208

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39035iVCK2#199208-199508

main43460-39036iVCK21199508

main43460-39055iVCK21199408-199508

W(4WHEEL*66)

main43460-39056iVCK21199508

W(4WHEEL*66)

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-39035iVCK2#199208-199508

main43460-39036iVCK21199508

main43460-39055iVCK21199408-199508

W(4WHEEL*66)

main43460-39056iVCK21199508

W(4WHEEL*66)

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76002iVCK21199408

W(*66)

sub90304-76005

sub90316-60004

main90304-76003iVCK2#199208

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76002iVCK21199408

W(*66)

sub90304-76005

sub90316-60004

main90304-76003iVCK2#199208

9017912047

main90179-12047

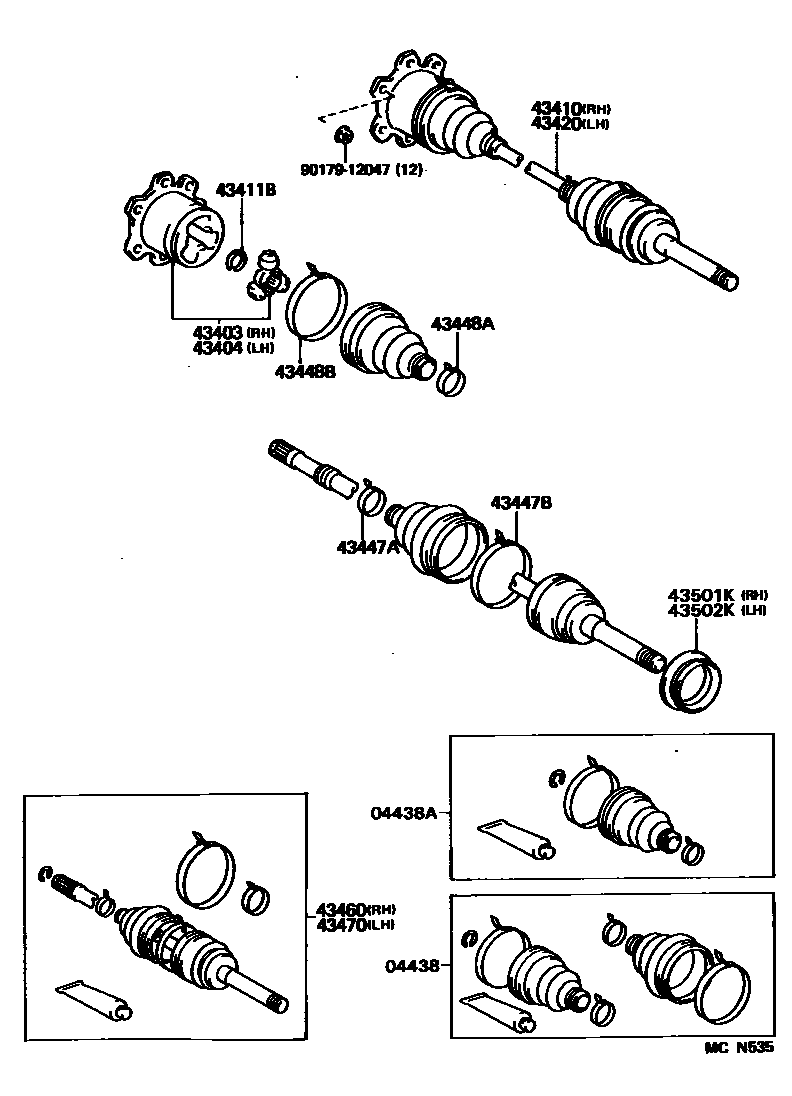

16 parts on this diagram · 1 diagram in section
