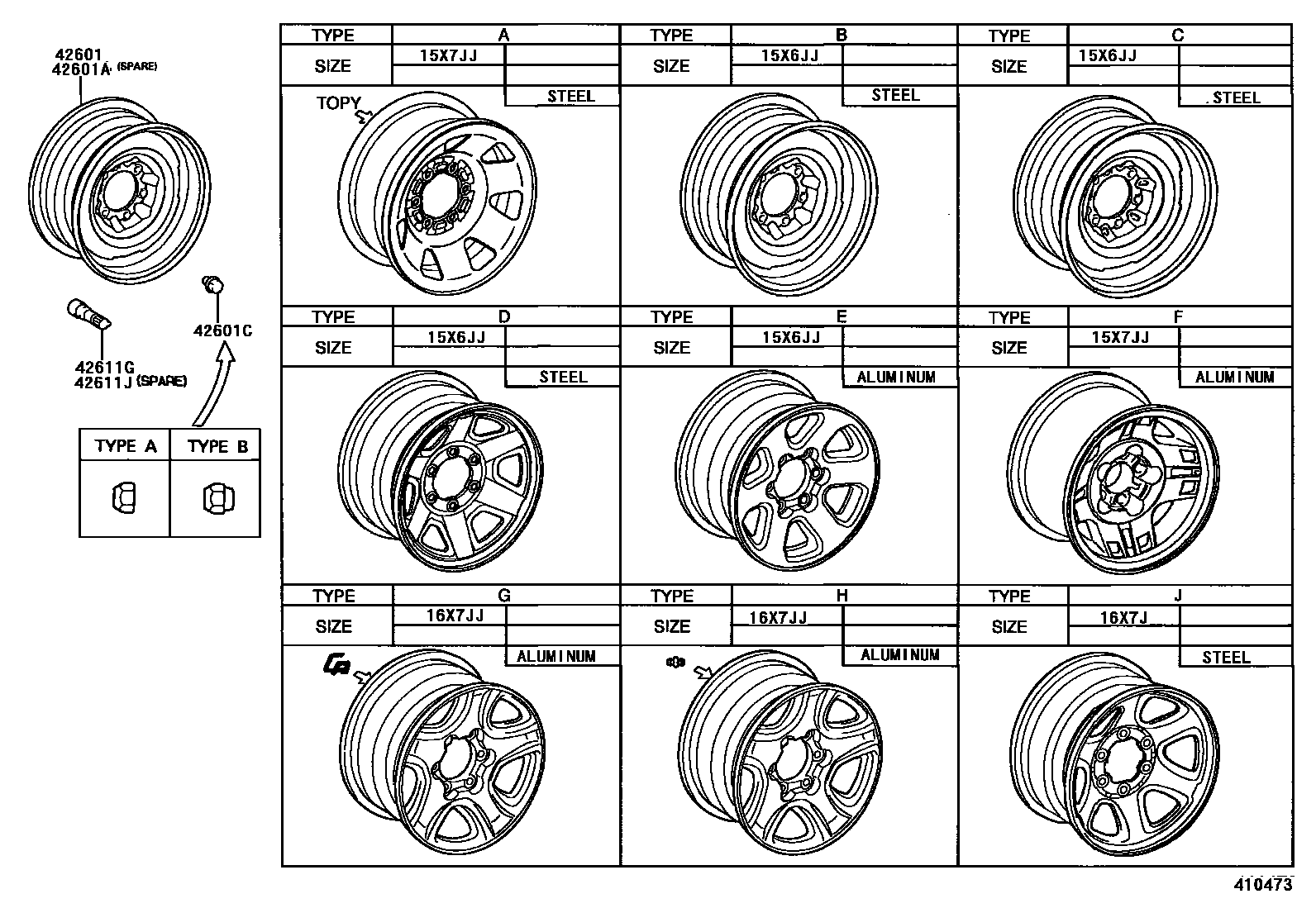

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42601-04020iVCK21199208-199508

15X7JJ,TYPE K:REFER TO ILLUSTRATION

main42601-0W010iVCK21199408

15X7JJ,TYPE L:REFER TO ILLUSTRATION

main42601-34010-01iRCK10,VCK1#..HLF..(DLX,STD)199208-199308

6JJX15,TYPE B,BLACK

main42601-34020-01iRCK10,VCK1#199208

6JJX15,TYPE C,BLACK

main42601-35620iVCK21199508-199608

15X7JJ, #,TYPE A

main42601-35640-03iVCK11,21..HLF199208-199608

15X6JJ,TYPE D,SILVER M.

main42601-35740iVCK21199608

16X7J,#,TYPE J

main42611-0W020iVCK21199608

16X7JJ CAPTIN,TYPE G

main42611-34010iVCK11..HLF199208-199608

15X6JJ, #,TYPE E:REFER TO ILLUSTRATION

main42611-35070iVCK21..RCB;VCK21..SR5199208-199608

15X7JJ,SILVER,TYPE F

main42611-60150iVCK21199608

16X7JJ CHUO SEIKI,TYPE H

main42611-60170iVCK21199704

16X7JJ U-MOLD,TYPE M:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42601-04020iVCK2#199208-199508

15X7JJ,TYPE K:REFER TO ILLUSTRATION

main42601-34010-01iVCK10..HLF199208-199308

6JJX15,TYPE B,BLACK

main42601-34020-01iRCK10,VCK1#199208

6JJX15,TYPE C,BLACK

main42601-35620iVCK21199408-199608

15X7JJ, #,TYPE A

main42601-35640-03iVCK2#199208

15X6JJ,TYPE D,SILVER M.

main42601-35740iVCK21199608

16X7J,#,TYPE J

42601CNUT, HUB (FOR AXLE)

main90942-01051iRCK10,VCK1#;VCK21..XTR..SR5..CND199208

TYPE A

main90942-01075iVCK11..HLF199608

TYPE B

main90942-01075iVCK2#..RCB;VCK21..XTR..USA;VCK21..XTR..DLX..CND199208

main90942-01077iVCK11,21..HLF199208-199608

W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iRCK10,VCK1#,2#199208

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iRCK10,VCK1#,2#199208

5 parts on this diagram · 4 diagrams in section
