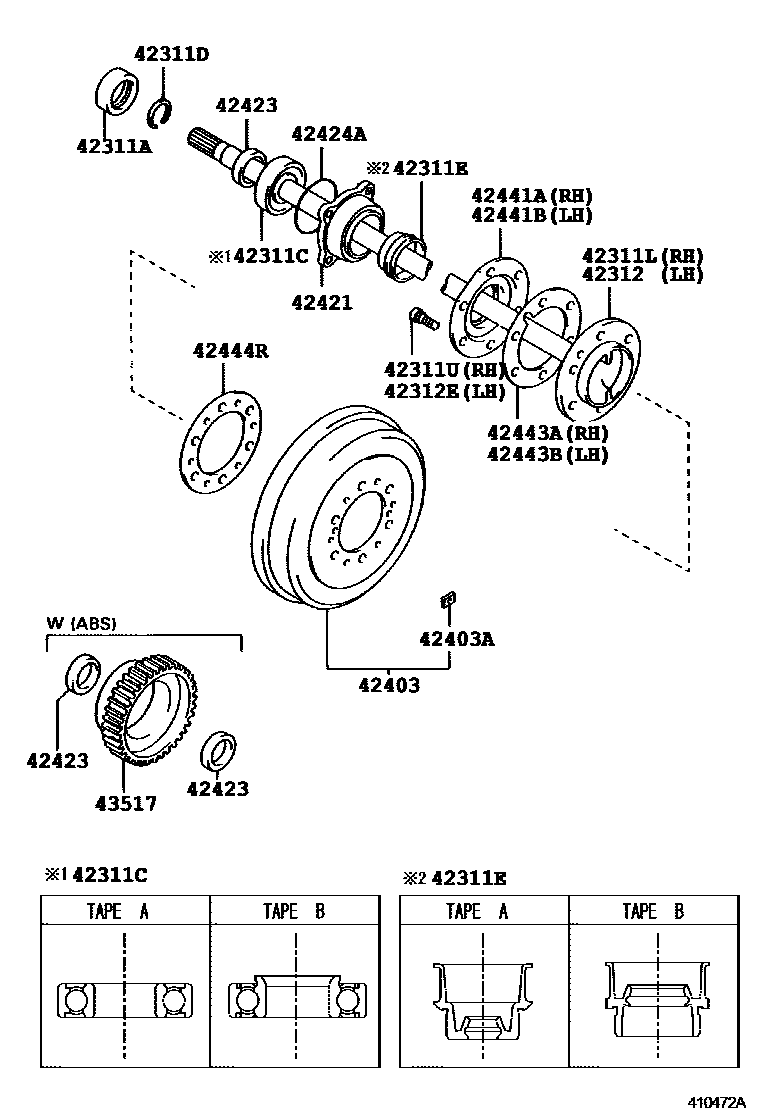

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iRCK10,VCK1#,2#199208

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020×2iRCK10,VCK1#,2#199208-199803

TYPE A:REFER TO ILLUSTRATION

main90363-40068×2iRCK10,VCK11,21199803

TYPE B:REFER TO ILLUSTRATION

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iRCK10,VCK1#,2#199208

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iRCK10,VCK1#,2#199208-199803

TYPE A:REFER TO ILLUSTRATION

main90313-54001×2iRCK10,VCK11,21199803

TYPE B:REFER TO ILLUSTRATION

42311LSHAFT, REAR AXLE, RH

main42311-34010iRCK10,VCK1#,2#199208-199803

main42311-34020iVCK11,21199408-199803

W(ABS)

main42311-34030iRCK10,VCK11,21199803

main42311-34040iVCK11,21199803

W(ABS)

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02052×6iRCK10,VCK1#,2#199208

42312SHAFT, REAR AXLE, LH

main42311-34010iRCK10,VCK1#,2#199208-199803

main42311-34020iVCK11,21199408-199803

W(ABS)

main42311-34030iRCK10,VCK11,21199803

main42311-34040iVCK11,21199803

W(ABS)

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02052×6iRCK10,VCK1#,2#199208

42403DRUM SUB-ASSY, REAR BRAKE

main42431-34010×2iVCK1#..10T199208

main42431-35180×2iRCK10,VCK1#,2#..HLF199208

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iRCK10,VCK1#,2#199208

10G

main90937-01118iRCK10,VCK1#,2#199208

20G

main90937-01119iRCK10,VCK1#,2#199208

30G

main90937-01450iRCK10,VCK1#,2#199208

40G

main90937-01451iRCK10,VCK1#,2#199208

50G

42421CASE, REAR AXLE BEARING

main42421-34010×2iRCK10,VCK11199803

main42421-35030×2iVCK2#199208-199803

main42421-35040×2iRCK10,VCK1#199208-199803

main42421-35050×2iVCK21199803

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×4iVCK11,21199408

W(4WHEEL*66)

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2iRCK10,VCK1#,2#199208

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-35020iRCK10,VCK1#,2#199208

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-35020iRCK10,VCK1#,2#199208

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-55020iRCK10,VCK1#,2#199208

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-55020iRCK10,VCK1#,2#199208

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35050×2iRCK10,VCK1#,2#199208

43517ROTOR, SKID CONTROL, REAR

main43517-26010×2iVCK11,21199408-199412

main43517-35010×2iVCK11,21199412

19 parts on this diagram · 1 diagram in section
