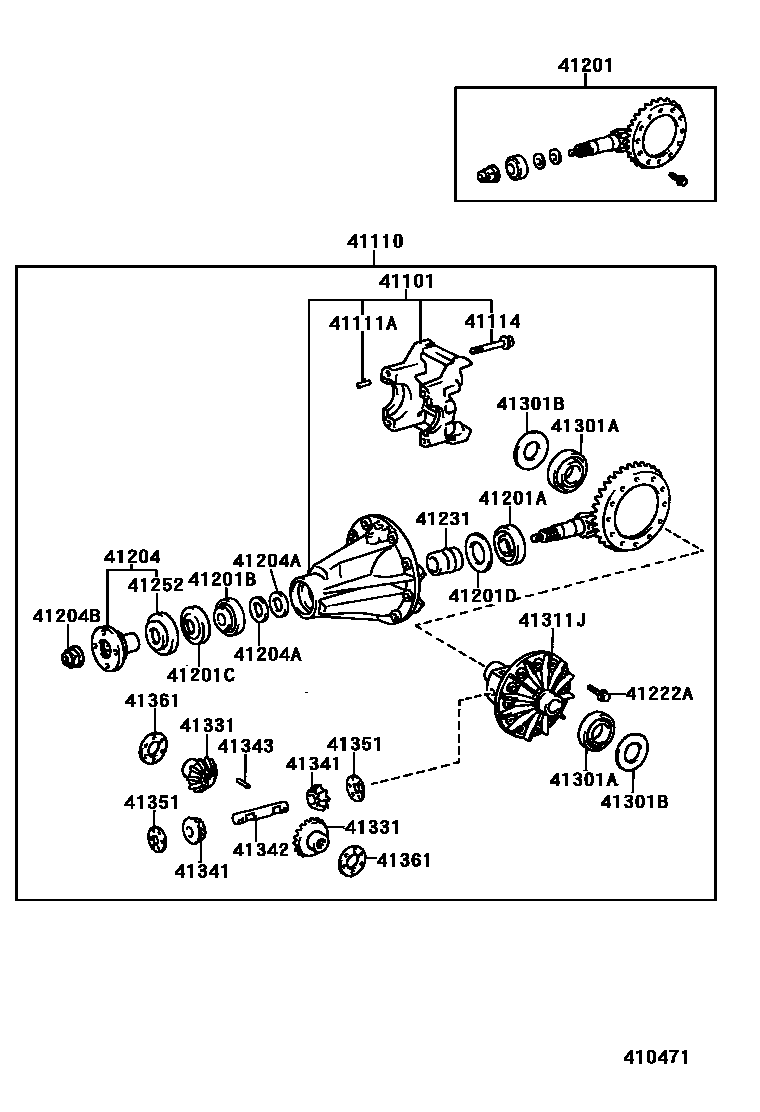

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
W(*66 & 7JJX15 DISC WHEEL)
W(7JJX15 DISC WHEEL)
W(*66)
W(7JJX15 DISC WHEEL)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=49:10=4.900,W(7JJX15 DISC WHEEL)
*FGR=49:10=4.900,W(*66 & 7JJX15 DISC WHEEL)
*FGR=49:10=4.900,W(7JJX15 DISC WHEEL)
*FGR=49:12=4.083
*FGR=49:12=4.083,W(*66)
*FGR=47:11=4.273
*FGR=47:11=4.273,W(*66)
*FGR=47:11=4.273
*FGR=49:11=4.455
*FGR=49:11=4.455,W(*66)
*FGR=49:11=4.455
*FGR=47:10=4.700,W(7JJX15 DISC WHEEL)
*FGR=47:10=4.700
*FGR=47:10=4.700,W(*66)
*FGR=47:10=4.700,W(7JJX15 DISC WHEEL)
*FGR=47:10=4.700,W(*66 & 7JJX15 DISC WHEEL)
*FGR=47:10=4.700
*FGR=47:13=3.615
*FGR=47:13=3.615,W(*66)
*FGR=49:13=3.769
*FGR=49:13=3.769,W(6JJX15 DISC WHEEL)
*FGR=49:13=3.769,W(*66 & 6JJX15 DISC WHEEL)
*FGR=47:12=3.916,W(6JJX15 DISC WHEEL)
sub41110-34221
*FGR=43:10=4.300,W(7JJX15 DISC WHEEL)
*FGR=43:10=4.300,W(265/70R16 TIRE)
*FGR=43:11=3.909
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=47:11=4.273
*FGR=49:11=4.456
*FGR=47:10=4.700
*FGR=47:10=4.700,W(7JJX15 DISC WHEEL)
*FGR=49:10=4.900,W(7JJX15 DISC WHEEL)
*FGR=47:13=3.615
*FGR=49:13=3.769
*FGR=49:13=3.769,W(6JJX15 DISC WHEEL)
*FGR=47:12=3.916,W(6JJX15 DISC WHEEL)
sub41201-80142
*FGR=43:10=4.300,W(7JJX15 DISC WHEEL)
*FGR=43:10=4.300,W(265/70R16 TIRE)
*FGR=43:11=3.909
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
T=2.72
T=2.74
T=2.76
T=2.78
T=2.80
T=2.82
T=2.84
T=2.86
T=2.88
T=2.90
T=2.92
T=2.94
T=2.96
T=2.98
T=3.00
T=3.02
T=3.04
T=3.06
T=3.08
T=3.10
T=3.12
T=3.14
T=3.16
T=3.18
T=3.20
T=3.22
T=3.24
T=3.26
T=3.28
T=3.30
T=3.32
T=3.34
T=3.36
T=3.38
T=3.40
T=3.42
T=3.44
T=3.46
T=3.48
41311JCASE, REAR DIFFERENTIAL
41331GEAR, REAR DIFFERENTIAL SIDE
sub41331-34011
41341PINION, REAR DIFFERENTIAL
sub41341-34011
41342SHAFT, REAR DIFFERENTIAL PINION
sub41342-34011
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
