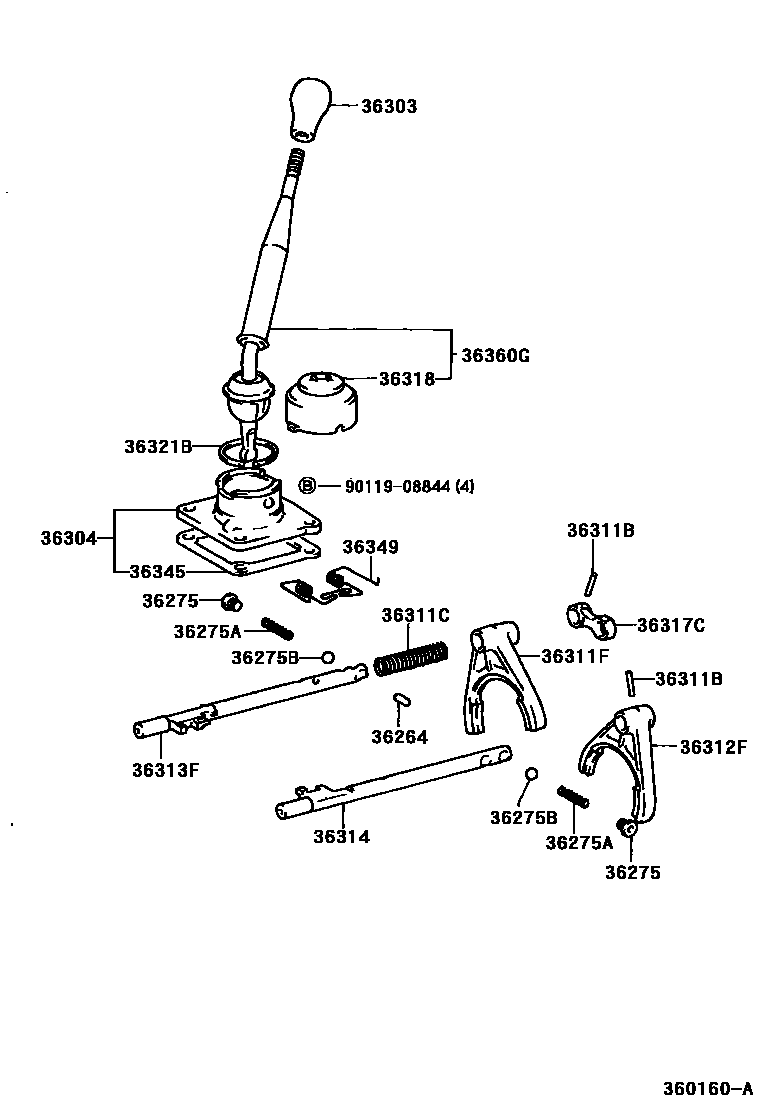

TRANSFER LEVER & SHIFT ROD
36264PIN OR ROLLER, SHIFT INTER-LOCK
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
RH
LH
36275BBALL, SHIFT DETENT
OD=9.52,STEEL
36303KNOB SUB-ASSY, SHIFT LEVER
GRAY,TRIM1#
MOON MIST,TRIM1#
OAK,TRIM4#
BLUE,TRIM8#
W(*CRC),MOON MIST,TRIM1#
MOON MIST,TRIM1#
OAK,TRIM4#
W(*CRC),OAK,TRIM4#
MEDIUM BLUE,TRIM8#
W(*CRC),MEDIUM BLUE,TRIM8#
W(*CRC),MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=22
36311CSPRING, COMPRESION (FOR SHIFT FORK)
36311FFORK, TRANSFER GEAR SHIFT, NO.1
W(*ADD)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36317CSTOPPER, TRANSFER SHIFT SHAFT
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
9011908844
main90119-08844
19 parts on this diagram · 2 diagrams in section
