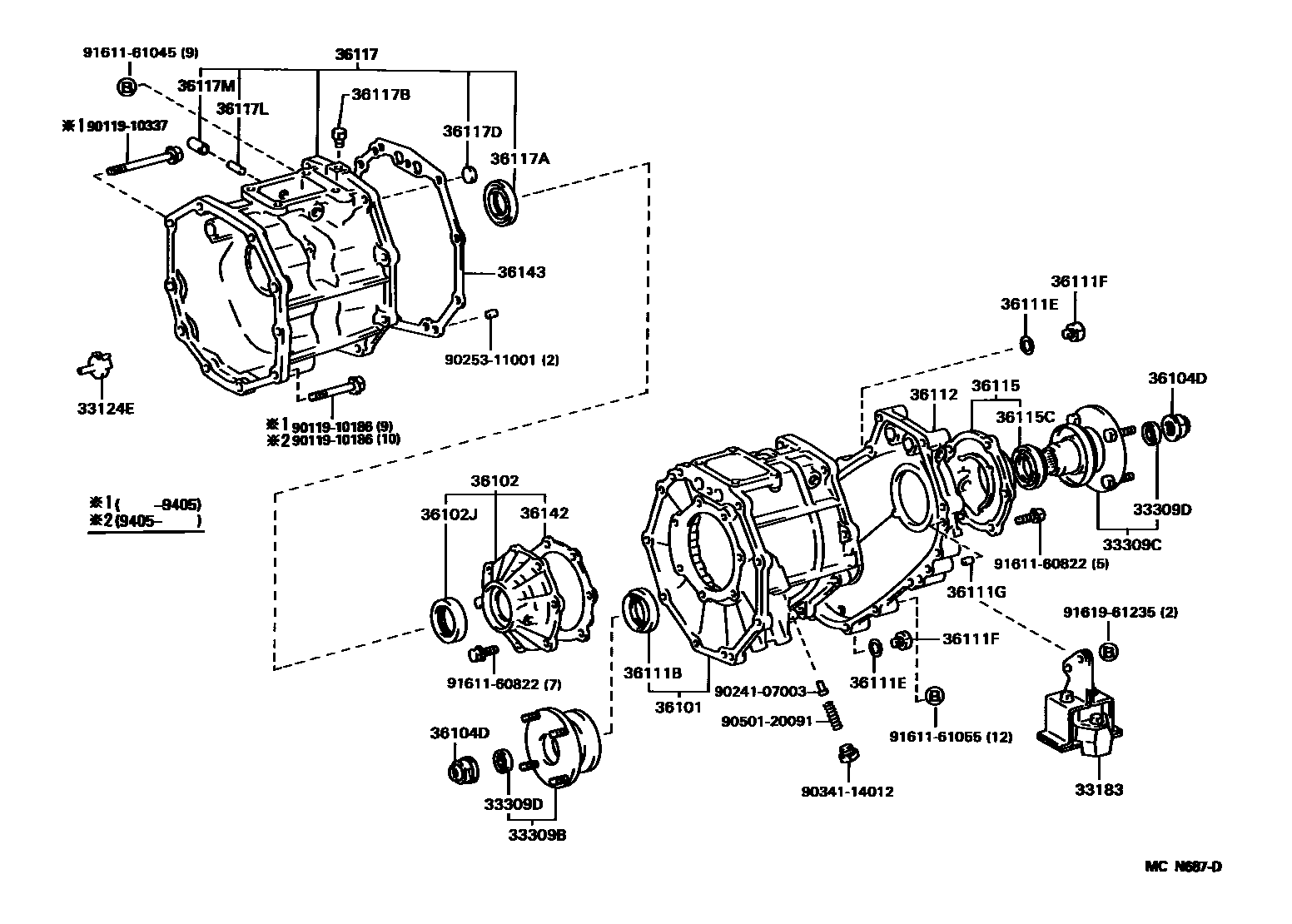

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-35100iVCK2#..MTM199405

main33124-36010iVCK20..MTM199208-199405

33183DAMPER, TRANSFER DYNAMIC

main33183-34010iVCK20..ATM199208-199408

main33183-34020iVCK21..MTM..DLX;VCK21..XTR..MTM..SR5199408-199503

main33183-34030iVCK21..ATM199408-199412

sub33183-34031

main33183-34031iVCK21..ATM..DLX;VCK21..XTR..ATM..SR5199412-199503

main33183-35020iVCK20..MTM199208-199408

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35061iVCK2#199208

sub33309-35063

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35080iVCK2#199208-199601

sub33309-35100

main33309-35100iVCK21199601

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iVCK2#199208

36101CASE SUB-ASSY, TRANSFER

main36101-35050iVCK2#..MTM199208-199601

main36101-35060iVCK2#..ATM199208-199601

main36101-35110iVCK21..MTM199601

sub36101-35111

sub33309-35062

main36101-35120iVCK21..ATM199601

sub36101-35121

sub33309-35062

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35011iVCK2#199208-199506

sub36102-35012

main36102-35012iVCK21199506-199601

main36102-35050iVCK21199601

sub36102-35051

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40007iVCK2#199208-199506

main90311-40021iVCK21199506

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iVCK2#199208

36111CASE, TRANSFER

main36111-35080iVCK21..RCB..ATM;VCK21..ATM..SR5;VCK21..XTR..ATM..DLX..USA199601

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iVCK2#..ATM199208

FORK SHAFT SIDE

main90311-41006iVCK20..ATM199208-199406

FR OUTPUT SIDE

sub90311-41008

main90311-41008iVCK2#..MTM199406

FR OUTPUT SIDE

sub90311-41011

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iVCK2#..MTM199208-199601

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iVCK2#..ATM199208-199601

FILLER

main90341-18006iVCK21199601

main90341-18057iVCK2#199208-199601

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iVCK2#199208

L=14,OD=10

36112CASE, TRANSFER, REAR

main36112-35020iVCK2#199208-199601

main36112-35070iVCK21199601

36115HOUSING, TRANSFER EXTENSION

main36105-35020iVCK2#199208

sub36105-35040

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41005iVCK20199208-199406

sub90311-41007

main90311-41007iVCK2#199406

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35150iVCK20..MTM199208-199405

main36107-35180iVCK2#..MTM199405

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-40007iVCK2#..MTM199208

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03075iVCK21..MTM199506

main90930-03114iVCK2#..MTM199208-199506

36117DPLUG(FOR TRANSFER ADAPTER)

main90331-21003iVCK2#..MTM199208

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iVCK2#199208

sub90406-T0007

36117MCAP(FOR TRANSFER ADAPTER)

main90339-04024iVCK2#..MTM199208

36142GASKET, TRANSFER COVER

main36142-35010iVCK2#199208-199601

36143GASKET, TRANSFER CASE, FRONT

main36143-35030iVCK2#..MTM199208

9011910186

main90119-10186

9011910337

main90119-10337

9024107003

main90241-07003

9025311001

main90253-11001

9034114012

main90341-14012

9050120091

main90501-20091

9161160822

main91611-60822

9161161045

main91611-61045

9161161055

main91611-61055

9161961235

main91619-61235
