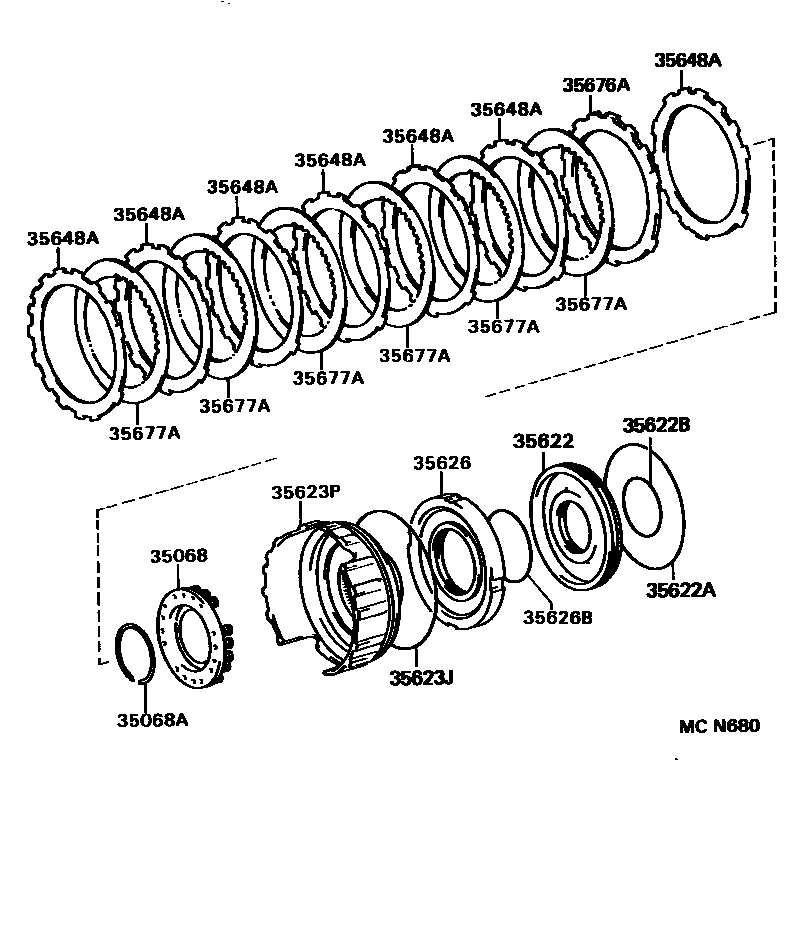

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-30011iRCK10,VCK1#,2#..ATM199208-199612

main35068-50010iRCK10,VCK11,21..ATM199612

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iRCK10,VCK1#,2#..ATM199208

35622PISTON, BRAKE, NO.2

main35622-30010iRCK10,VCK1#,2#..ATM199208

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99084iRCK10,VCK11,21..ATM199612

main90301-99193iRCK10,VCK1#,2#..ATM199208-199612

35622BRING (FOR BRAKE PISTON INNER)

main90301-56007iRCK10,VCK11,21..ATM199612

main90301-57188iRCK10,VCK1#,2#..ATM199208-199612

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99192iRCK10,VCK1#,2#..ATM199208

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-30012iRCK10,VCK1#,2#..ATM199208

35626SLEEVE, BRAKE REACTION

main35626-30020iRCK10,VCK1#,2#..ATM199208

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iRCK10,VCK11,21..ATM199612

main90301-68191iRCK10,VCK1#,2#..ATM199208-199612

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031×6iRCK10,VCK1#..ATM; VCK2#..ATM199208

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30100iRCK10,VCK11,21..ATM199708

T=5.2

main35676-30110iRCK10,VCK11,21..ATM199708

T=5.4

main35676-50010iRCK10,VCK1#,2#..ATM199208

T=5.0

main35676-50020iRCK10,VCK1#,2#..ATM199208

T=4.8

main35676-50030iRCK10,VCK1#,2#..ATM199208

T=4.6

main35676-50040iRCK10,VCK1#,2#..ATM199208

T=4.4

main35676-50050iRCK10,VCK1#,2#..ATM199208

T=4.2

main35676-50060iRCK10,VCK1#,2#..ATM199208

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110×6iRCK10,VCK1#,2#..ATM199208-199708

main35677-30130×6iRCK10,VCK11,21..ATM199708

12 parts on this diagram · 1 diagram in section
