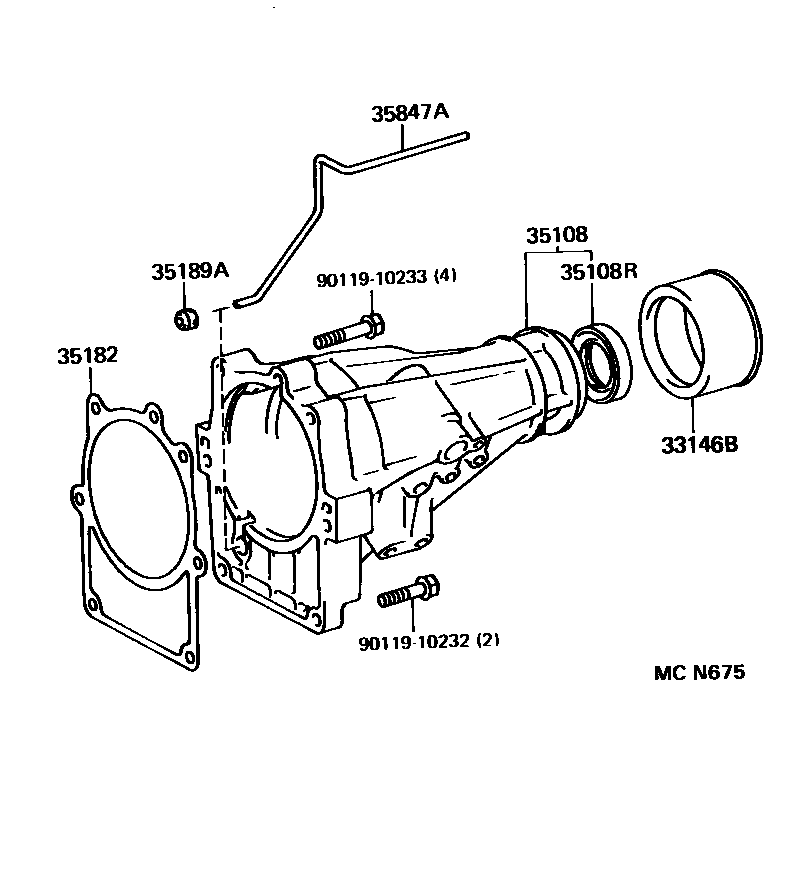

EXTENSION HOUSING (ATM)

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30010iRCK10,VCK11..ATM199408-199411

main33146-30020iVCK10..ATM199208-199408

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35030iRCK10,VCK1#..ATM199208-199501

main35108-35050iRCK10,VCK11..ATM199501

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iRCK10,VCK1#..ATM199208

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iRCK10,VCK1#..ATM199208

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iRCK10,VCK1#..ATM199208

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iRCK10,VCK1#..ATM199208

9011910232

main90119-10232

9011910233

main90119-10233

8 parts on this diagram · 1 diagram in section
