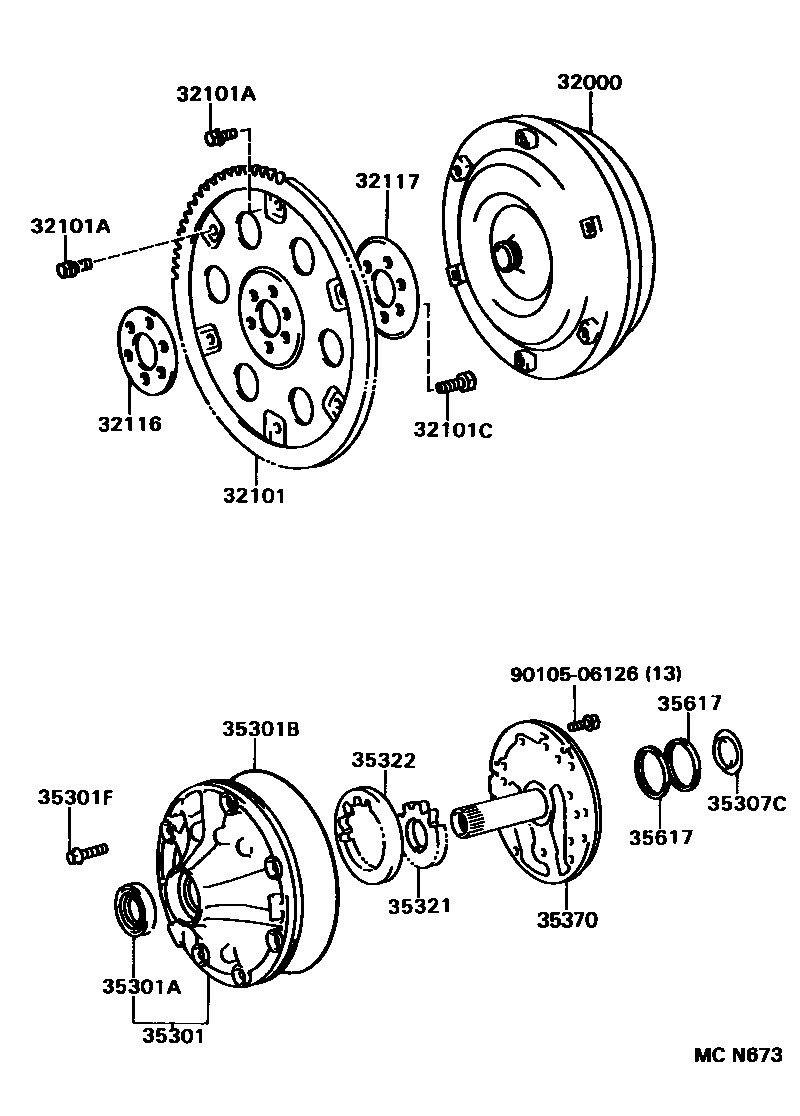

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-35090iVCK10,20..ATM199208-199408

main32000-35130iRCK10..ATM199408

main32000-35140iVCK11,21..ATM199408

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iRCK10..ATM199408

main32101-35010iVCK1#,2#..ATM199208

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009×5iRCK10,VCK1#,2#..ATM199208

*9-1.25PX12.8-8.8,YELLOW

main90119-09010iRCK10,VCK1#,2#..ATM199208

*9-1.25PX12.8-9,GREEN

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iVCK1#,2#..ATM199208

main90105-10276×10iRCK10..ATM199408

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iRCK10..ATM199408

main32116-32020iVCK1#,2#..ATM199208

32117SPACER, DRIVE PLATE, REAR

main32117-26010iRCK10..ATM199408

main32117-32020iVCK1#,2#..ATM199208

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30040iRCK10,VCK1#,2#..ATM199208

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iRCK10,VCK1#,2#..ATM199208

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iRCK10,VCK1#,2#..ATM199208

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iRCK10,VCK1#,2#..ATM199208

*8-1.25PX35-35

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iRCK10,VCK1#,2#..ATM199208-199708

T=3.7

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iRCK10,VCK1#,2#..ATM199309

T=9.440-9.449

main35321-12080iRCK10,VCK1#,2#..ATM199309

T=9.450-9.459

main35321-12090iRCK10,VCK1#,2#..ATM199208

T=9.460-9.470

main35321-12100iRCK10,VCK1#,2#..ATM199309

T=9.471-9.480

main35321-12110iRCK10,VCK1#,2#..ATM199309

T=9.481-9.490

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iRCK10,VCK1#,2#..ATM199309

T=9.440-9.449

main35322-12070iRCK10,VCK1#,2#..ATM199309

T=9.450-9.459

main35322-12080iRCK10,VCK1#,2#..ATM199208

T=9.460-9.470

main35322-12090iRCK10,VCK1#,2#..ATM199309

T=9.471-9.480

main35322-12100iRCK10,VCK1#,2#..ATM199309

T=9.481-9.490

35370SHAFT ASSY, STATOR

main35370-30031iRCK10,VCK1#,2#..ATM199208

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iRCK10,VCK1#,2#..ATM199208

9010506126

main90105-06126

16 parts on this diagram · 1 diagram in section
