TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

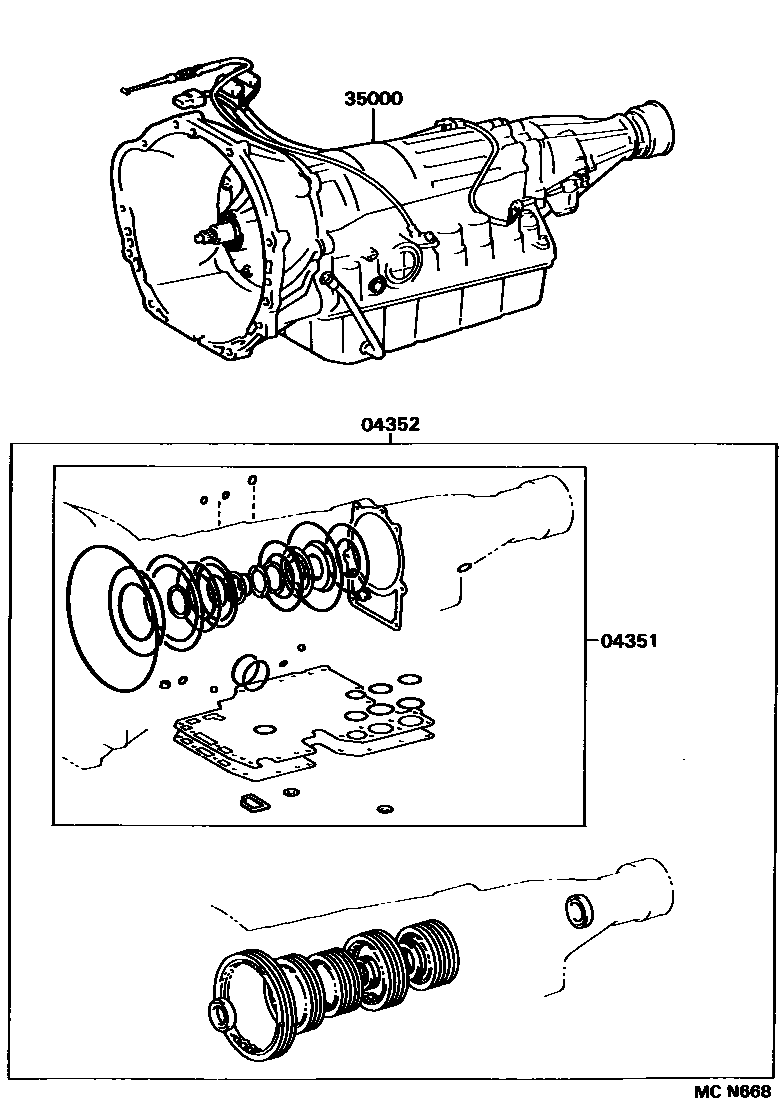

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30093i199208-199408

main04351-30190i199408

main04351-34010i199208-199408

main04351-34030i199408

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-30020i199408-199708

main04352-34010i199208-199408

main04352-34030i199408-199708

main04352-34040i199708

main04352-35042i199310-199408

main04352-35130i199708

35000TRANSMISSION ASSY, AUTOMATIC

main35000-34010i199208-199308

main35000-34011i199310-199408

main35000-34020i199208-199308

W(6JJX15 DISC WHEEL)

main35000-34021i199308-199310

W(6JJX15 DISC WHEEL)

main35000-34030i199208-199308

main35000-34031i199308-199408

main35000-34040i199208-199408

main35000-34080i199408-199503

main35000-34081i199503-199708

main35000-34082i199708

main35000-34090i199408-199708

main35000-34091i199708

main35000-34100i199408-199608

main35000-34101i199608-199708

main35000-34102i199708

3 parts on this diagram · 2 diagrams in section
