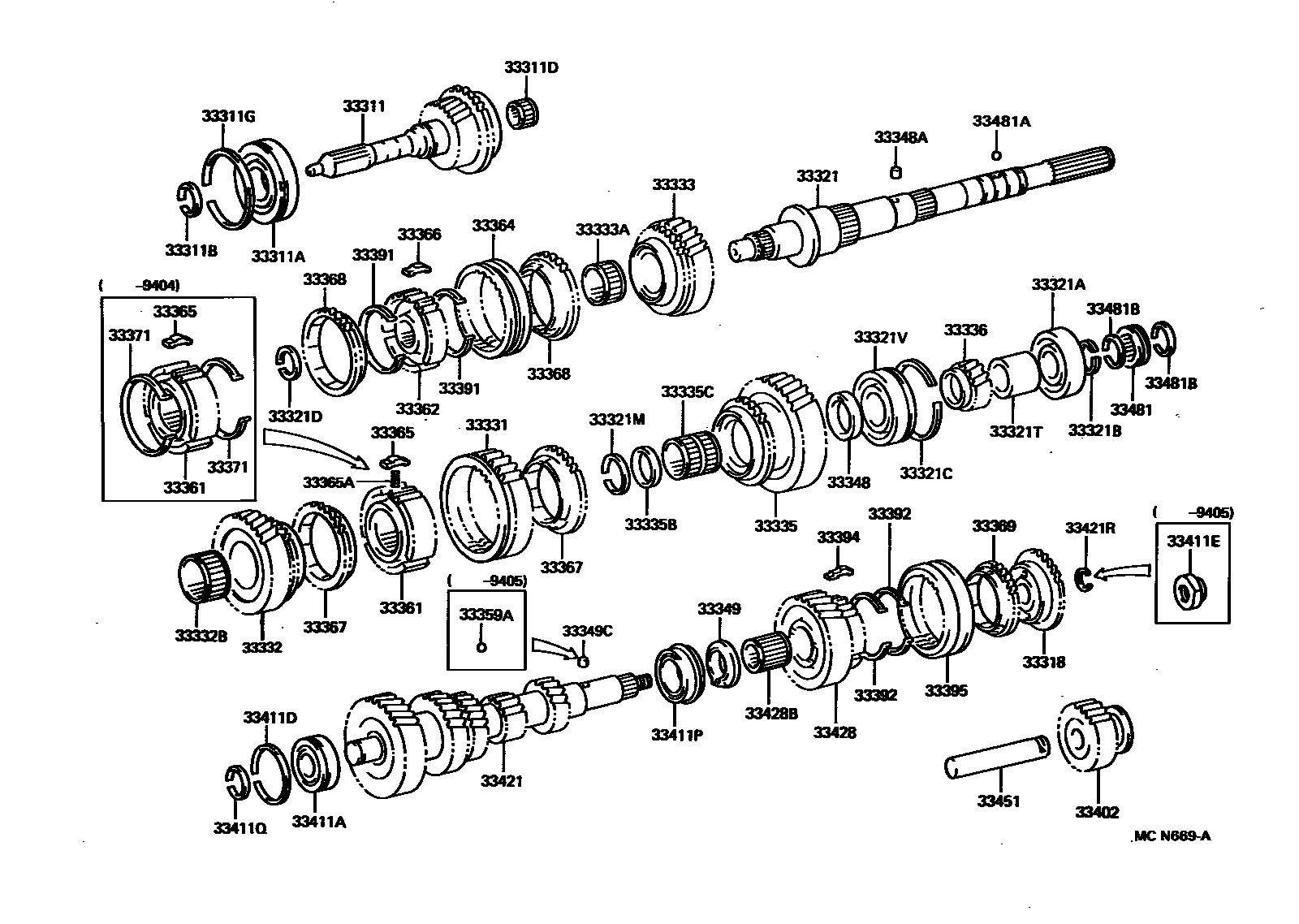

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
sub33301-30H00
sub33301-30H10
sub33301-30H20
sub33301-30H30
sub33301-30H40
sub33301-30H50
sub33301-30H60
sub33301-30H70
sub33301-30H80
sub33301-30H90
sub33301-60120
sub33301-35110
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
sub33321-35210
sub33362-35060
sub90520-26072
sub90520-26073
sub90520-26074
sub90520-26075
sub90520-26076
sub90520-26077
sub90520-26078
sub33321-35190
sub33321-35141
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
T=0.95-1.05,NO MARK
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.75-1.80,MARK C-1
T=1.86,MARK 11
T=1.92,MARK 12
T=1.98,MARK 13
T=2.04,MARK 14
T=2.10,MARK 15
T=1.80-1.85,MARK D
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A
T=2.35,MARK B
T=2.40,MARK C
T=2.45,MARK D
T=2.50,MARK E
T=2.55,MARK F
T=2.60,MARK G
33321TSPACER (FOR OUTPUT SHAFT)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335BSPACER(FOR 1ST GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
3RD GEAR SIDE
4TH GEAR SIDE
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A
T=2.05,MARK B
T=2.10,MARK C
T=2.15,MARK D
T=2.20,MARK E
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
33421GEAR, COUNTER
sub33301-30H10
sub33301-30H30
sub33421-60150
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub33421-60180
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85,MARK A
T=2.90,MARK B
T=2.95,MARK C
T=3.00,MARK D
T=3.05,MARK E
T=3.10,MARK F
T=3.15,MARK G
33428BBEARING (FOR COUNTER 5TH GEAR)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=11,MARK 11X28-30
N=10,MARK 10X31-33
N=11,MARK 11X31-33
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.5
56 parts on this diagram · 5 diagrams in section
