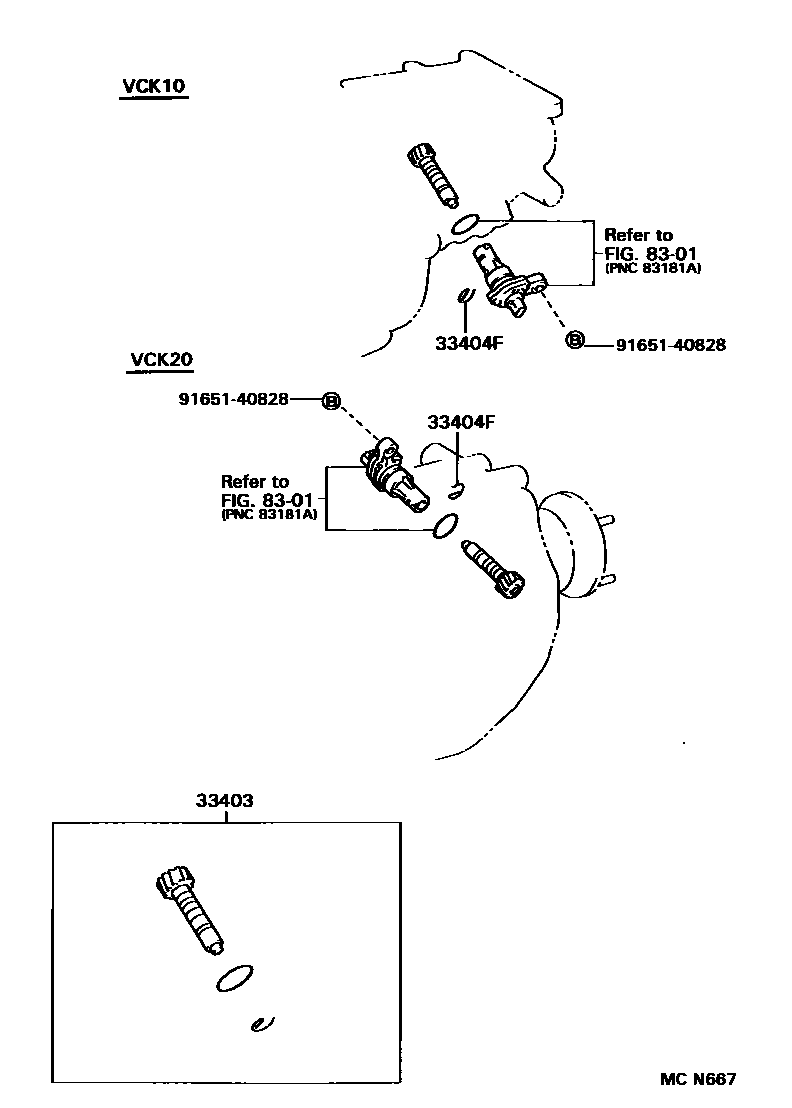

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1R150,R150F 0002 1R150,R150F,W56,W59

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19255iVCK10..HLF..MTM199308-199408

N=32,MARK 32:11

main33403-29105iVCK11,21..MTM199408

N=30,MARK 30:11

main33403-29115iVCK10..HLF..MTM..STD199308-199408

N=33,MARK 33:11

main33403-29125iVCK20..MTM;VCK10..10T..MTM199308-199408

N=32,MARK 32:10

main33403-29315iVCK20..MTM;VCK10..10T..MTM199208-199308

N=32,MARK 32:10

main33403-39245iRCK10..MTM199310

N=29,MARK 29:11

main33403-39415iVCK10..HLF..MTM199208-199308

N=33,MARK 33:11

main33403-39425iVCK10..HLF..MTM199208-199308

N=32,MARK 32:11

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iRCK10,VCK1#,2#..MTM199308

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRCK10,VCK1#,2#..MTM199208

8301METER

→ Go to FIG 83-01

9165140828

main91651-40828

5 parts on this diagram · 2 diagrams in section
