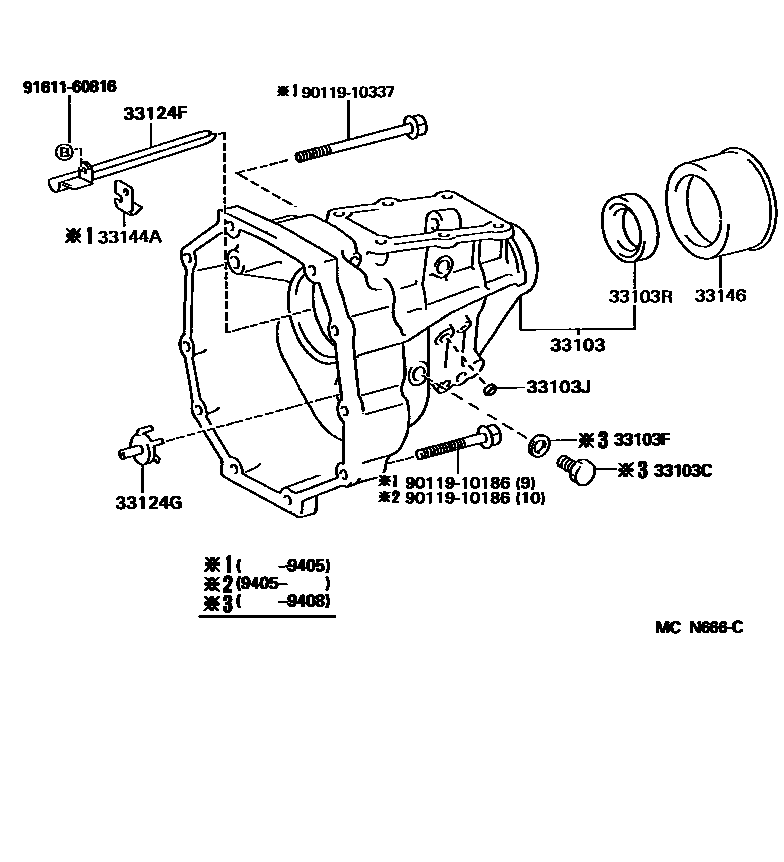

EXTENSION HOUSING (MTM)

0001 1R150 0002 1W56,W59

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-14061iVCK10..MTM199208-199211

main33103-22110iVCK10..MTM199211-199301

main33103-22120iVCK10..MTM199301-199405

main33103-30201iRCK10..MTM199310

main33103-35170iVCK10..MTM199405-199408

main33103-35180iVCK11..MTM199408

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18006iVCK10..MTM199208-199408

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18008iVCK10..MTM199208-199408

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iVCK1#..MTM199405

main96411-41800iVCK10..MTM199208-199405

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iRCK10..MTM199310

main90311-40001iVCK1#..MTM199208

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33106-30040iRCK10..MTM199310

main33124-35050iVCK10..MTM199208-199405

main33124-35100iVCK1#..MTM199405

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-35090iVCK1#..MTM199405

main33124-36010iVCK10..MTM199208-199405

33144ADEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-14010iVCK10..MTM199208-199405

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iVCK10..MTM199405-199408

main33146-30020iRCK10,VCK10..MTM199208-199405

9011910186

main90119-10186

9011910337

main90119-10337

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
