TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

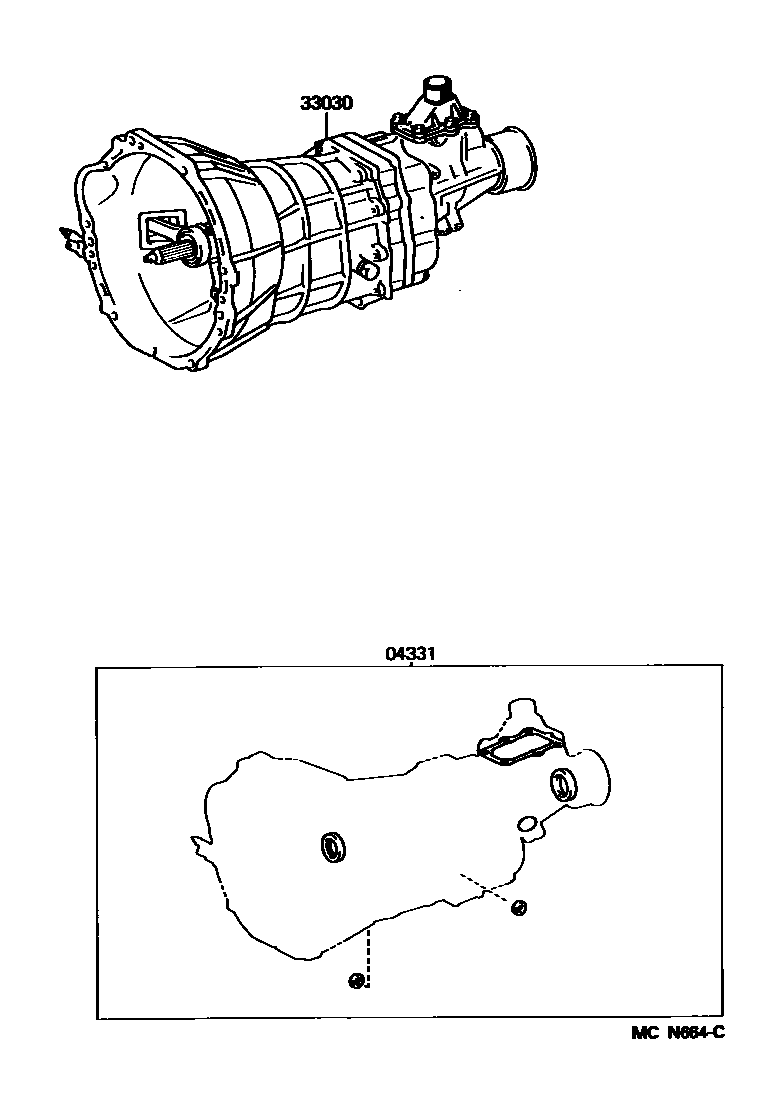

Parts diagram
04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL
main04331-34010i199208-199405
sub04331-34011
main04331-34020i199208-199405
sub04331-34021
main04331-35220i199405
sub04331-35350
main04331-35230i199405
main04331-35260i199310
33030TRANSMISSION UNIT ASSY, MANUAL
main33030-34011i199310-199508
main33030-34012i199508
main33030-34030i199405-199408
main33030-34040i199405-199408
main33030-34050i199405-199408
main33030-34060i199408
main33030-34070i199408-199608
sub33530-34050
main33030-34071i199608
main33030-3D340i199208-199405
main33030-3D350i199208-199405
main33030-3D360i199208-199405

2 parts on this diagram · 3 diagrams in section
