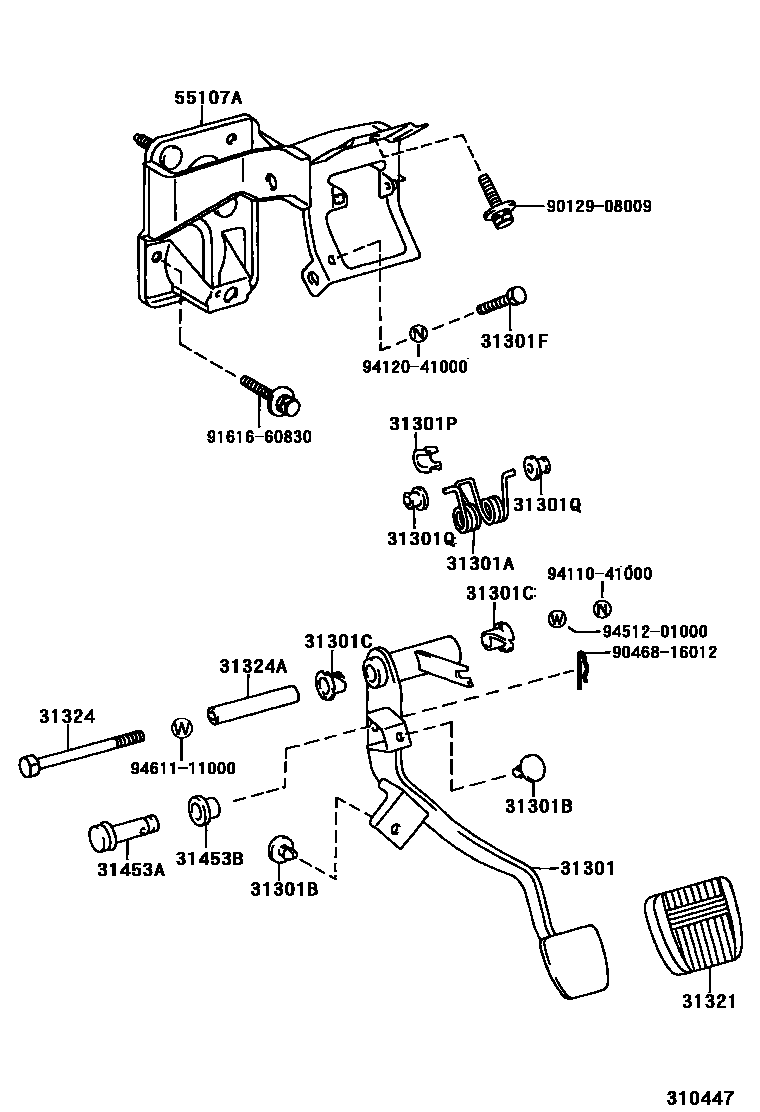

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-34010iRCK10,VCK1#,2#..MTM199208

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35020iRCK10,VCK10,20..MTM199208-199408

main90905-08003iRCK10,VCK11,21..MTM199408

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iRCK10,VCK1#,2#..MTM199208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iRCK10,VCK1#,2#..MTM199208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iRCK10,VCK1#,2#..MTM199208

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-04002iRCK10,VCK1#,2#..MTM199208

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-04009×2iRCK10,VCK1#,2#..MTM199208

31321PAD, CLUTCH PEDAL

main31321-14020iRCK10,VCK1#,2#..MTM199208

31324SHAFT, CLUTCH PEDAL

main90101-10113iRCK10,VCK11,21..MTM199709

main91121-51085iRCK10,VCK1#,2#..MTM199208-199709

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10103iRCK10,VCK1#,2#..MTM199208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iRCK10,VCK1#,2#..MTM199208

L=27

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iRCK10,VCK1#,2#..MTM199208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-34010iRCK10,VCK1#,2#..MTM199208-199708

main55107-34011iRCK10,VCK11,21..MTM199708-199710

main55107-34030iRCK10,VCK11,21..MTM199710

9012908009

main90129-08009

9046816012

main90468-16012

9161660830

main91616-60830

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

9461111000

main94611-11000

20 parts on this diagram · 4 diagrams in section
