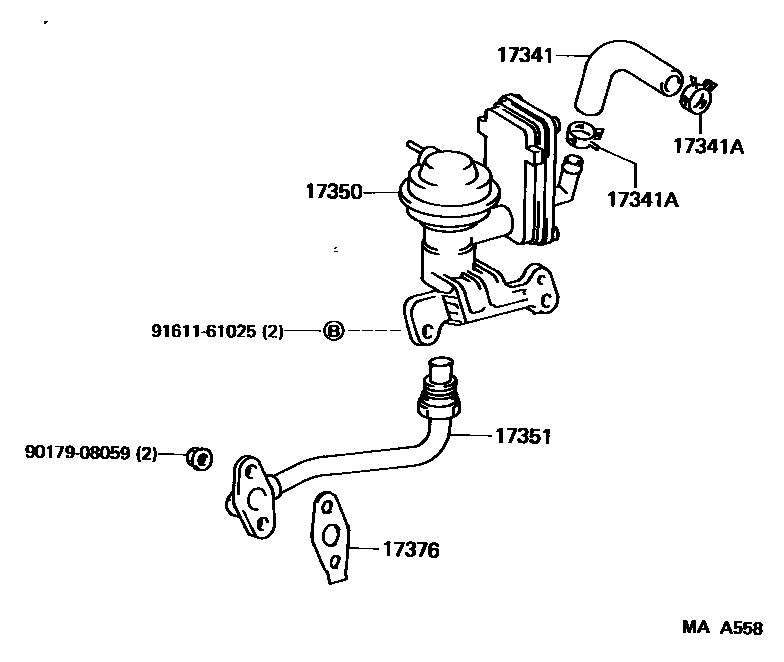

MANIFOLD AIR INJECTION SYSTEM

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-65040i3VZE..VCK10,20199208-199408

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-23003i3VZE..VCK10,20199208-199408

sub96134-42300

17350VALVE ASSY, REED

main17350-65011i3VZE..VCK10,20199208-199408

17351MANIFOLD, AIR INJECTION

main17306-65010i3VZE..VCK10,20199208-199408

17376GASKET, AIR TUBE, NO.1

main25628-65010i3VZE..VCK10,20199208-199408

9017908059

main90179-08059

9161161025

main91611-61025

7 parts on this diagram · 1 diagram in section
