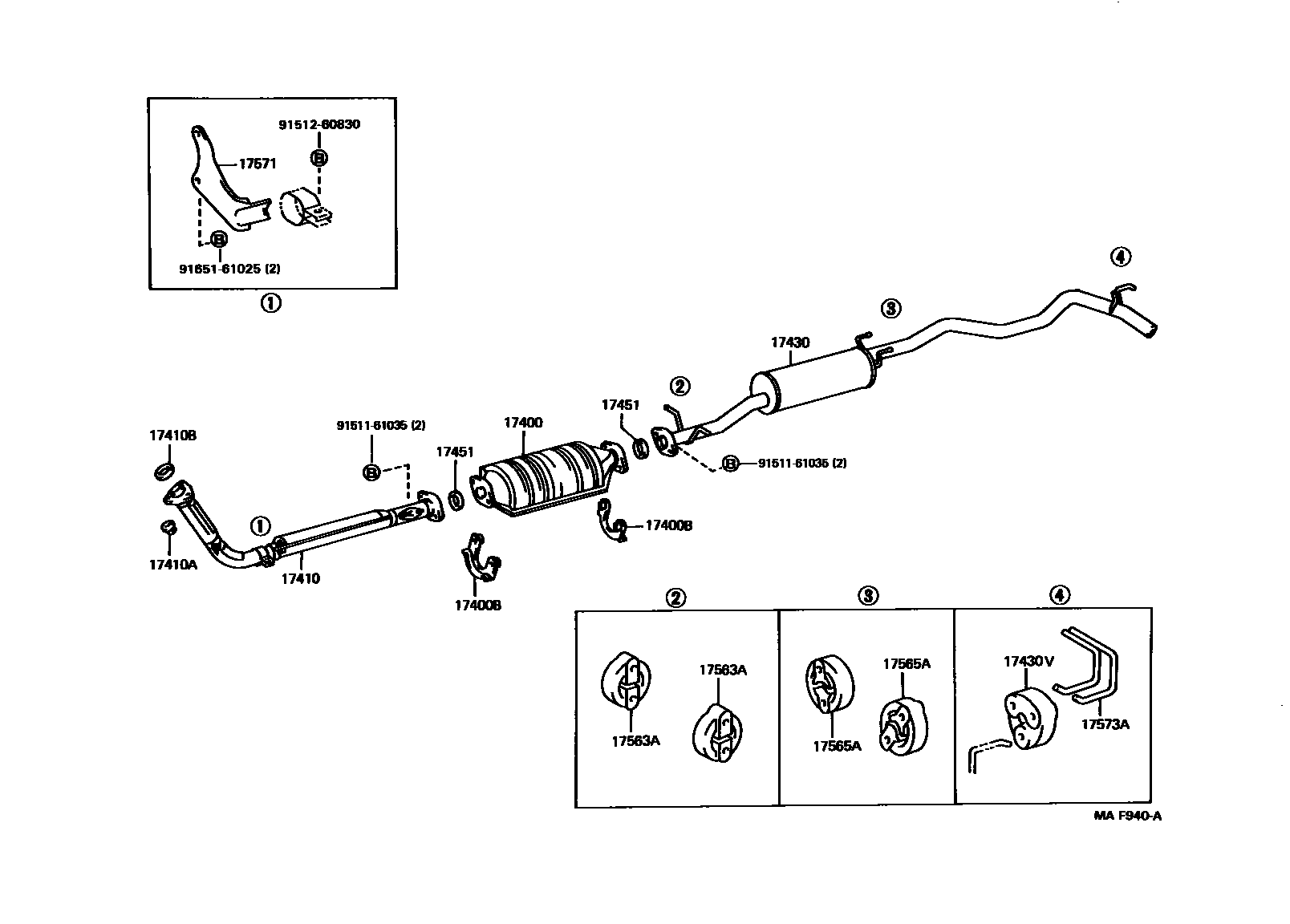

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17400BRETAINER, EXHAUST PIPE
RR
FR
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
FRONT
REAR
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9151161035
main91511-61035
9151260830
main91512-60830
9165161025
main91651-61025
15 parts on this diagram · 5 diagrams in section
