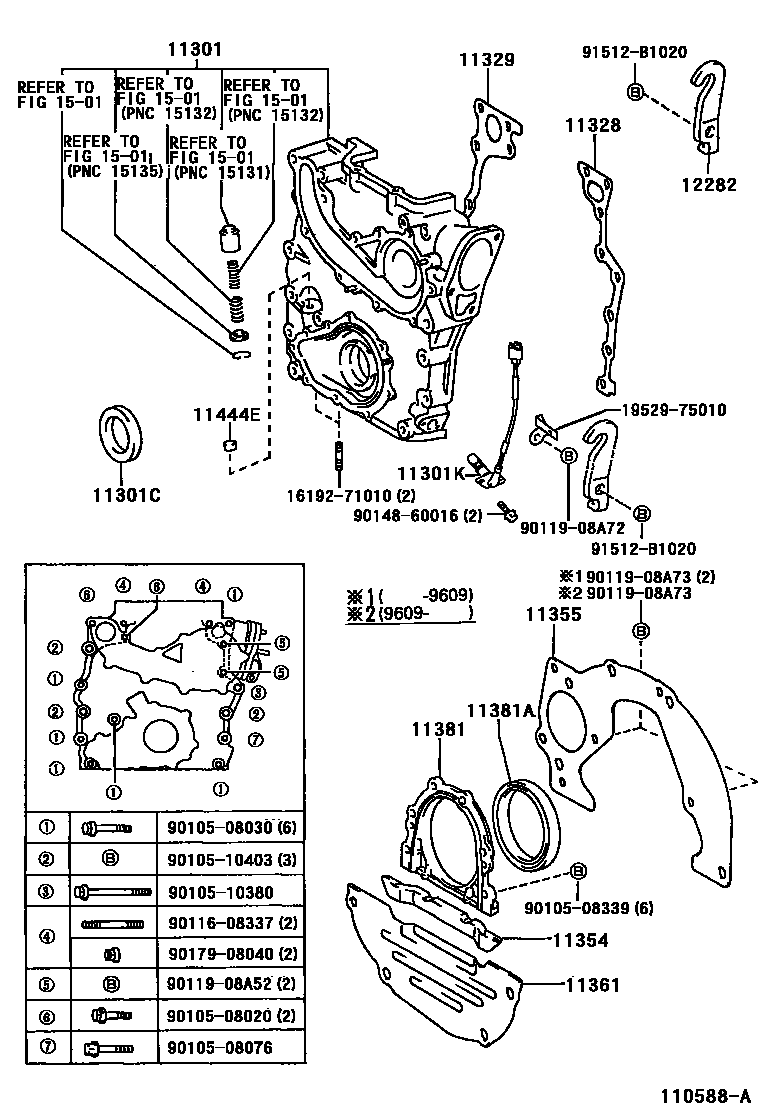

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-75020i3RZFE..RCK10199310-199704

main11301-75021i3RZFE..RCK10199704

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-48014i3RZFE..RCK10199310

11301KSENSOR, CRANK POSITION

main90919-05016i3RZFE..RCK10199310-199807

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-75020i3RZFE..RCK10199310

11329GASKET, TIMING GEAR REAR COVER

main11329-75020i3RZFE..RCK10199310

11354SEAL, FLYWHEEL HOUSING DUST

main11354-75010i3RZFE..RCK10199310

11355PLATE, REAR END

main11355-65010i3VZE..VCK10,20199208-199405

main11355-65011i3VZE,5VZFE..VCK1#,2#199405

main11355-75010i3RZFE..RCK10199310

11361COVER, FLYWHEEL HOUSING UNDER

main11361-65010i3VZE..VCK10,20199208-199403

main11361-65011i3VZE,5VZFE..VCK1#,2#199403

main11361-75020i3RZFE..RCK10199310

11381RETAINER, ENGINE REAR OIL SEAL

main11381-62010i3VZE,5VZFE..VCK1#,2#199208

main11381-75010i3RZFE..RCK10199310

11381ASEAL, ENGINE REAR OIL

main90311-88003i3RZFE..RCK10199310

main90311-92006i3VZE,5VZFE..VCK1#,2#199208

11444EPLUG, HOLE

main11444-75020i3RZFE..RCK10199501-199807

main90334-10009i3RZFE..RCK10199310-199501

12282HANGER, ENGINE, NO.2

main12282-62030i5VZFE..VCK11,21199408

main12282-75020i3RZFE..RCK10199501-199506

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1619271010

main16192-71010

1952975010CLAMP

main19529-75010

9010508020

main90105-08020

9010508030

main90105-08030

9010508076

main90105-08076

9010508339

main90105-08339

9010510380

main90105-10380

9010510403

main90105-10403

9011608337

main90116-08337

9011908A52

main90119-08A52

9011908A72

main90119-08A72

9011908A73

main90119-08A73

9014860016

main90148-60016

9017908040

main90179-08040

91512B1020

main91512-B1020

28 parts on this diagram · 3 diagrams in section
