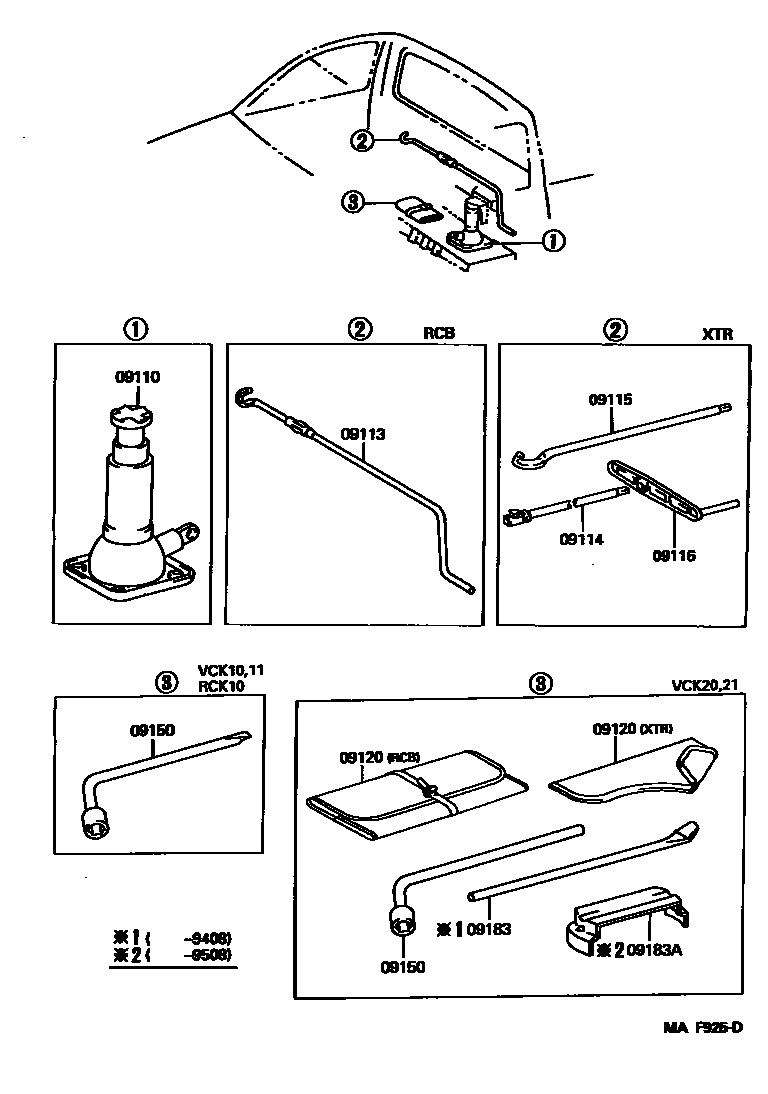

STANDARD TOOL

09110JACK ASSY

main09110-34010iRCK10,VCK11199607

main09110-34020iVCK21199607

main09111-34010iRCK10,VCK1#199208-199607

main09111-34020iVCK2#199208-199607

09113HANDLE, JACK

main09113-34010iRCK10,VCK1#,2#..RCB199208

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60050×2iVCK11,21..XTR199410-199508

main09114-60060×2iVCK11,21..XTR199508

09115ROD SUB-ASSY, JACK HANDLE

main09115-34010iVCK21..XTR199410-199508

09116LEVER, JACK HANDLE

main09116-34010iVCK11,21..XTR199410

09120BAG, TOOL

main09120-32010iVCK21..RCB199501-199508

main09120-34010iVCK2#..RCB199208-199501

main09120-34020iVCK11,21..XTR199410

09150WRENCH, HUB NUT BOX

main09150-35020iVCK10199208-199305

main09150-40010iRCK10,VCK1#199305-199508

main09150-60020iVCK2#199208-199508

main09150-AD020iVCK21..XTR;RCK10,VCK11199508

09183WRENCH, WHEEL CAP

main09183-00030iVCK20199208-199408

09183AREPLACER, WHEEL CAP

main09183-00030iVCK21199408-199508

main09183-35010iVCK20199208-199408

9 parts on this diagram · 1 diagram in section
