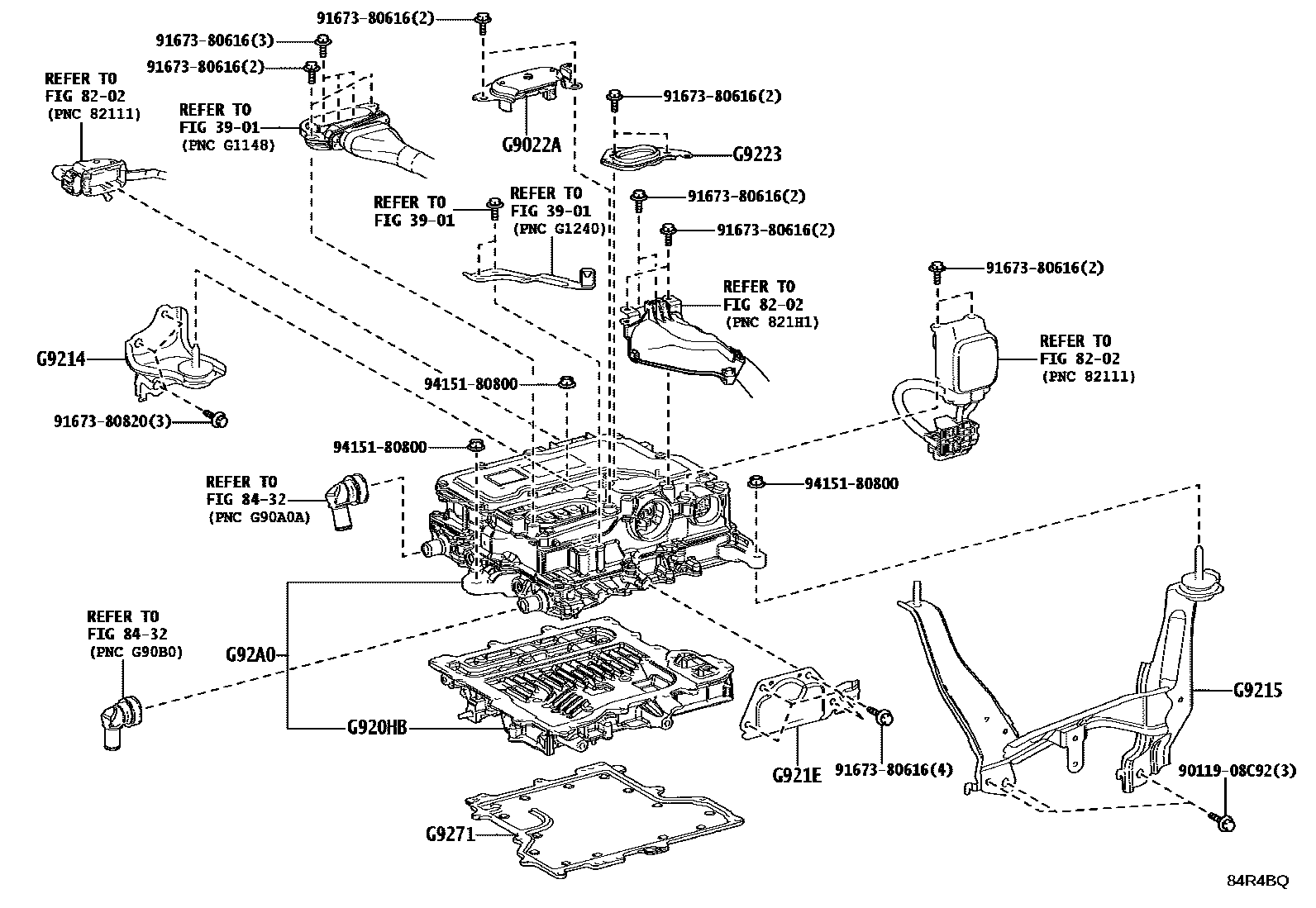

HEV INVERTER

3901

8202

8432

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902234010iVJH310202411

G920HBCONVERTER SET, HYBRID VEHICLE

mainG920H60010iVJH310202411

G9214BRACKET, INVERTER, NO.1

mainG921460020iVJH310202411

G9215BRACKET, INVERTER, NO.2

mainG921560020iVJH310202411

G921EPROTECTOR, INVERTER

mainG921E0C010iVJH310202411

G9223COVER, INVERTER TERMINAL

mainG922334010iVJH310202411

G9271COVER, CONVERTER

mainG927134010iVJH310202411

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A060040iVJH310202411

9011908C92

main90119-08C92

9167380616

main91673-80616

9167380820

main91673-80820

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
