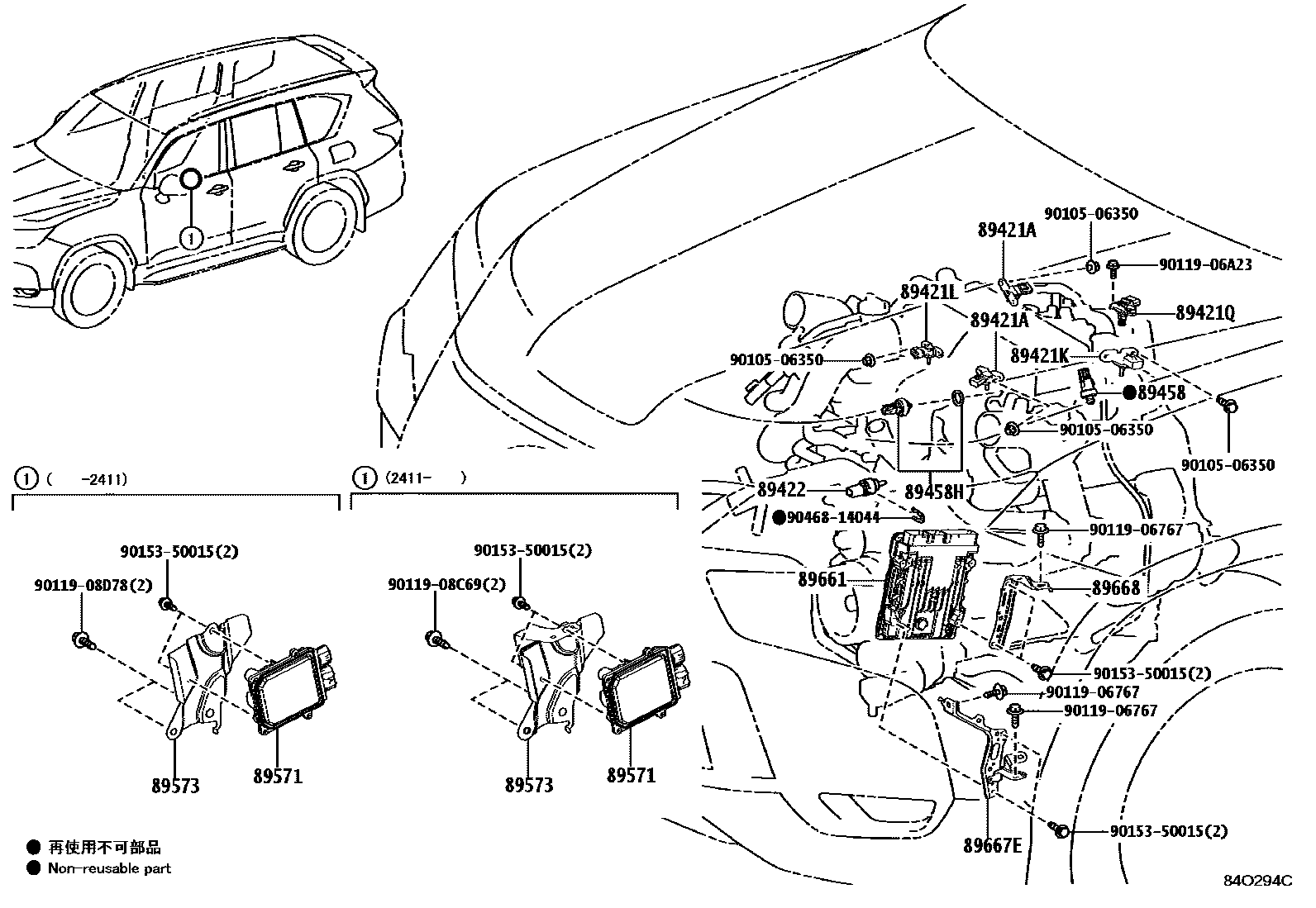

ELECTRONIC FUEL INJECTION SYSTEM

89421ASENSOR, TURBO PRESSURE

main89421-60050×2iVJA310202112-202411

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-33010iVJA310,VJH310202411

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78020iVJA310,VJH310202411

89421QSENSOR, TURBO PRESSURE, NO.3

main89421-78010iVJA310202112-202411

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33040iVJA310202112-202411

89458SENSOR, FUEL PRESSURE

main89458-60030iVJA310202112-202411

main89458-60040iVJH310202411

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iVJA310,VJH310202411

89571COMPUTER, FUEL PUMP CONTROL

main89571-35010iVJA310,VJH310202411

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-60080iVJA310202112-202411

main89573-60120iVJA310,VJH310202411

89661COMPUTER, ENGINE CONTROL

main89661-6A560iVJA310202411

DENSO

main89666-60F00iVJA310202112-202209

DENSO,*614

main89666-60F01iVJA310202210-202310

DENSO,*614

main89666-60W50iVJH310202411

DENSO

main89666-60Z90iVJA310202310-202311

DENSO,*614

main89666-60Z91iVJA310202311-202404

DENSO,*614

main89666-60Z92iVJA310202405-202411

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60300iVJA310202112-202411

main89667-60350iVJA310,VJH310202411

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60320iVJA310202112-202411

main89668-60370iVJA310,VJH310202411

9010506350

main90105-06350

9011906767

main90119-06767

9011906A23

main90119-06A23

9011908C69

main90119-08C69

9011908D78

main90119-08D78

9015350015

main90153-50015

9046814044

main90468-14044

19 parts on this diagram · 1 diagram in section
