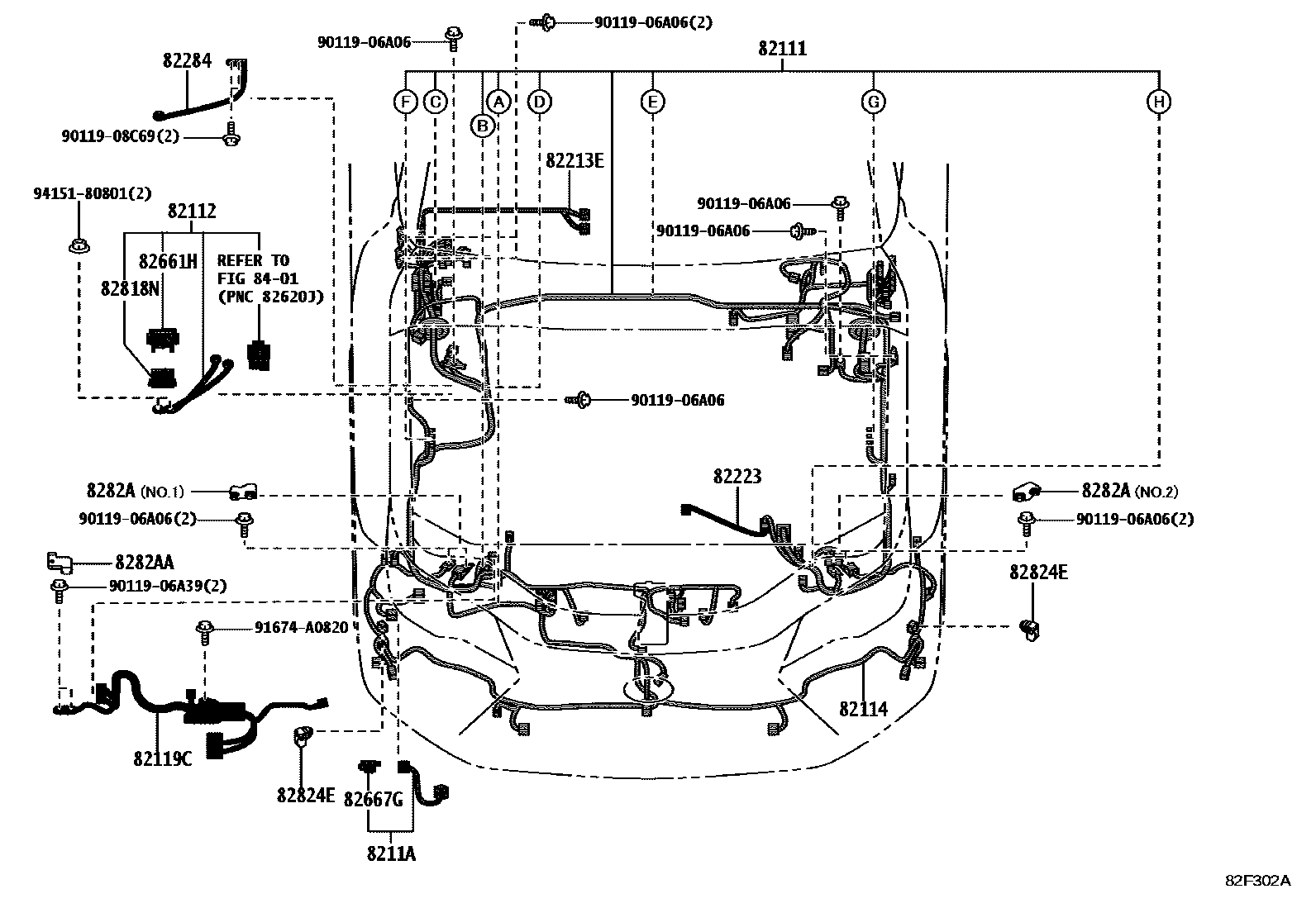

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82115-60L60i202112-202211

main82115-60L61i202211-202411

main82115-60L62i202411

main82111-6BR60supersedes 82111-6BQ30i202411

ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

main82111-6BR90supersedes 82111-6BQ30i202411

KOREA SPEC&ADVANCED PARK-WITH

82112WIRE, ENGINE ROOM, NO.2

main82112-60B60i202112-202411

82114WIRE, ENGINE ROOM, NO.4

main82114-60420i202112-202411

main82114-60700i202411

ADVANCED PARK-WITH

main82114-60710i202411

CANADA SPEC&ADVANCED PARK-WITH

main82114-60L60supersedes 82114-60421i202411

CANADA SPEC

main82114-60L70i202411

CANADA SPEC&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

main82114-60L80i202411

ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

82119CWIRE, ENGINE ROOM, NO.5

main82119-60040i202411

main82119-60030i202411

OVER TRAIL PACKAGE

8211AWIRE, ENGINE ROOM, NO.6

main8211A-60010supersedes 8211A-60040i202112-202411

82213EWIRE, HEATER BLOWER

main82213-60210i202411

82223WIRE, SWITCH

main82223-60J10i202411

main82223-60800supersedes 82223-60J20i202501

MEXICO SPEC

82284WIRE, EARTH

main82284-60210i202411

main82284-60320i202411

82661HCOVER, RELAY BLOCK

main82661-60480i202411

82667GHOLDER, CONNECTOR, NO.22

main82666-60N70i202112-202411

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-6AP20i202411

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-60Z80i202411

82824CONNECTOR, WIRING HARNESS

main82824-0C150i202310-202411

82824ECONNECTOR, WIRING HARNESS

main82824-60F80×2i202411

KOREA SPEC&LANE KEEPING SYSTEM- WITH(LTA)&ADVANCED PARK-WITH; LANE KEEPING SYSTEM- WITH(LTA & TOUCH & EDSS & L2PT); US OTHER GUAM,SAIPAN&LANE KEEPING SYSTEM- WITH(LTA & TOUCH & EDSS); US OTHER PUERTO RICO&LANE KEEPING SYSTEM- WITH(LTA & TOUCH & EDSS)

8282ACAP, EARTH BOLT, NO.1

main8282A-60020i202112-202411

NO.1

main8282A-60030i202112-202411

NO.2

8282AACAP, EARTH BOLT, NO.2

main8282A-60010i202112-202411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A06

main90119-06A06

9011906A39
