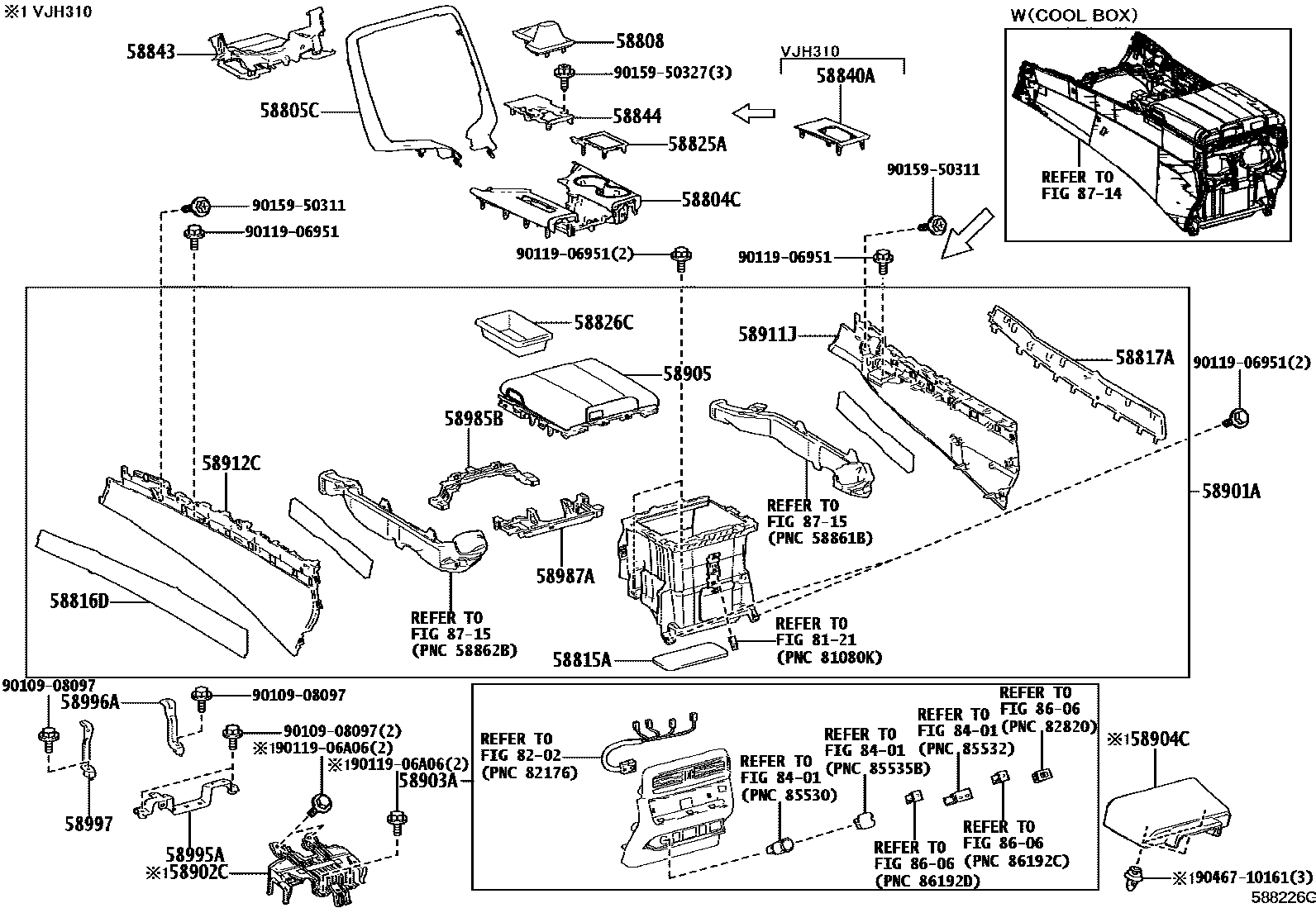

CONSOLE BOX & BRACKET
58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT
DOOR TRIM- ASH(BLACK),SUMI BLACK,TRIM0#,2#,3#,4#
DOOR TRIM-ART WOOD,DK.BROWN,TRIM0#,2#,3#,4#
DOOR TRIM-WALLNUT(DARK BROWN),OPEN PORE,TRIM0#,2#,3#,4#
DOOR TRIM- ALUMINUM(FOR F-SPORT),SILVER,TRIM2#,3#
DOOR TRIM-ASH(BLACK),SUMI BLACK,TRIM0#,2#,3#,4#
DOOR TRIM-ART WOOD,DK.BROWN,TRIM0#,2#,3#,4#; LUXURY PACKAGE&DOOR TRIM-ART WOOD,DK.BROWN,TRIM0#,2#,3#,4#
DOOR TRIM-WALLNUT(DARK BROWN),OPEN PORE,TRIM0#,2#,3#,4#
F-SPORT&DOOR TRIM-ALUMINUM(FOR F-SPORT),SILVER,TRIM2#,3#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#,3#,4#
58815ACARPET, CONSOLE BOX
"EXECUTIVE"&COOL BOX-WITH; COOL BOX-WITH
58816DINSERT, CONSOLE BOX, FRONT NO.1
"EXECUTIVE"&COOL BOX-WITH,BLACK,TRIM2#; BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
"EXECUTIVE"&COOL BOX-WITH,CRIMSON,TRIM30; COOL BOX-WITH,CRIMSON,TRIM30; CRIMSON,TRIM30
"EXECUTIVE"&COOL BOX-WITH,RED,TRIM31; COOL BOX-WITH,RED,TRIM31; RED,TRIM31
"EXECUTIVE"&COOL BOX-WITH,HAZEL,TRIM4#; COOL BOX-WITH,HAZEL,TRIM4#; HAZEL,TRIM4#
"EXECUTIVE"&COOL BOX-WITH,DK.SEPIA,TRIM0#; COOL BOX-WITH,DK.SEPIA,TRIM0#; DK.SEPIA,TRIM0#
"EXECUTIVE",SUNFLARE BROWN,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
"EXECUTIVE"&COOL BOX-WITH,BLACK,TRIM2#; BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
"EXECUTIVE"&COOL BOX-WITH,CRIMSON,TRIM30; COOL BOX-WITH,CRIMSON,TRIM30; CRIMSON,TRIM30
"EXECUTIVE"&COOL BOX-WITH,RED,TRIM31; COOL BOX-WITH,RED,TRIM31; RED,TRIM31
"EXECUTIVE"&COOL BOX-WITH,HAZEL,TRIM4#; COOL BOX-WITH,HAZEL,TRIM4#; HAZEL,TRIM4#
"EXECUTIVE"&COOL BOX-WITH,DK.SEPIA,TRIM0#; COOL BOX-WITH,DK.SEPIA,TRIM0#; DK.SEPIA,TRIM0#
"EXECUTIVE",SUNFLARE BROWN,TRIM4#
58825APOCKET, CONSOLE BOX
WIRELESS CHARGER-WITH(FRONT ONLY)
WIRELESS CHARGER-WITH(FRONT ONLY)
"EXECUTIVE"&WIRELESS CHARGER-WITH(FRONT & REAR); WIRELESS CHARGER-WITH(FRONT ONLY)
58826CPOCKET, CONSOLE BOX, LOWER
"EXECUTIVE"&COOL BOX-WITH; COOL BOX-WITH
58840ACOVER ASSY, SHIFTING HOLE
58843BEZEL, SHIFTING HOLE
KOREA SPEC&ADVANCED PARK-WITH
58844BEZEL, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
"EXECUTIVE"&COOL BOX-WITH,BLACK,TRIM2#; BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
"EXECUTIVE"&COOL BOX-WITH,CRIMSON,TRIM30; COOL BOX-WITH,CRIMSON,TRIM30; CRIMSON,TRIM30
"EXECUTIVE"&COOL BOX-WITH,RED,TRIM31; COOL BOX-WITH,RED,TRIM31; RED,TRIM31
"EXECUTIVE"&COOL BOX-WITH,HAZEL,TRIM4#; COOL BOX-WITH,HAZEL,TRIM4#; HAZEL,TRIM4#
"EXECUTIVE"&COOL BOX-WITH,DK.SEPIA,TRIM0#; COOL BOX-WITH,DK.SEPIA,TRIM0#; DK.SEPIA,TRIM0#
"EXECUTIVE",BLACK,TRIM2#
"EXECUTIVE",SUNFLARE BROWN,TRIM4#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
LUXURY PACKAGE&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM0#,2#,3#,4#
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#,4#
REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM0#,2#,3#,4#
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#,4#
58904CPANEL SUB-ASSY, CONSOLE REAR END, NO.2
BLACK,TRIM0#,2#,3#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
"EXECUTIVE"&COOL BOX-WITH,BLACK,TRIM2#; BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
"EXECUTIVE"&COOL BOX-WITH,CRIMSON,TRIM30; COOL BOX-WITH,CRIMSON,TRIM30; CRIMSON,TRIM30
"EXECUTIVE"&COOL BOX-WITH,RED,TRIM31; COOL BOX-WITH,RED,TRIM31; RED,TRIM31
"EXECUTIVE"&COOL BOX-WITH,HAZEL,TRIM4#; COOL BOX-WITH,HAZEL,TRIM4#; HAZEL,TRIM4#
"EXECUTIVE"&COOL BOX-WITH,DK.SEPIA,TRIM0#; COOL BOX-WITH,DK.SEPIA,TRIM0#; DK.SEPIA,TRIM0#
"EXECUTIVE",BLACK,TRIM2#
"EXECUTIVE",SUNFLARE BROWN,TRIM4#
58911JPANEL, BOX SIDE, NO.1
"EXECUTIVE"&COOL BOX-WITH,BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,3#,4#; COOL BOX-WITH,BLACK,TRIM0#,2#,3#,4#
58912CPANEL, BOX SIDE, NO.2
"EXECUTIVE"&COOL BOX-WITH,BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM0#,2#,3#,4#; COOL BOX-WITH,BLACK,TRIM0#,2#,3#,4#
58985BRETAINER, CONSOLE BOX, NO.1
"EXECUTIVE"&COOL BOX-WITH; COOL BOX-WITH
58987ARETAINER, CONSOLE BOX, NO.2
"EXECUTIVE"&COOL BOX-WITH; COOL BOX-WITH
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8606CAMERA & REAR MONITOR DISPLAY
8714HEATING & AIR CONDITIONING - COOLER UNIT
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9010908097
main90109-08097
9011906951
main90119-06951
9011906A06
main90119-06A06
9015950311
main90159-50311
9015950327
main90159-50327
9046710161
main90467-10161
35 parts on this diagram · 2 diagrams in section
