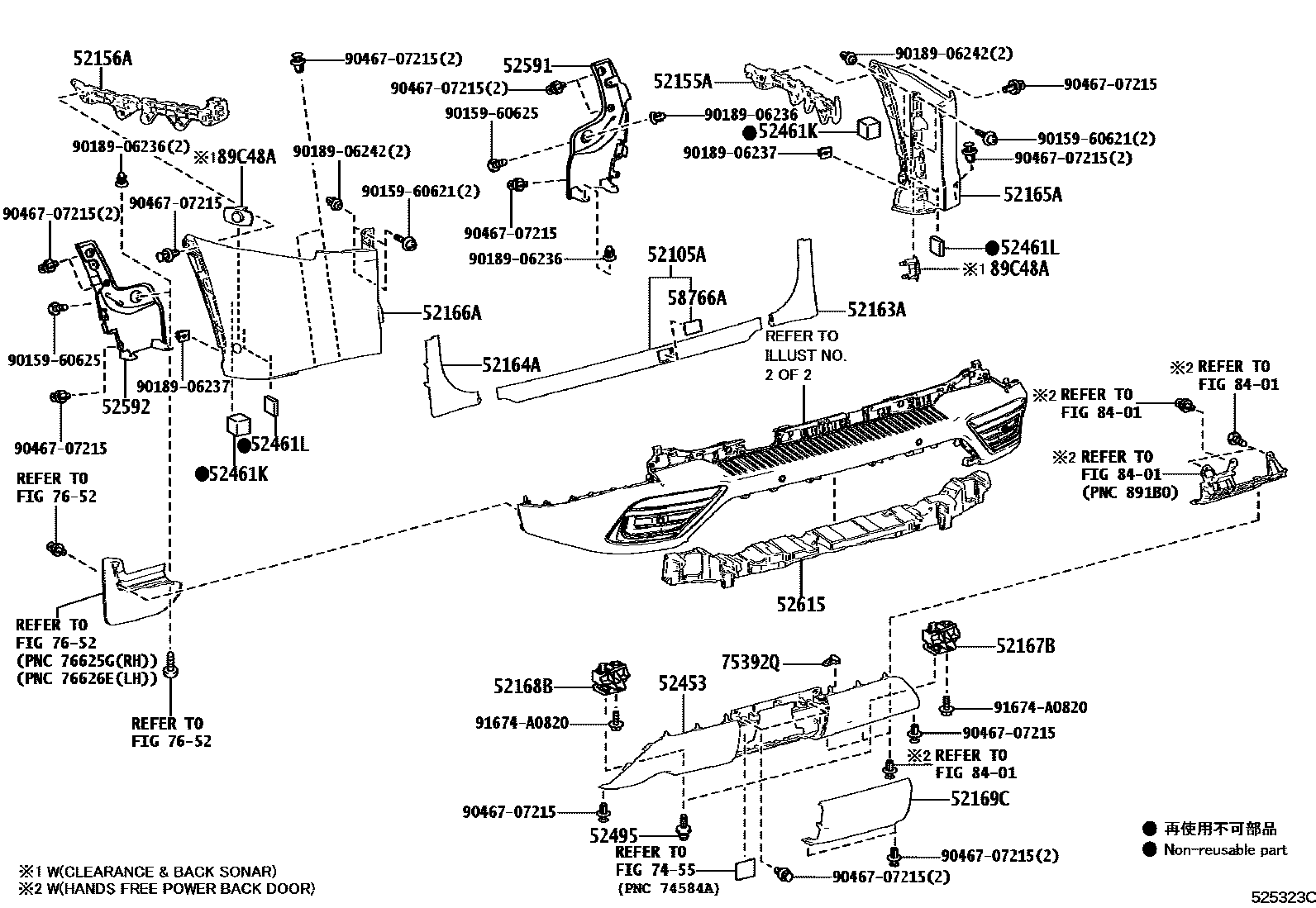

REAR BUMPER & BUMPER STAY

0001 1 0002 1F-SPORT 0003 1 0004 1F-SPORT

52105ABUMPER SUB-ASSY, REAR CENTER

main52105-60060202112-202411

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60160202112-202411

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60160202112-202411

52163APLATE, REAR BUMPER, RH

main52163-60100202112-202411

52164APLATE, REAR BUMPER, LH

main52164-60040202112-202411

52165ACOVER, REAR BUMPER, UPR RH

main52165-60901202112-202411

main52165-60902202411

52166ACOVER, REAR BUMPER, UPR LH

main52166-60901202112-202411

main52166-60902202411

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60050202112-202411

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60050202112-202411

52169CCOVER, REAR BUMPER, LOWER

main52169-60310202112-202310

main52169-60330202310-202411

52453GUARD, REAR BUMPER, CENTER

main52453-60010202112-202411

52461KPAD, REAR BUMPER, NO.1

main52462-53030202112-202411

52461LPAD, REAR BUMPER, NO.2

main52462-60110202112-202411

52495BOLT, REAR BUMPER PAD, NO.1

main52491-60010202112-202411

52591SEAL, REAR BUMPER SIDE, RH

main52591-60070202112-202411

52592SEAL, REAR BUMPER SIDE, LH

main52592-60040202112-202411

52615ABSORBER, REAR BUMPER ENERGY

main52615-60120202112-202411

58766ACOVER, JACK BOX HOLE

main58766-60040202112-202411

7455CAUTION PLATE

→ Go to FIG 74-55

75392QRETAINER, OUTSIDE MOULDING, NO.2

main75392-35220202112-202411

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

9015960621

main90159-60621

9015960625

main90159-60625

9018906236

main90189-06236

9018906237

main90189-06237

9018906242

main90189-06242

9046707215

main90467-07215

91674A0820

main91674-A0820

30 parts on this diagram · 4 diagrams in section
