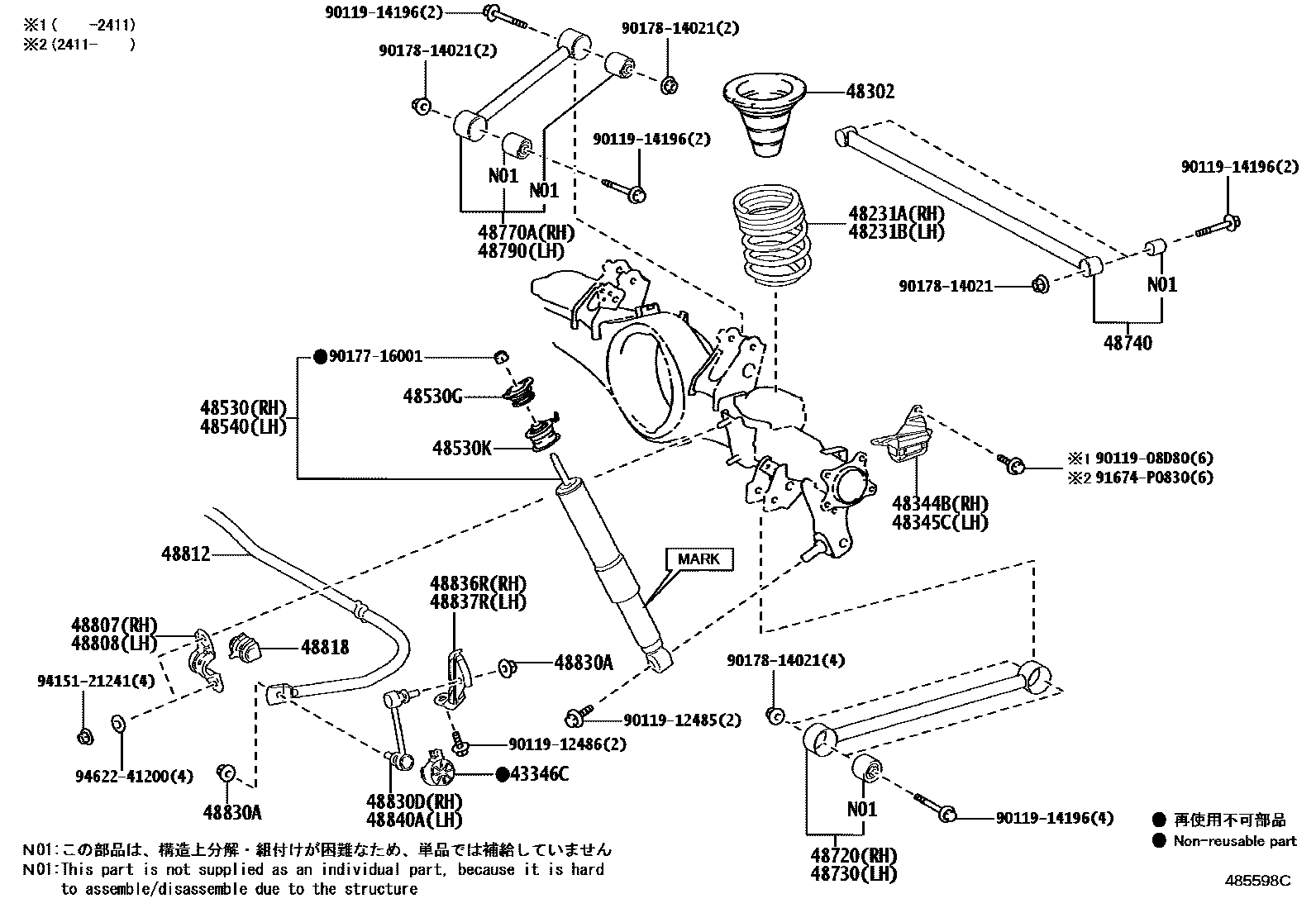

REAR SPRING & SHOCK ABSORBER
43346CPROTECTOR, LOWER BALL JOINT DUST COVER
SUSPENSION-ACTIVE HEIGHT CONTROL
48231ASPRING, COIL, REAR RH
BASE PACKAGE
SUSPENSION-ACTIVE HEIGHT CONTROL
BASE PACKAGE&REAR NO.2 SEAT-WITHOUT; F-SPORT&REAR NO.2 SEAT-WITHOUT
F-SPORT
48231BSPRING, COIL, REAR LH
F-SPORT&SUSPENSION-ACTIVE HEIGHT CONTROL&REAR NO.2 SEAT-WITHOUT
SUSPENSION-ACTIVE HEIGHT CONTROL
BASE PACKAGE&REAR NO.2 SEAT-WITHOUT; F-SPORT&REAR NO.2 SEAT-WITHOUT
F-SPORT
48302SPRING SUB-ASSY, HOLLOW
48344BSTOPPER, BUMPER, REAR RH
48345CSTOPPER, BUMPER, REAR LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60730
MARK 48530-60510,BASE PACKAGE&REAR NO.2 SEAT-WITHOUT
MARK 48530-60570,F-SPORT&SUSPENSION-ACTIVE HEIGHT CONTROL; MARK 48530-60570,SUSPENSION-ACTIVE HEIGHT CONTROL
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60730
MARK 48530-60510,BASE PACKAGE&REAR NO.2 SEAT-WITHOUT
MARK 48530-60570,F-SPORT&SUSPENSION-ACTIVE HEIGHT CONTROL; MARK 48530-60570,SUSPENSION-ACTIVE HEIGHT CONTROL
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
BASE PACKAGE
48807BRACKET, REAR STABILIZER BAR, RH
F-SPORT,TYPE A:REFER ILLUST.
48808BRACKET, REAR STABILIZER BAR, LH
F-SPORT,TYPE A:REFER ILLUST.
48812BAR, STABILIZER, REAR
F-SPORT,TYPE A:REFER ILLUST.
48818BUSH, STABILIZER, REAR
F-SPORT,TYPE A:REFER ILLUST.
48830ANUT(FOR REAR STABILIZER LINK)
F-SPORT
48830DLINK ASSY, REAR STABILIZER, RH
F-SPORT
48836RBRACKET, REAR STABILIZER END, RH
F-SPORT
48837RBRACKET, REAR STABILIZER END, LH
F-SPORT
48840ALINK ASSY, REAR STABILIZER, LH
F-SPORT
9011908D80
main90119-08D80
9011912485
main90119-12485
9011912486
main90119-12486
9011914196
main90119-14196
9017716001
main90177-16001
9017814021
main90178-14021
91674P0830
main91674-P0830
9415121241
main94151-21241
9462241200
main94622-41200
33 parts on this diagram · 3 diagrams in section
