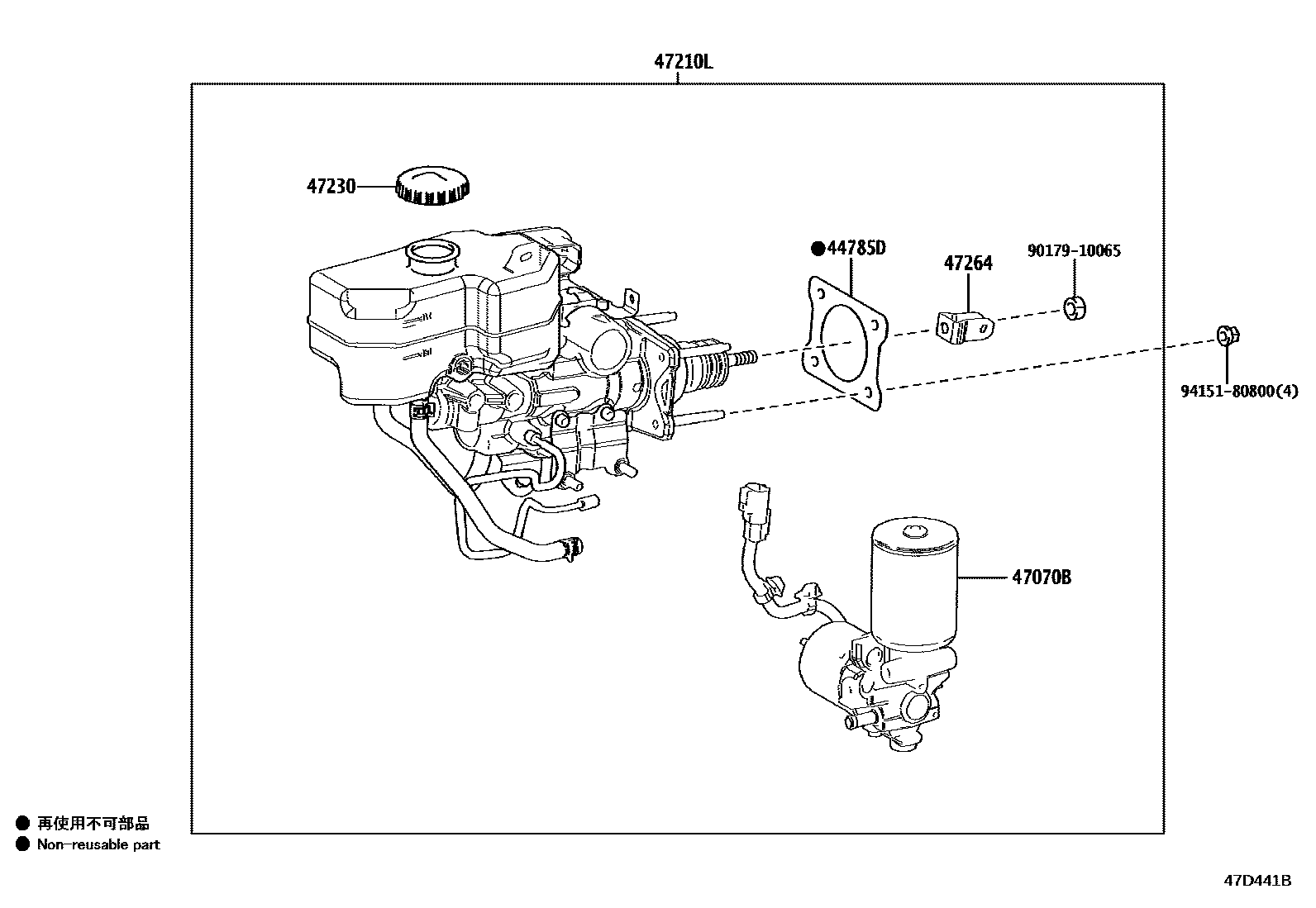

BRAKE MASTER CYLINDER

0001 1 0002 1

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iVJA310,VJH310202411

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-48100iVJA310202112-202310

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60B50iVJA310202112-202310

*614

main47050-60C20iVJA310202310-202411

*614

main47050-60C90iVJA310202411

main47050-60D10iVJH310202411

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iVJA310,VJH310202411

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-63020iVJA310,VJH310202411

9017910065

main90179-10065

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
