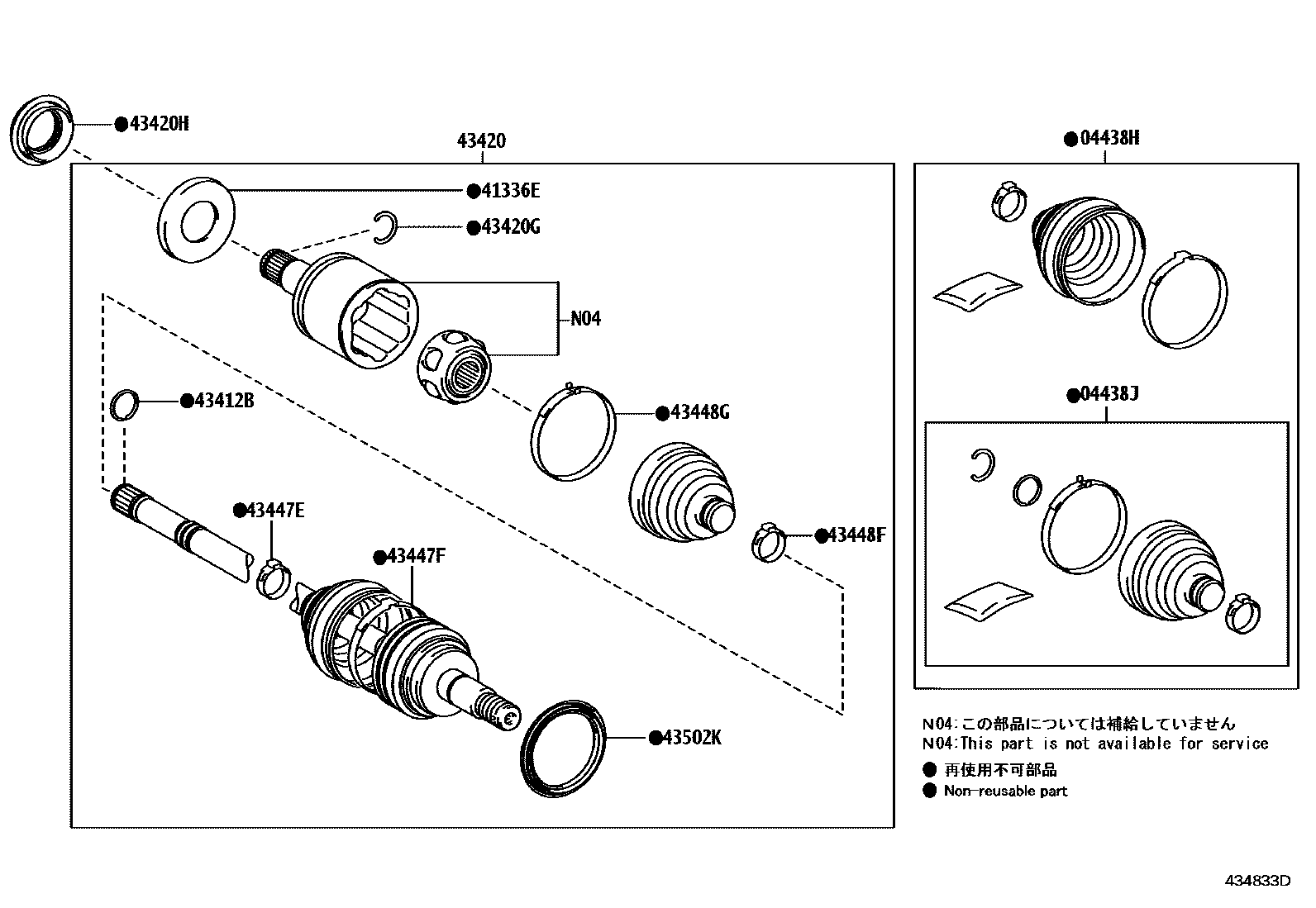

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-60160iVJA310202112-202411

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-60110iVJA310202112-202411

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-60010iVJA310,VJH310202112-202411

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-60030iVJA310,VJH310202112-202411

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-60230iVJA310,VJH310202112-202411

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-39002iVJA310,VJH310202112-202411

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-47040iVJA310,VJH310202112-202411

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-60130iVJA310,VJH310202112-202411

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-60260iVJA310,VJH310202112-202411

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-60130iVJA310,VJH310202112-202411

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-60250iVJA310,VJH310202112-202411

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-94001iVJA310,VJH310202112-202411

12 parts on this diagram · 2 diagrams in section
