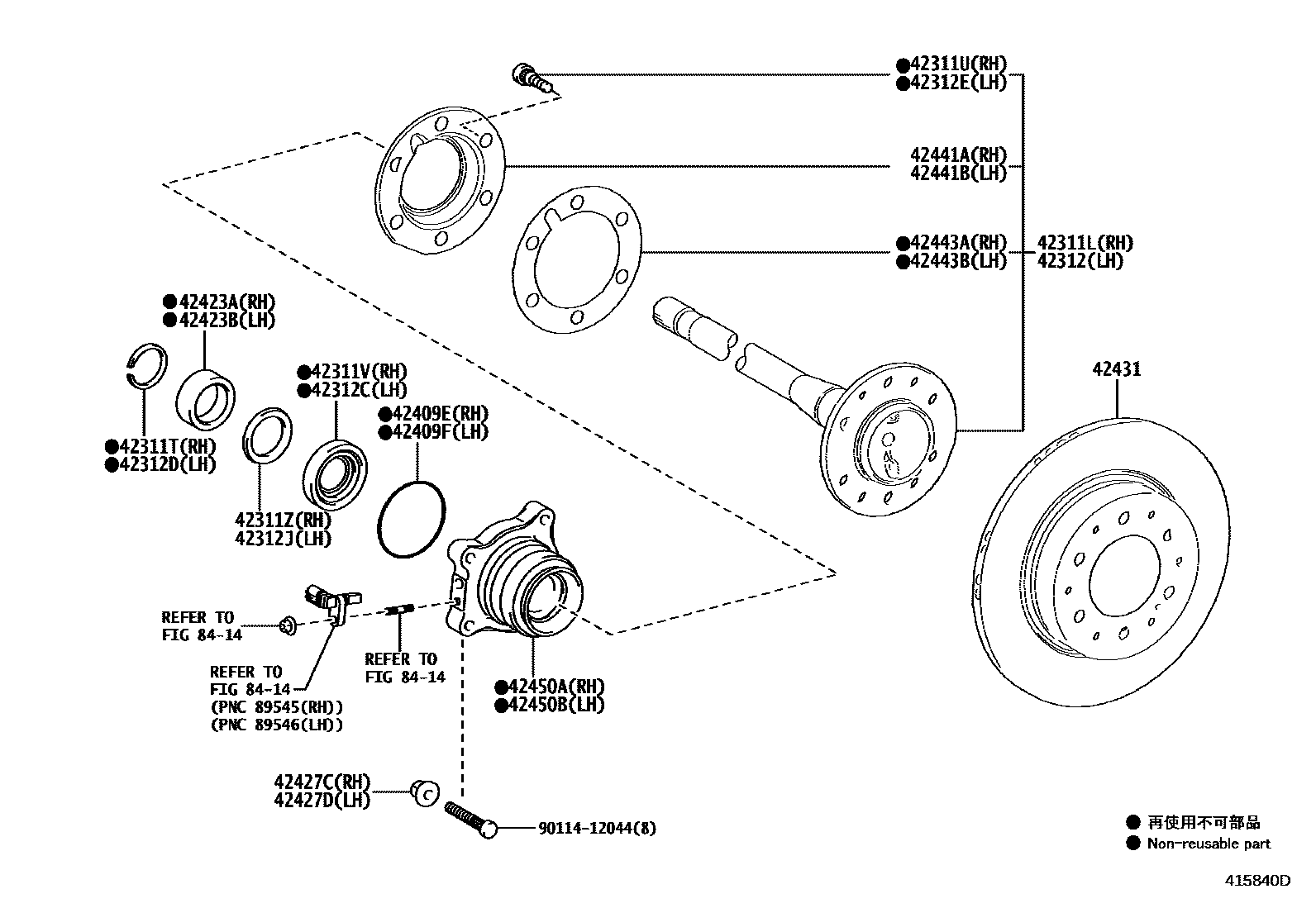

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42301-60050iVJA310,VJH310202411

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-46014iVJA310,VJH310202411

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083×6iVJA310,VJH310202411

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-63001iVJA310,VJH310202411

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-49001iVJA310,VJH310202411

42312SHAFT, REAR AXLE, LH

main42301-60050iVJA310,VJH310202411

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-63001iVJA310,VJH310202411

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-46014iVJA310,VJH310202411

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083×6iVJA310,VJH310202411

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-49001iVJA310,VJH310202411

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-88004iVJA310,VJH310202411

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-88004iVJA310,VJH310202411

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-34040iVJA310,VJH310202411

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-34040iVJA310,VJH310202411

42427CNUT, REAR AXLE BEARIG LOCK, RH

main94151-21201×4iVJA310,VJH310202411

42427DNUT, REAR AXLE BEARIG LOCK, LH

main94151-21201×4iVJA310,VJH310202411

42431DISC, REAR

main42431-60350×2iVJA310,VJH310202411

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-60070iVJA310,VJH310202411

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-60070iVJA310,VJH310202411

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-60030iVJA310,VJH310202411

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-60030iVJA310,VJH310202411

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-60080iVJA310,VJH310202411

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-60040iVJA310,VJH310202411

8414ABS & VSC

→ Go to FIG 84-14

9011412044

main90114-12044

25 parts on this diagram · 1 diagram in section
