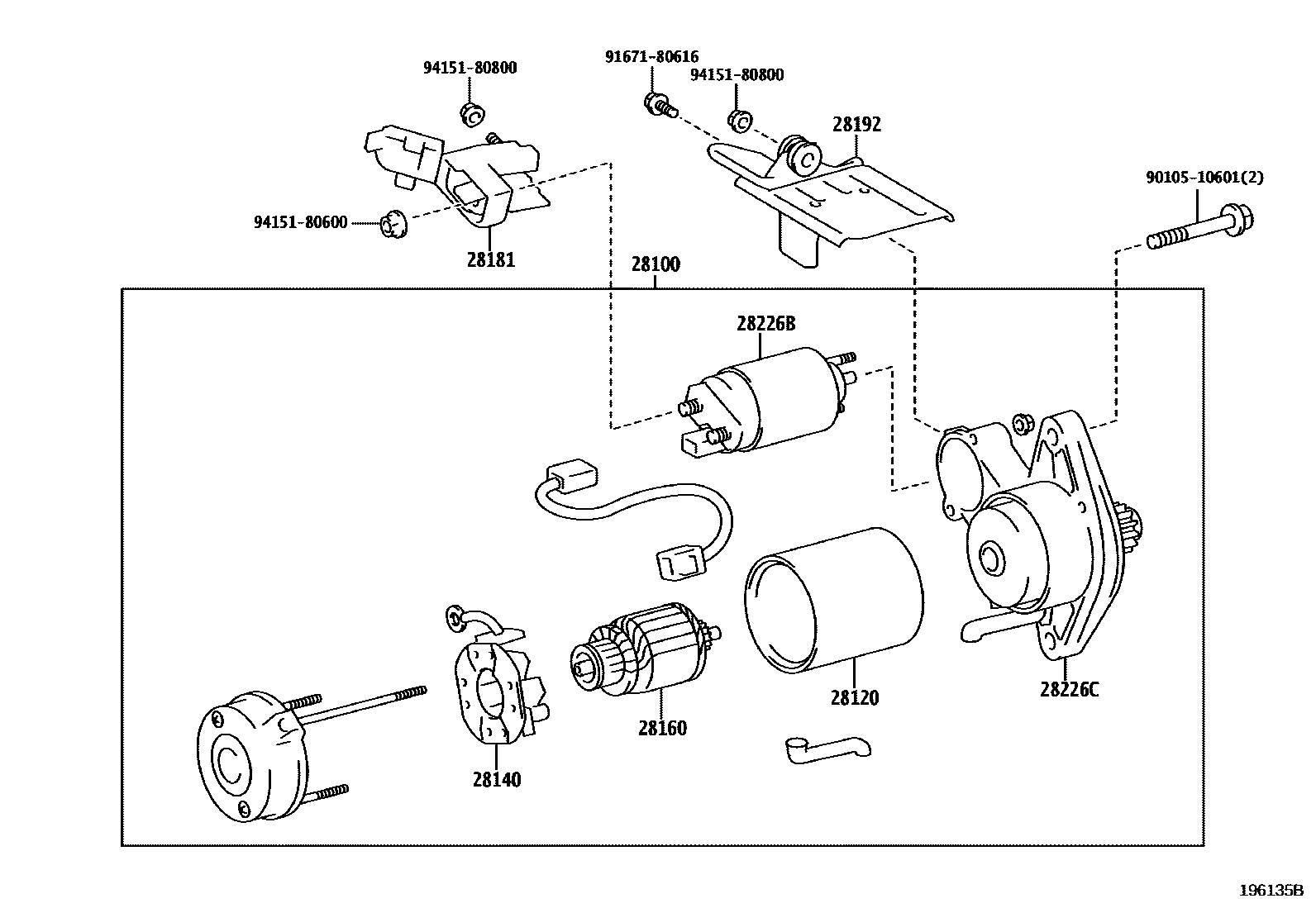

STARTER

0001 112V 1.6KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-70090iV35AFTS..VJH310202411

12V 1.7KW

main28100-70100iV35AFTS..VJA310202411

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-70100iV35AFTS..VJA310202411

28140HOLDER ASSY, STARTER BRUSH

main28140-70100iV35AFTS..VJA310202411

28160ARMATURE ASSY, STARTER

main28160-21100iV35AFTS..VJA310202411

28181TERMINAL, STARTER

main28181-70011iV35AFTS..VJA310,VJH310202411

28192COVER, STARTER

main28192-70020iV35AFTS..VJA310,VJH310202411

28226BSTARTER KIT, REPAIR SERVICE

main28226-70080iV35AFTS..VJA310202411

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-70100iV35AFTS..VJA310202411

9010510601

main90105-10601

9167180616

main91671-80616

9415180600

main94151-80600

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
