ALTERNATOR

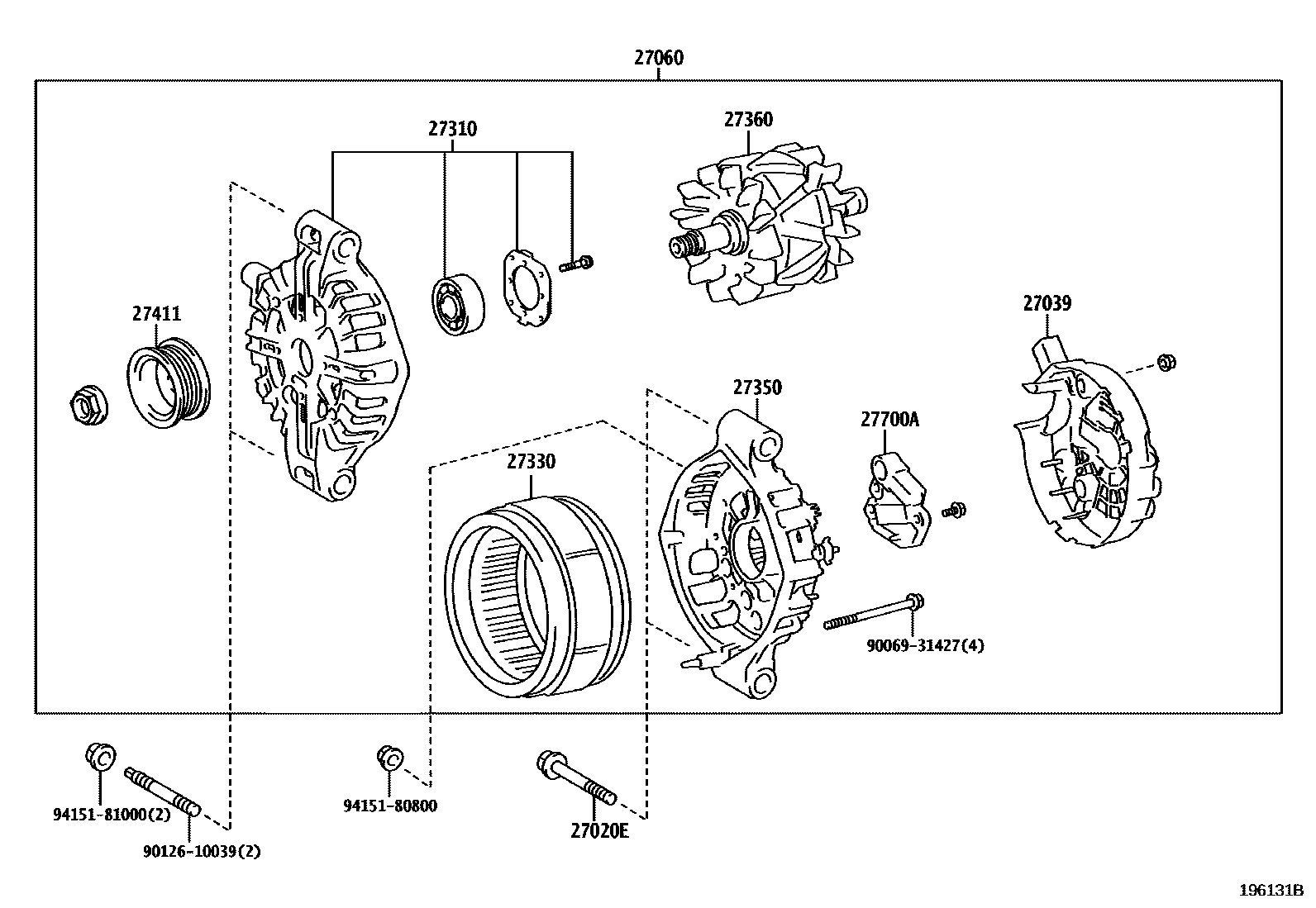

Parts diagram

27020EBOLT(FOR ALTERNATOR)

main91552-81070i202112-202411

27039COVER, ALTERNATOR REAR END

main27039-0W030i202112-202411

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0W040i202112-202310

12V 180A

main27060-0W070i202310-202411

12V 180A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0W030i202112-202310

main27310-0W070i202310-202411

27330ROTOR ASSY, ALTERNATOR

main27330-0W040i202112-202310

main27330-0W070i202310-202411

27350FRAME ASSY, RECTIFIER END

main27350-0W030i202112-202310

main27350-0W070i202310-202411

27360COIL ASSY, ALTERNATOR

main27410-0W020i202112-202310

27411PULLEY, ALTERNATOR

main27411-0W040i202112-202310

main27411-0W070i202310-202411

27700AREGULATOR ASSY, GENERATOR

main27700-0W030i202112-202310

main27700-F0100i202310-202411

9006931427

main90069-31427

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

13 parts on this diagram · 3 diagrams in section
